3-12 Weinig Tools Tech. Dok. / WNW 850 02 / 02.2005.A / © MICHAEL WEINIG AG
Normal clamping

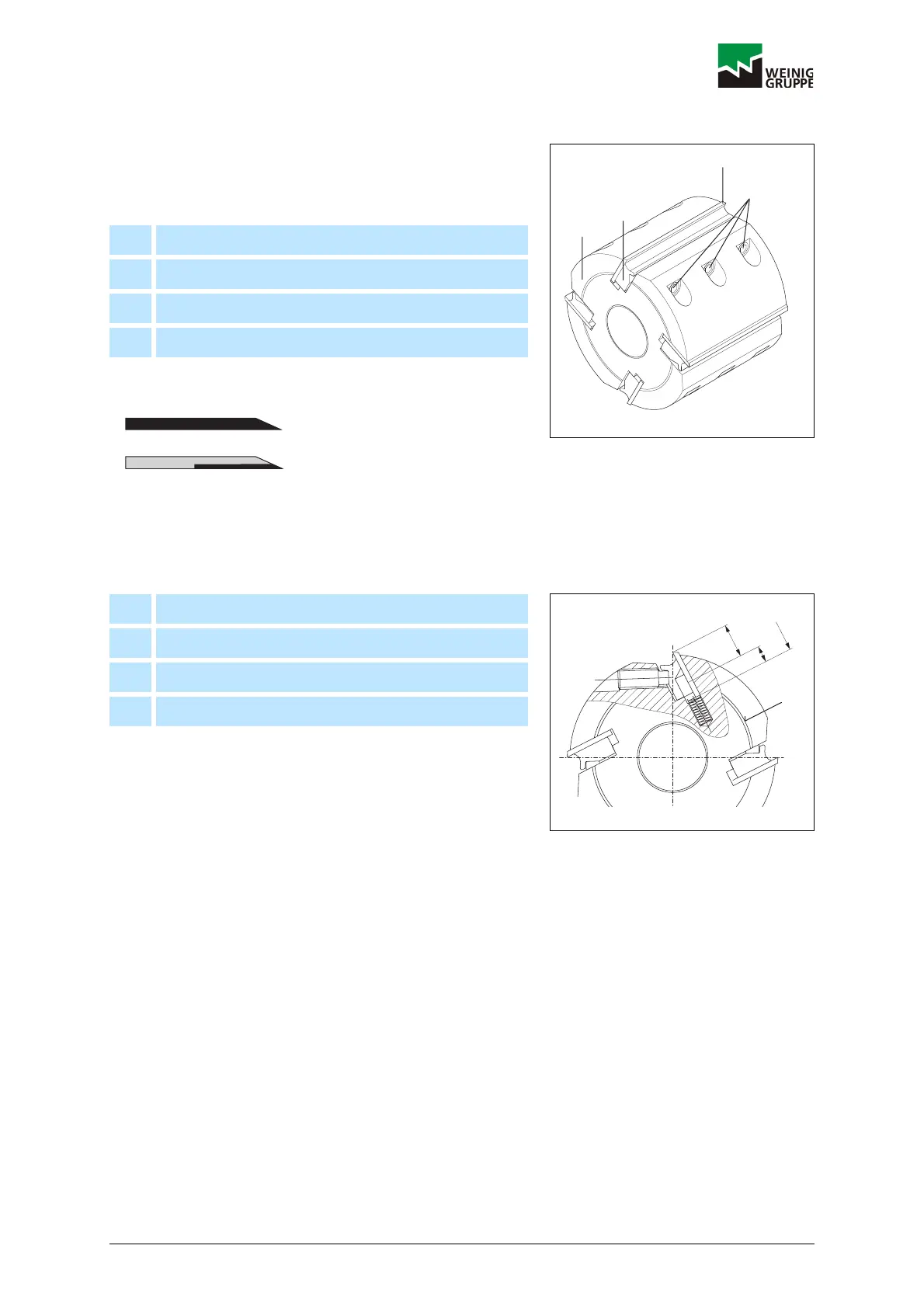

3.4.4 Mechanical design of the tool
Cutterhead with planing knives. Solid body of steel or
aluminium. Robust, reliable construction for low-noise,
vibration-free operation.
3.4.5 Securing the cutters and minimum clamping
length
1 Body
2 Clamping ledge
3 Clamping screws
4 Planing knife
Solid
Tipped
a Cutter position when new
b Minimum cutter clamping length
c Max. adjustment of a resharpened cutter
1 Marking for minimum clamping length
1
3
2
4
DOKW0063
DOKW0035
a
b
c
1
