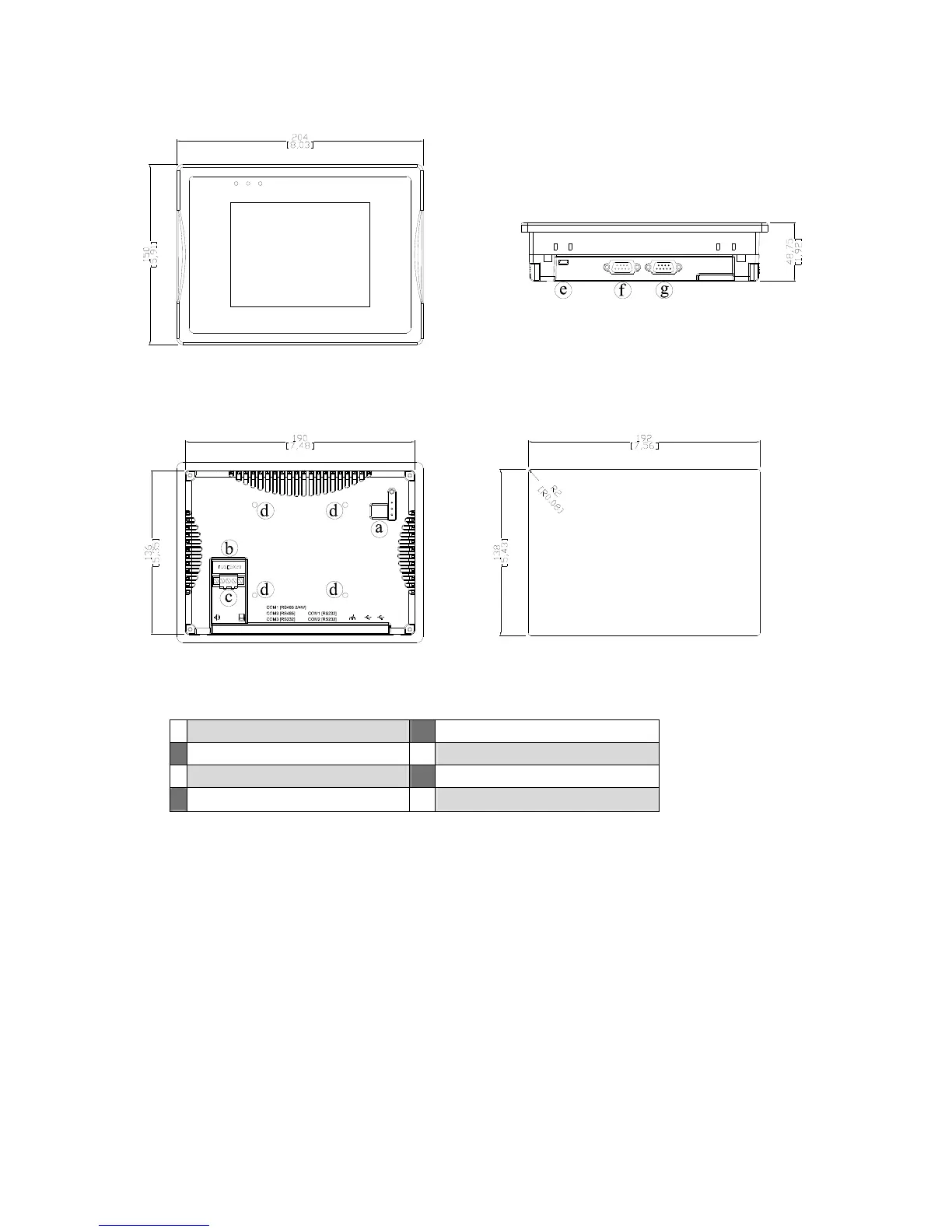

4.0 Dimensions of MT-6056i
COM CPU PWR
Cutout dimensions:
MT-6056i
192mm [7.56"] W x 138mm [5.43"] H
Front View
Rear View
Bottom View
a DIP SW & Reset button e USB Client port
b. Fuse f Com1[RS232]
c. Power connector g Com1[RS485]
d. VESA 75mm screw holes
