Weiser PREMIS - Install the Latch and Strike

3 / 11 © 2017 Spectrum Brands, Inc.
USA: 1-800-677-5625 • Canada : 1-800-501-9471
www.weiserlock.com
A
A
N (2x)
A
A
B
B
B
B
Q (2x)
R (2x)
C
Longer screws, Q,
install closest to
the door jamb.
door frame
A B
C
D
Is the door edge chiseled?
Is the D-shaped hole centered in the door hole?
Which latch are you installing?Hold the latch in front of the door hole, with the latch
face lush against the door edge.
YES
YES
NO
NO
Use latch “A”. If the
latch bolt is not already
extended, extend the
latch bolt as shown.
No adjustment is required.
Proceed to next step.
D-shaped hole centered D-shaped hole NOT centered
Rotate latch face as
shown to extend latch.
“UP” is
on top
“UP” is
on top
wood
block
Use latch “B”. If the
latch bolt is not already
extended, extend the
latch bolt as shown.
Latch “A” Latch “B”
E

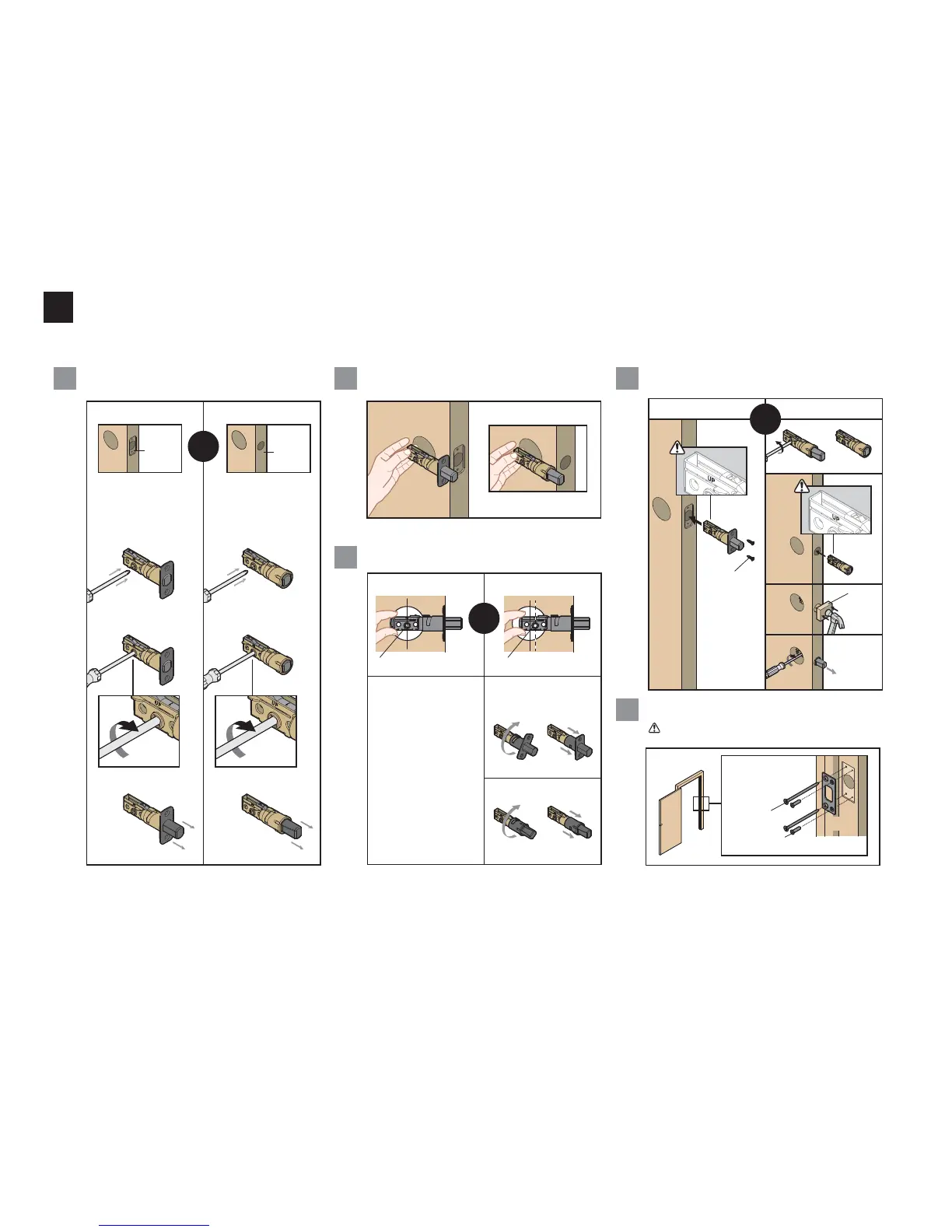

Install strike on the door frame.
Make sure the hole in the door frame is drilled a
minimum of 1" (25 mm) deep.
or
chiseled
not
chiseled
or
or
Note: The longer screws, Q, (3" / 76 mm) must be used
to maintain highest security.
2
Install the latch and strike
