www.welbilt.com 800-225-9916 7

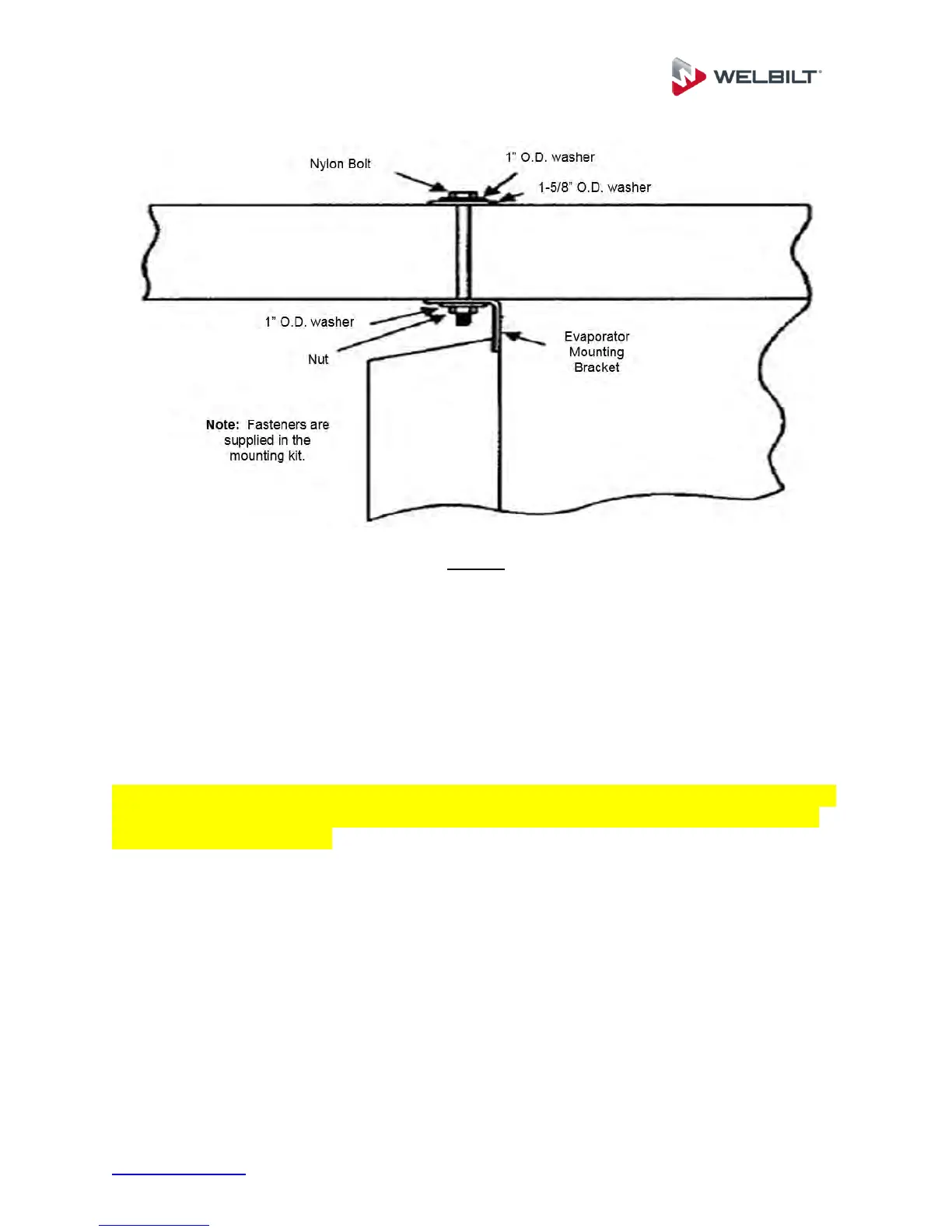

Evaporator Coil Mounting Diagram
Wiring
All electrical connections and routing must comply with local and national codes. Do not
modify the factory installed wiring without written factory approval. The field wiring must
enter through the knockouts provided. Refer to the nameplate on the condensing or
evaporator coil to determine the proper electrical power supply. Wire type should be of
copper conductor only and properly sized to handle the electrical load. The unit and coil
must be properly grounded. Condensing unit wiring diagrams are located inside this
installation manual and attached inside the electrical box cover. Evaporator coil wiring
diagrams are located inside this installation manual and inside the evaporator cover.
NOTE: CAT-5 cables, which are included, need to be routed from the evaporators
to the network router for access to the internet. Please contact the end user for
proper connection point.
