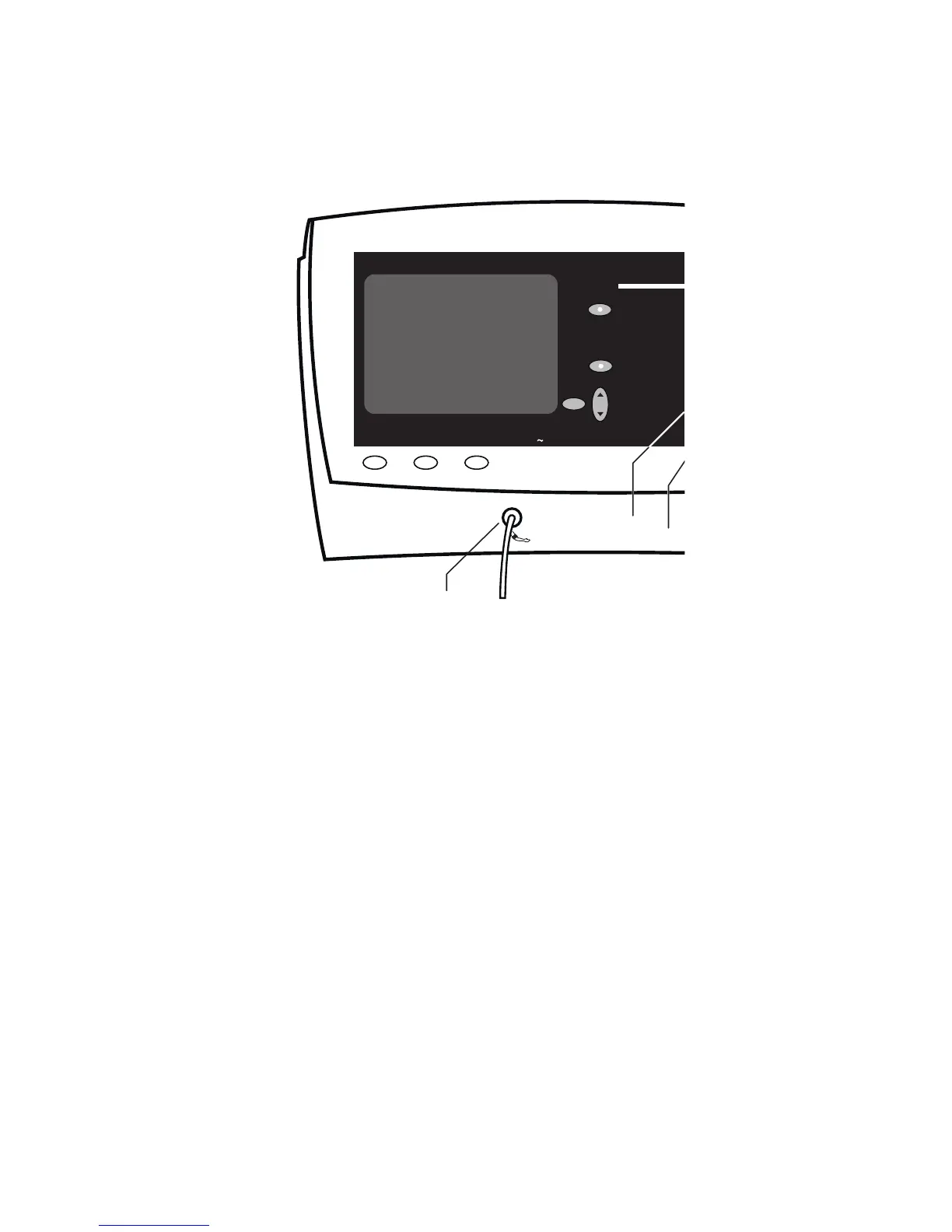

Atlas Monitor showing NIBP displays, controls and tubing
connector
Setting alarm limits - To set the Systolic and
Diastolic alarm limits, use the
Select and Set
buttons on the right side of the monitor to follow
these steps:
• Press the
Select button to cycle through
SpO
2
LO, then Systolic HI and LO, and
Diastolic
HI and LO.
• Each push of
Select moves you to the next
limit. Stop at the limit you want to set. The
measurement and the
HI or LO LED will
flash, indicating which limit is being
changed.
• Press the Set button up or down to raise or
lower the alarm limit. (When you come to
the end of the range, the numbers will stop
changing).
• Press the
Select button again to go to the
next limit, or press it several times until
none of the measurements flash and no
HI or
LO LEDs are lit. The instrument is now in
its normal measurement mode. (If you do
not press any button for 10 seconds, the
instrument will automatically revert to its
normal measurement mode).
Note: If the language setting is configured to
Chinese and the alternate BP field to kPa, the
blood pressure will be displayed in kPa on the
screen, but the Systolic and Diastolic readings
on the right side of the monitor will be displayed
in mmHg. When setting the alarm limits, the
HI
and
LO alarm limits will be displayed in mmHg
on the right side of the monitor and in kPa on the
screen.
