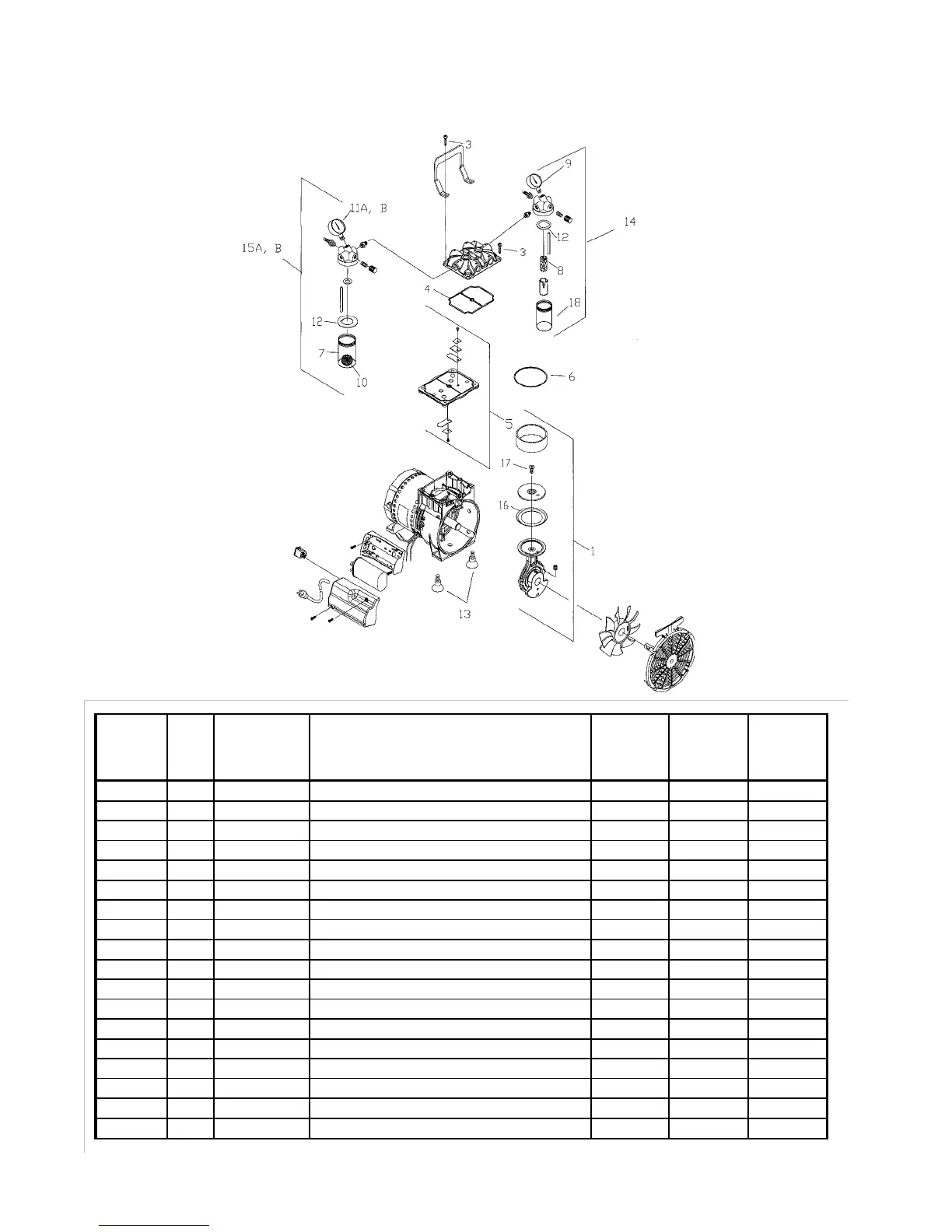

Section 11 EXPLODED VIEW AND PARTS LIST
11.10 DRAWING AND PARTS LIST FOR 2546
Item
Number QTY Part Number Description
Service Kit
2546K-03
Seal
Service Kit
2546K-04
Feet
Service Kit
2500K-04
1 1 2546K-01 Connecting Rod Assembly 1
3 4 Note 1 Head Screw 4
4 1 Note 1 O-Ring Head 1 1
5 1 2567K-02 Valve Plate Assembly 1
6 1 Note 1 O-Ring Cylinder 1 1
7 2 Note 1 Jar Plastic 1 1
8 1 Note 1 Filter Element 1 1
9 1 71-1292 Pressure Gauge
10 1 Note 1 Ball 1 1
11A 1 71-1295 Vacuum Gauge 2546B-01
11B 1 71-1296 Vacuum Gauge 2546C-02
12 2 Note 1 Gasket 1 1
13 4 Note 1 Rubber Suction Feet 4
14 1 2522K-06 Pressure Regulator Assembly
15A 1 2522K-05 Vacuum Regulator Assembly 2546B-01
15B 1 2522K-07 Vacuum Regulator Assembly 2546C-02
16 1 Note 1 Piston Cup Seal 1
17 1 Note 1 Retainer Screw 1
