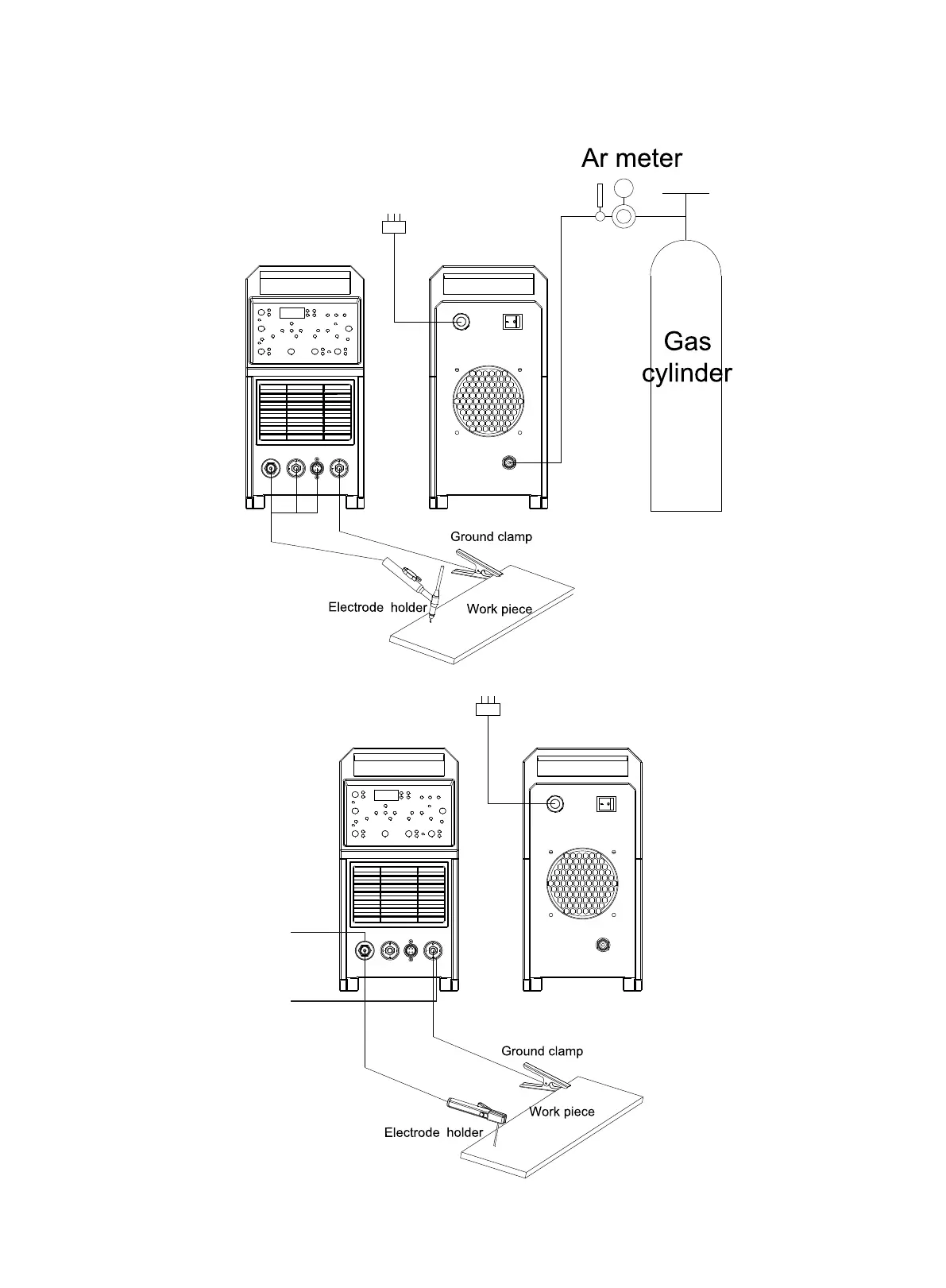

Blow is setup for MMA Stick welding
Installation diagram
This is NEGATIVE ground
clamp here
This is the PLUS connector
Electrode holder goes here
not ground clamp
13
