1.3 Specifications

The specifications listed in this section are generalized for this equipment. Welker can modify the equipment according to your
company's needs. Please note that the specifications may vary depending on the customization of your equipment.
Table 1: inLoop™ ACE Specifications
Application
Bypass Sampling
Products Sampled
Liquids Compatible With the Materials of Construction (See Figure 1)
Materials of Construction
316/316LStainless Steel Wetted Parts, Anodized Aluminum Non-Wetted Parts,
PTFE, and Viton®
Others Available
Maximum Allowable
Operating Pressure
FNPT or VCO: 1480 psig @ -20 °F to 100 °F (102 barg @ -28 °C to 37 °C)
150 ANSIStainless Steel: 275 psig @ -20 °F to 100 °F (18 barg @ -28 °C to 37 °C)
300 ANSIStainless Steel: 720 psig @ -20 °F to 100 °F (49 barg @ -28 °C to 37 °C)
600 ANSIStainless Steel: 1440 psig @ -20 °F to 100 °F (99 barg @ -28 °C to 37 °C)
Fast Loop Connection
1" FNPT (Standard)
1" VCOFittings
1" – 150, 300, or 600 ANSIFlanges
Sample Outlet Connection
¼" FNPT
Motor Housing Actuation Ports
¼" FNPT
½" FNPT
³⁄₈" FNPT (Standard)
Utility Requirement Hydraulic or Pneumatic Supply for Motor Operation: 5–200 psig (0.3–13.7 barg)
Sample Volume
0.5–5 cc (Adjustable)
Features
External Sample Volume Adjustment
Internal Inlet Check Valve
Internal Outlet CheckValve
Options
External Sand Relief
Panel Mounting Bracket
Purge With Valve

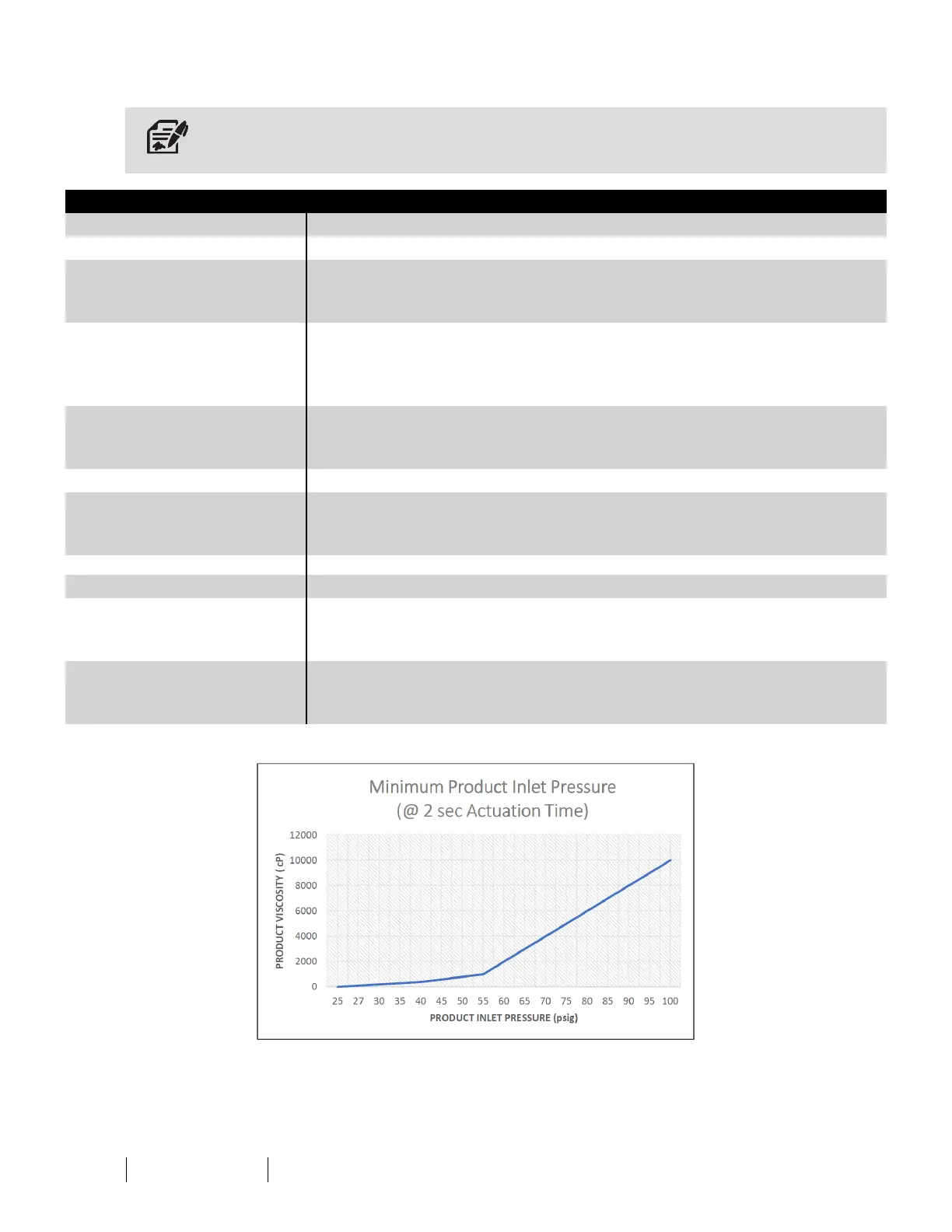

Figure 1: Minimum Product Inlet Pressure Graph
