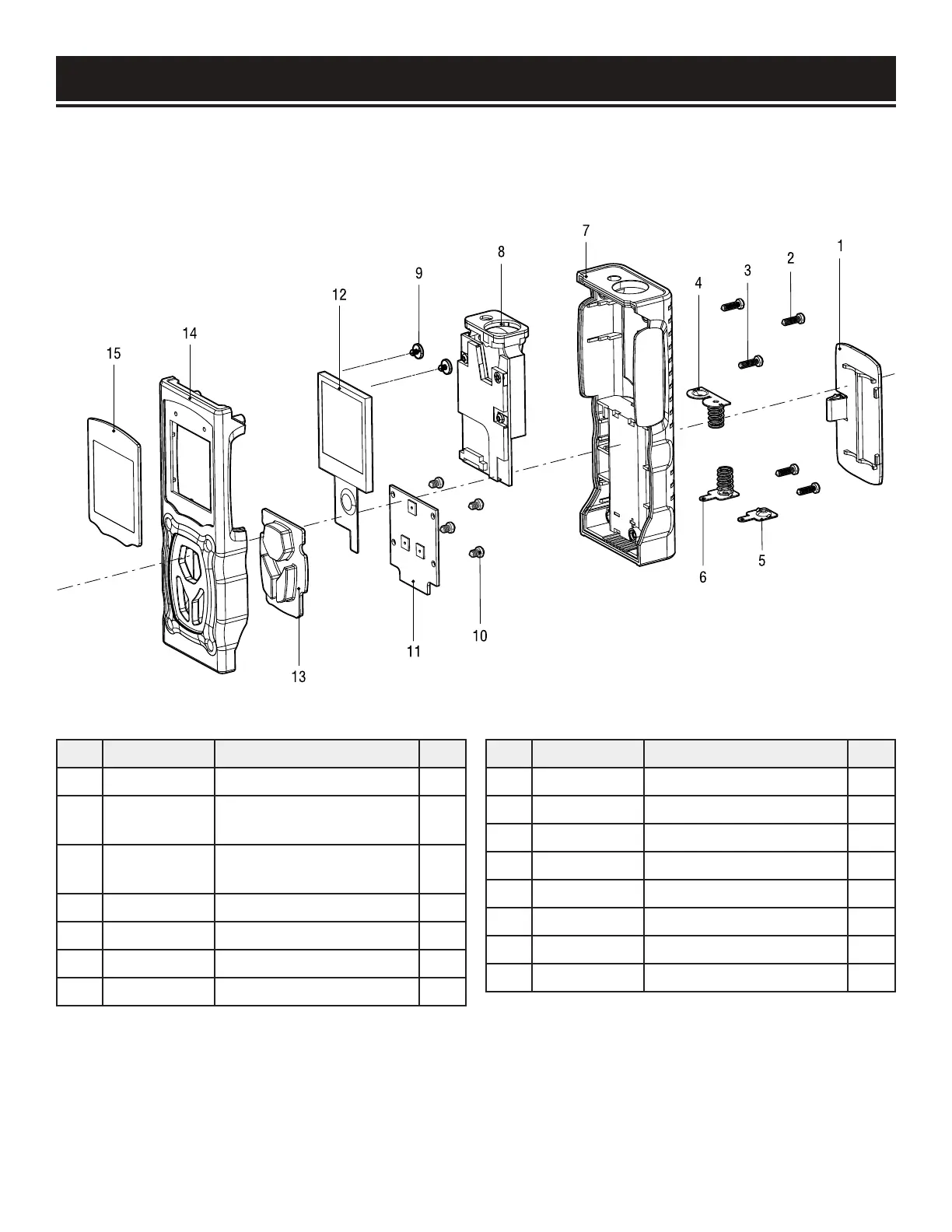

EXPLODED VIEW & PARTS LISTEXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
1 10165-001 Battery Cover 1
2 10165-002
Self-Tapping Screw,
Cross Head
4
3 10165-003
Self-Tapping Screw,
Socket Head
1
4 10165-004 Large Battery Plate 1
5 10165-005 Positive Plate 1
6 10165-006 Negative Plate 1
7 10165-007 Back Cover 1
No. Part No. Description Qty.
8 10165-008 Laser Module 1
9 10165-009 Screw 2
10 10165-010 Cross-Head Screw 4
11 10165-011 PCB 1
12 10165-012 Display Screen 1
13 10165-013 Button Pad 1
14 10165-014 Front Cover 1
15 10165-015 Panel Board 1
