KNOW YOUR LASER DISTANCE MEASURE
DEVICE PURPOSE

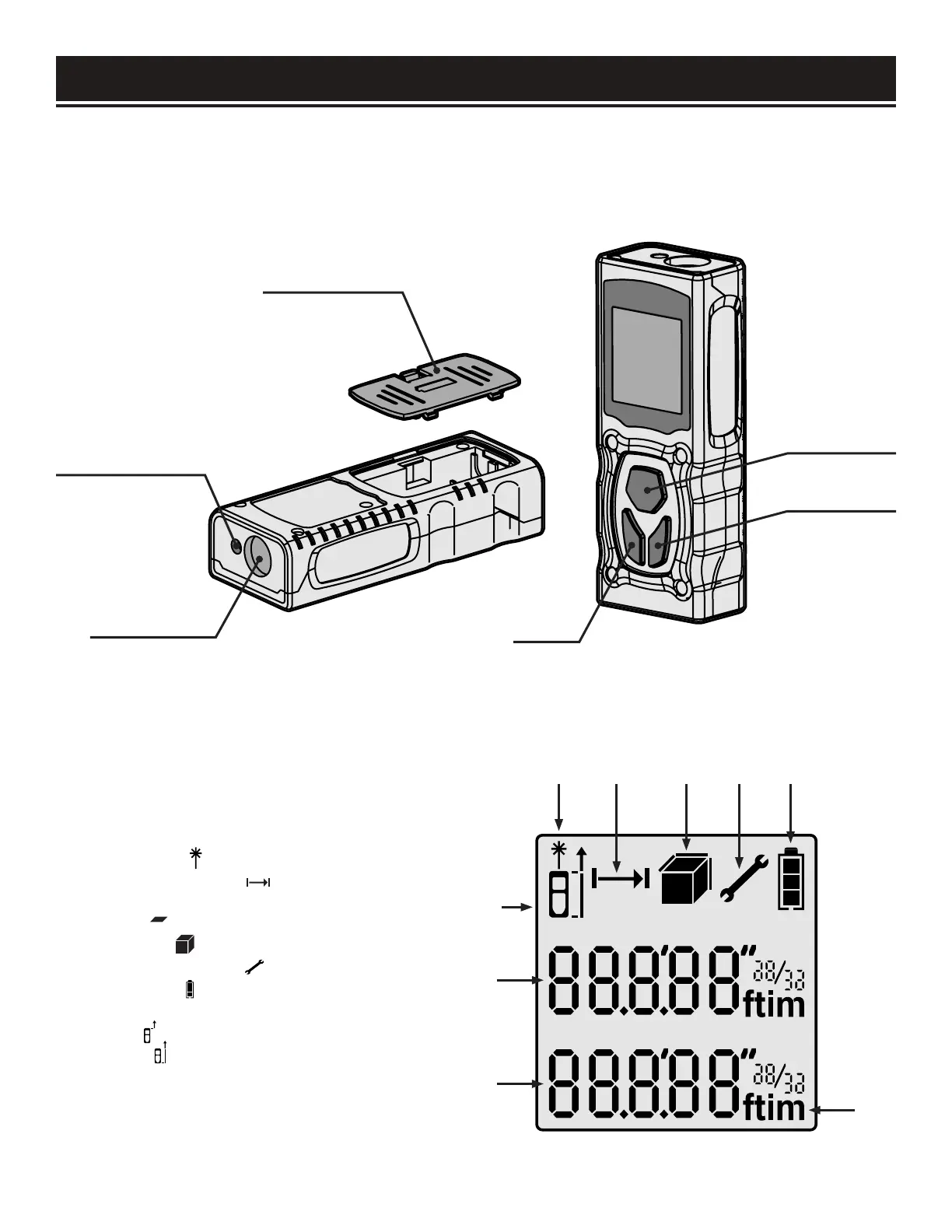

Laser Distance Measures are great for measuring distances, lengths, heights, clearances, areas, and volumes. Refer
to the diagram below to become familiarized with the parts and functions of your Laser Distance Measure.
DISPLAY FUNCTIONS
Use the diagram to the right to learn about the
various icons on your laser distance measure.
A. Laser ON/OFF
B. Length Measurement
C. Area/Volume Measurement
• Area
• Volume
D. Error/Service Needed
E. Battery Level
F. Measurement Reference
• Top
• Base
G. Previous Measurement Value
H. Current Measurement/Area/Volume
I. Unit (m/ft/in/' ")
Laser Beam Outlet
DO NOT POINT AT EYES
Battery Cover
Reception Lens
Mode
Measuring/ON
ON/OFF
A
G
G
H
F
B C D E
To Next Page
