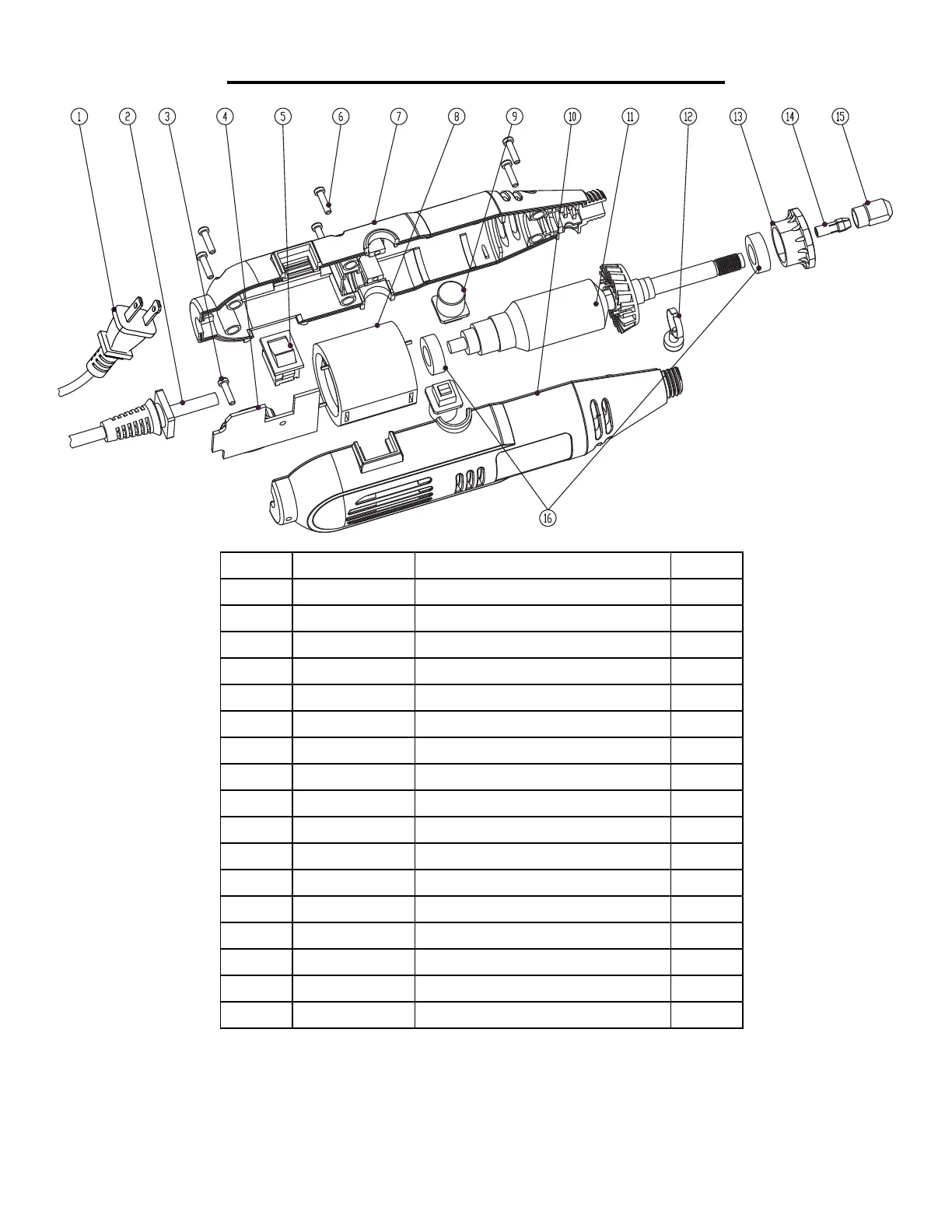

EXPLODED VIEW AND PARTS LIST
No. Part No. Description Qty.
1 23103-001 Power Plug 1
2 23103-002 Cord Sleeve 1
3 23103-003 M3X10 Screw 1
4 23103-004 Circuit Board 1
5 23103-005 Switch 1
6 23103-006 M3X15 Screw 6
7 23103-007 Left Body 1
8 23103-008 Stator 1
9 23103-009 Motor Carbon Brush 2
10 23103-010 Right Body 1
11 23103-011 Rotor 1
12 23103-012 Spindle Lock Button 1
13 23103-013 Nose Cap 1
14 23103-014 Collet 1
15 23103-015 Collet Nut 1
16 23103-016 Bearing 2
17 23103-017 Flex Shaft (Not Pictured) 1
Compatible Rotary Tool Accessories Kits: 150-Piece (Model 230151A), 282-Piece (Model 230282A), 320-Piece
(Model 230321A), 327-Piece (Model 230327A).
Your rotary tool is also compatible with the WEN 2305-KC Keyless Rotary Tool Chuck.
Available at wenproducts.com.
