7
ASSEMBLY
WARNING: Do not attempt to plug in or operate your tool until the entire operator’s manual has been
read and understood. Failure to do so could result in personal injury and damage to the tool.

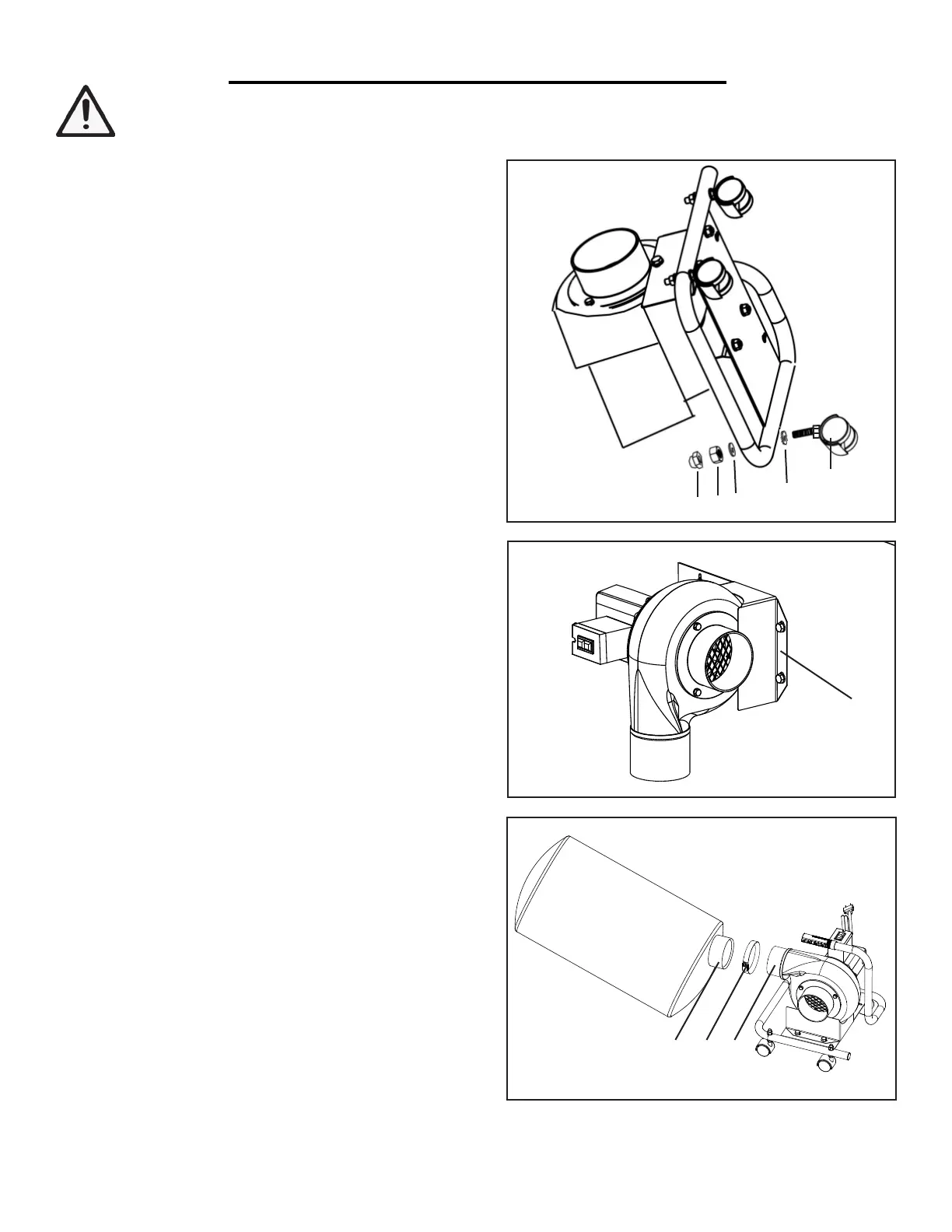

CASTER ASSEMBLY
Your dust collector comes installed on a roller base. In-
stall the casters onto the roller base to be able to move
your dust collector around.
1. Slide the caster (Fig. 1 - 1) through a washer (Fig. 1 - 2)
and one of the holes in the corners of the roller base.
2. Place another washer (Fig. 1 - 3) on the threaded por-
tion of the caster above the roller base.
3. Thread the hex nut (Fig. 1 - 4) onto the caster.
4. Tighten the cap nut (Fig. 1 - 5) onto the caster to secure
it in place.
5. Repeat the steps above to assemble the three remaining
casters.
WALL MOUNTING
Your unit can also be mounted onto the wall. Remove
the roller base. Position the dust collector onto the wall
next to a matching power outlet. Leave enough room on
the bottom for the collection bag. Mount the unit onto
the wall using appropriate nuts and bolts through the four
mounting holes on the mounting bracket (Fig. 2 - 1).
COLLECTION BAG ASSEMBLY
1. Place the clamp (Fig. 3 - 2) over the exhaust port of the
dust collector (Fig. 3 - 1).
2. Place the mouth of the collection bag (Fig. 3 - 3) over
the exhaust port. Then, slide the clamp (Fig. 3 - 2) over the
mouth of the bag.
3. Tighten the clamp using a flat-head screwdriver.
NOTE: Do not remove the safety screen or the inlet. Do-
ing so will alter the airflow and damage the motor.
Fig. 1
Fig. 2
Fig. 3
1
4
5
3
2
2 1
1
3
