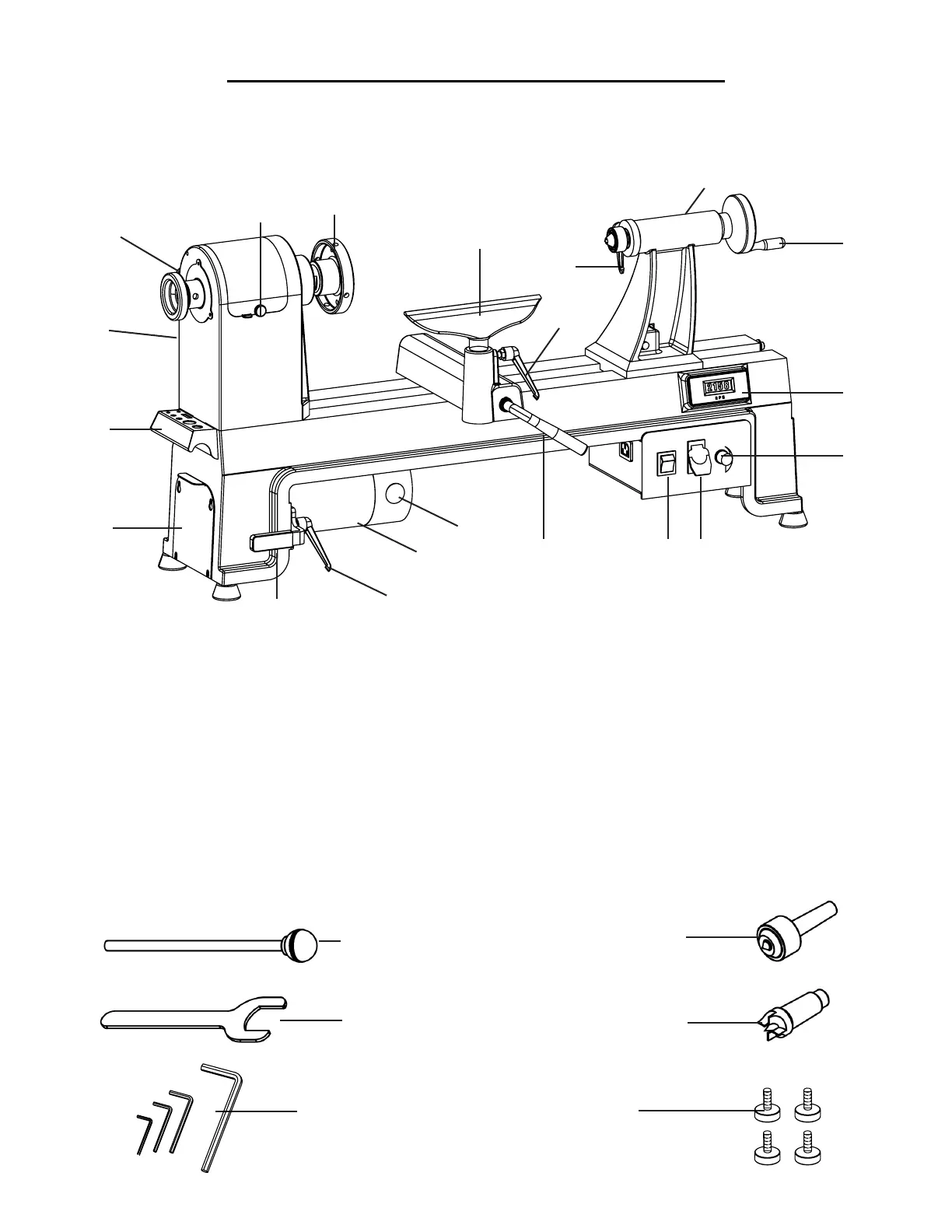

KNOW YOUR WOOD LATHE
Carefully remove the tool and all contents from the packaging. Check all components and compare against the dia-
gram below. If any part is damaged or missing, please contact our customer service at (800) 232-1195, M-F 8-5 CST
or email us at techsupport@wenproducts.com.
Live Center (MT2)
for Tailstock
Spur Center (MT2)
for Headstock
Rubber Feet
Wrench
Knockout Rod
1
2
3
4
5
6
7
8
9
10111214
15
16
17
1. Belt Drive Access Panel Knob
2. Face Plate
3. Tool Rest
4. Tool Rest Locking Handle
5. Quill Locking Handle
6. Tailstock
7. Tailstock Handle
8. Digital RPM Readout
9. Speed Adjustment Knob
10. ON/OFF Switch (with Safety Key)
11. Forward/Reverse Switch
12. Tool Rest Locking Lever
13. Carbon Brush Cap (one on each side)
14. Motor
15. Motor Plate Locking Handle
16. Motor Plate Tensioning Handle
17. Lower Belt Drive Plate
18. Accessory Holder
19. Headstock
20. Spindle Lock (Backside)
18
19
20
Hex Wrench
(3, 4, 5, and 12 mm)
8
13
