GUIDELINES FOR EXTENSION CORDS
Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy
enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting
in loss of power and overheating. The table below shows the correct size to be used according to cord length and
nameplate ampere rating. When in doubt, use a heavier cord. The smaller the gauge number, the heavier the cord.
Make sure your extension cord is properly wired and in good condition. Always replace a damaged extension cord
or have it repaired by a qualified person before using it.
Protect your extension cords from sharp objects, excessive heat and damp/wet areas.
Use a separate electrical circuit for your tools. This circuit must not be less than a #12 wire and should be protected
with a 15 A time-delayed fuse. Before connecting the motor to the power line, make sure the switch is in the OFF
position and the electric current is rated the same as the current stamped on the motor nameplate. Running at a
lower voltage will damage the motor.
WARNING: This tool must be grounded while in use to protect the operator from electric shock.
11

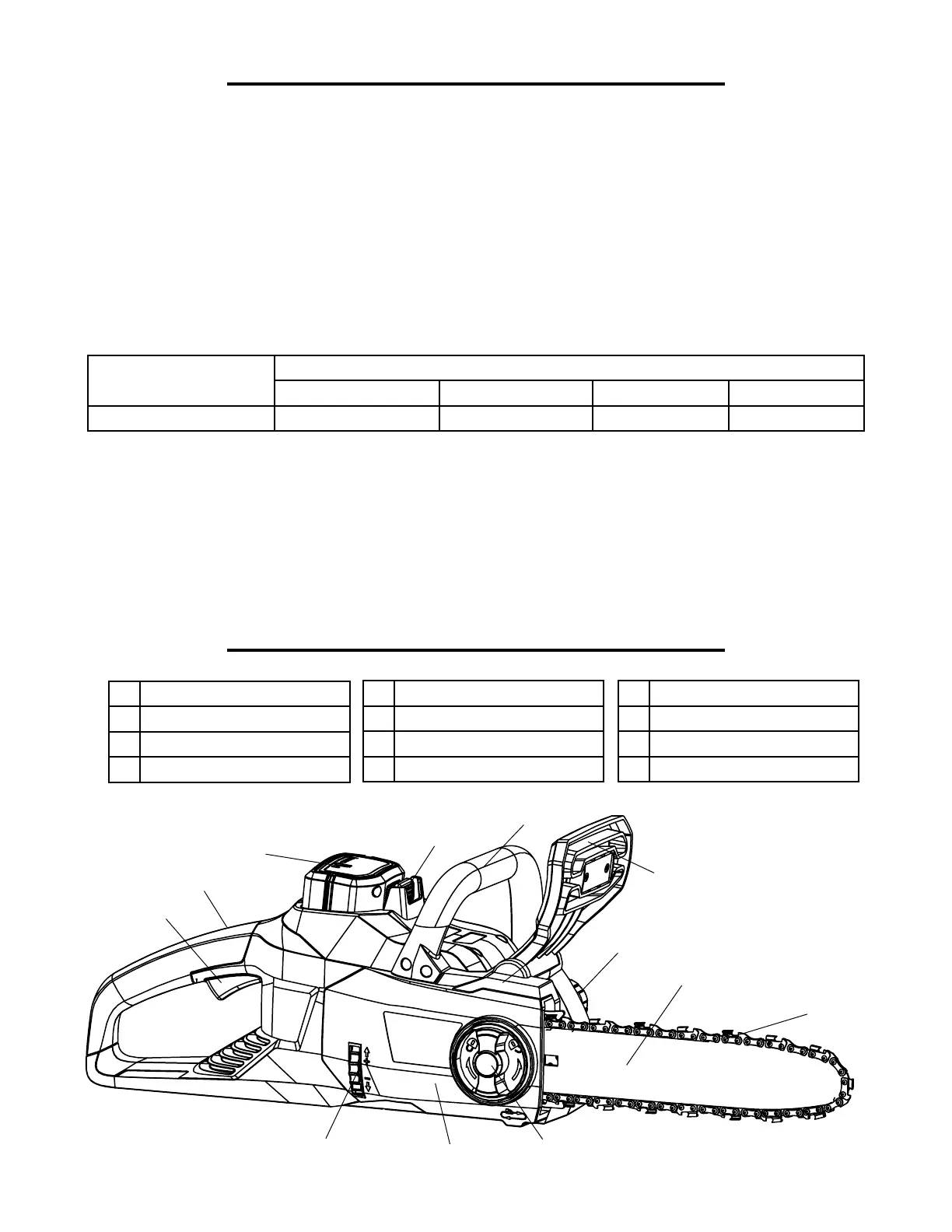

KNOW YOUR CHAINSAW
1
2
3
5
5
6
7
1 Trigger
2 Safety Switch*
3 Battery
4 Front handle
AMPERAGE
REQUIRED GAUGE FOR EXTENSION CORDS
25 ft. 50 ft. 100 ft. 150 ft.
2.5 A 18 gauge 16 gauge 14 gauge 12 gauge
ELECTRICAL INFORMATION
8
9
10
11
4
12
5 Hand Guard/Chain Break
6 Oil Cap*
7 Guide Bar
8 Chain
9 Side Cover Lock
10 Side Cover
11 Battery Release Button
12 Chain Tension Wheel
*On back or underside
of chainsaw
