ASSEMBLY AND ADJUSTMENTS

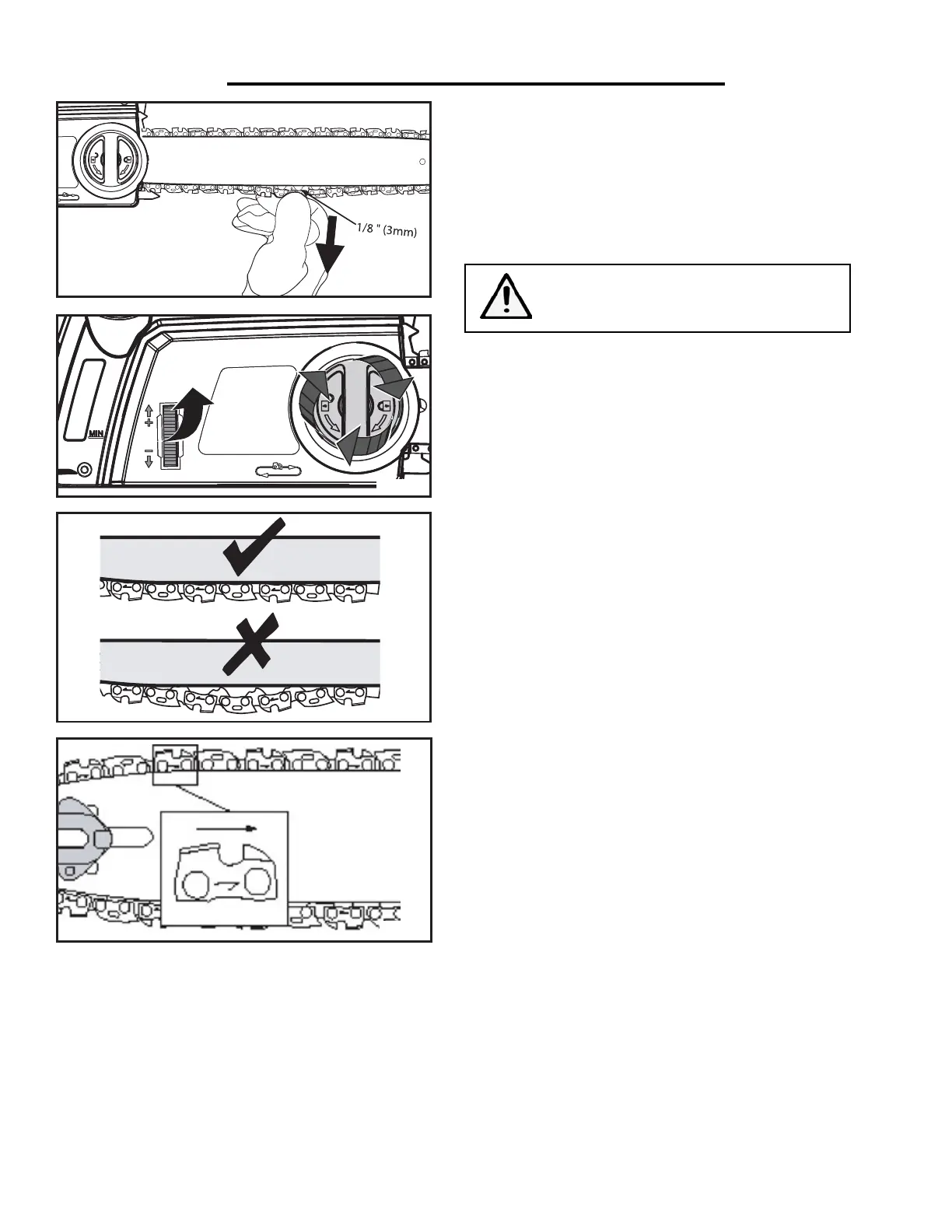

Fig. D
Fig. E
Fig. F
REPLACING THE CHAIN
1. Rotate the bar adjustment locking knob and remove the
cover of the saw’s body (see Assembly of Guide Bar and
Chain for more details - Page 8).
2. Lift the worn saw chain out of the fitted slot in the guide
bar.
3. Place the new chain in this position, making sure the teeth
are facing the correct direction and that the edge of the chain
fits into the slot around the guide bar.
4. Replace the cover. Adjust tension before operating.
FILLING THE AUTO OIL SYSTEM
This chainsaw features an auto-oiling system to keep the
chain and guide bar properly lubricated. The oil level indica-
tor shows the remaining oil in the chainsaw. If the oil level de-
creases to below one quarter capacity, refill it with the proper
bar and chain oil. To fill the oil reservoir:
1. Remove the oil cap. Fill the reservoir with bar and chain
oil until the oil level has reached full capacity.
2. Put the oil cap back on. Make sure to check the oil level
after every 10 minutes of use. Unplug the chainsaw before
checking oil levels or filling the oil reservoir.
REMOVING AND CHARGING THE BATTERY
1. Press the lock button on the top center of the battery to
slide it out of the chainsaw.
2. Place the battery pack into the charger by sliding it into a
locked position until it clicks
Fig. G
WARNING - when handling saw chains,
always wear protective gloves.
3. When the green light is flashing, the battery is charging. If the green light is no longer flashing, the battery is
fully charged.
ATTACH /REMOVE THE BATTERY
Note: The battery is not fully charged at the time of purchase. Before using the chainsaw for the first time, place
the battery in the charger and charge it fully.
To insert the battery, slide it into the back of the chainsaw until a “click” is heard. Make sure the battery is fully
inserted and latched into position. To remove the battery, press the release button and slide the battery out of the
chainsaw. This is the same way to insert and remove the battery from the charging station.
