KNOW YOUR CHAINSAW
13
TOOL PURPOSE

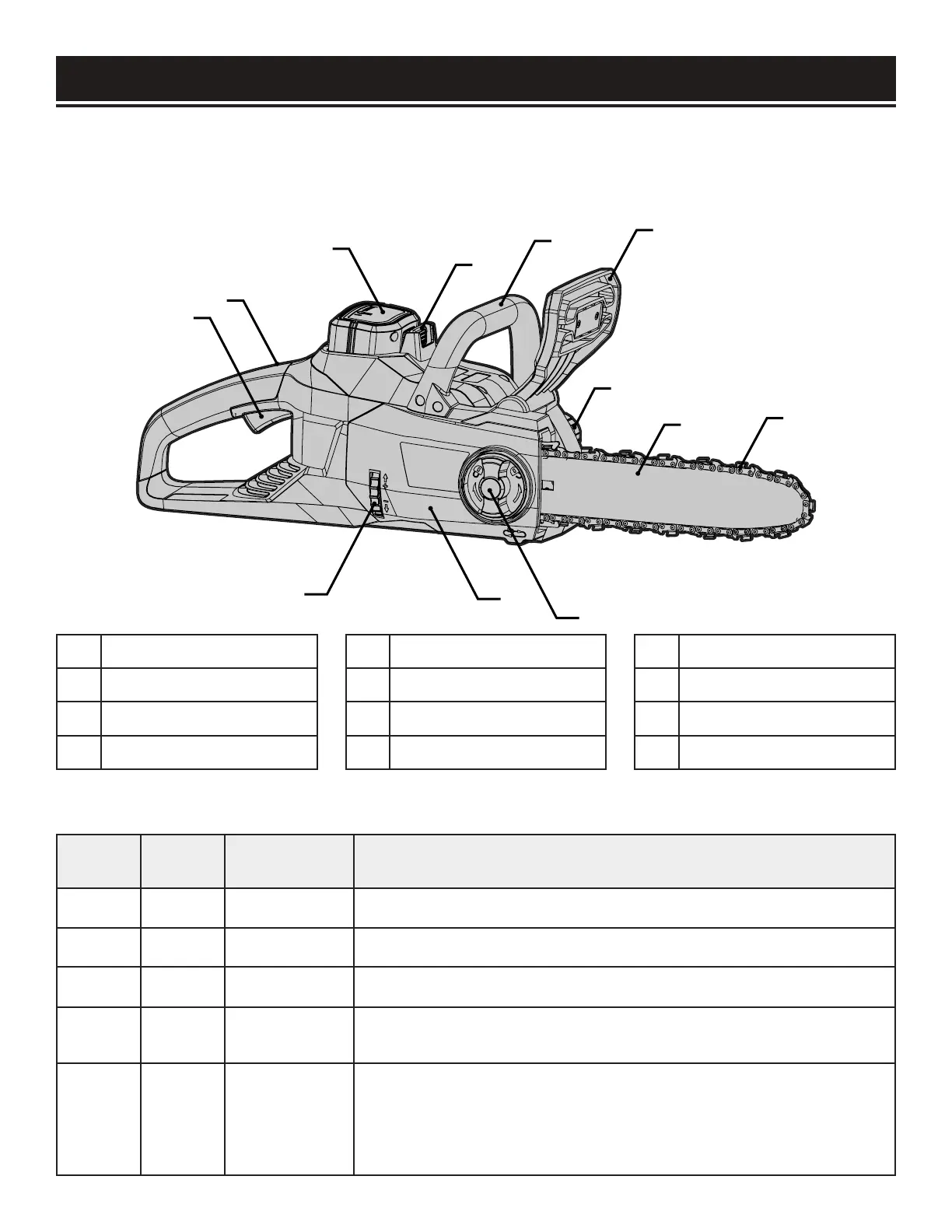

This chainsaw is designed to saw wood. Refer to the diagram below to become familiarized with the
parts and controls of your 40V Max Lithium Ion Cordless Chainsaw.
1 Trigger
2 Safety Switch*
3 Battery
4 Battery Release Button
5 Front Handle
6 Hand Guard/Chain Break
7 Oil Cap*
8 Guide Bar
* Located on the left side of the saw
1
2
3
6
11
4
9
7
12
5
10
8
Red
Light
Green
Light
Status Charger LED Light Details
On Off Standby
The battery is not connected and charger is in standby mode.
On Flashing Charging The battery is charging.
Off On Fully Charged The battery is fully charged and should be removed from the charger.
Flashing Off Error
There is a problem with the battery. Contact customer service at
1-800-232-1195 for assistance in replacing the battery.
Flashing Flashing
Temperature
Error
The temperature is either too high or too low. If the battery is warm, re-
move it from the charger for a few minutes to let it cool down. Once the
temperature returns to the normal temperature range (50°F - 104°F),
you can continue charging the battery.
Table A
9 Chain
10 Side Cover Lock
11 Side Cover
12 Chain Tension Wheel
