13
1
ASSEMBLY & ADJUSTMENTS

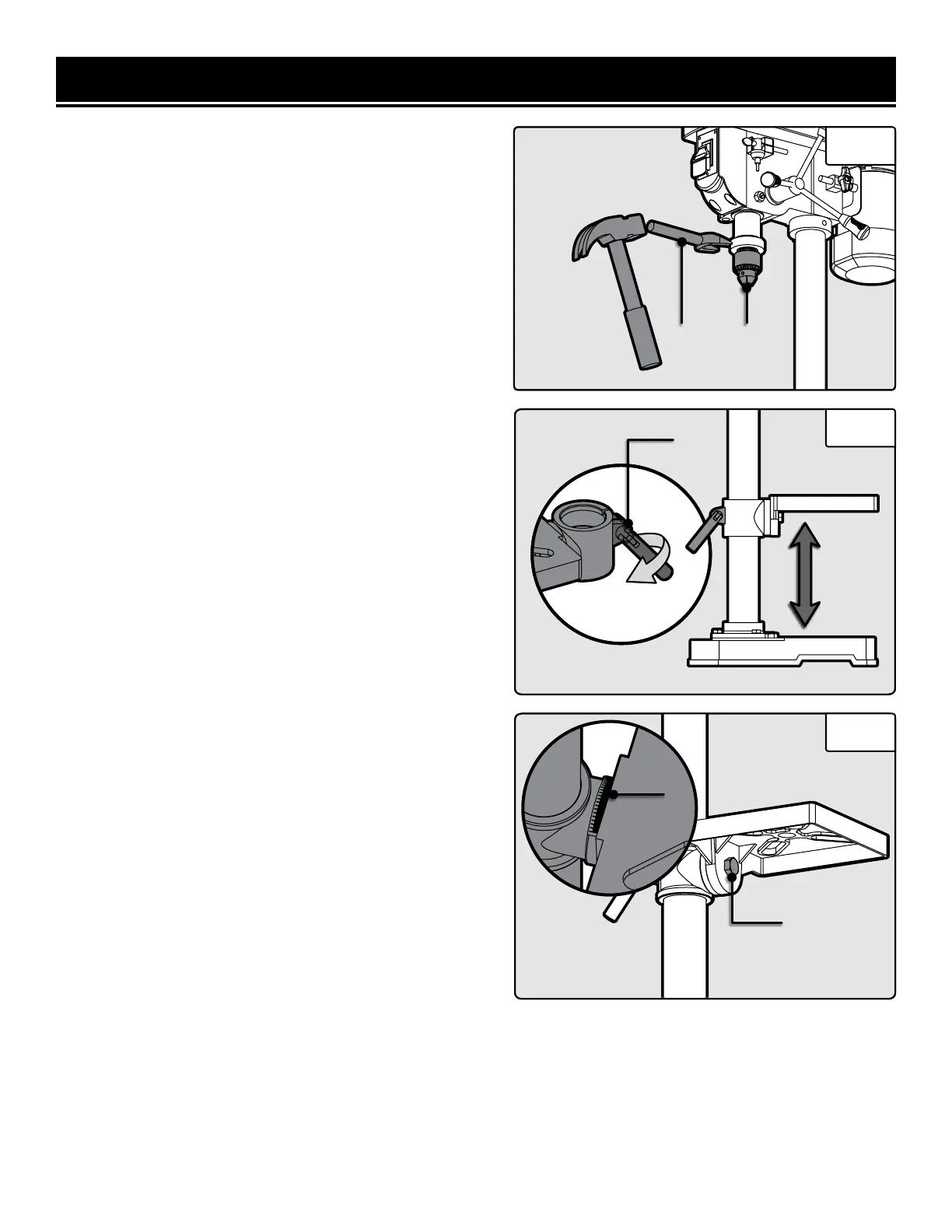

REMOVING THE CHUCK
NOTE: To avoid possible damage to the drill or chuck, be
prepared to catch the chuck as it falls. Placing a towel on
the drill press table can soften the impact if you do drop the
chuck.
1. Turn the feed handles to lower the chuck to the lowest
position, making it close to the table.
2. Place a ball joint separator (not included, Fig. 7 - 1) above
the chuck (Fig. 7 - 2) and tap it lightly with a hammer to
cause the chuck to drop from the spindle. You should hold
the chuck and be ready to catch it when it is released.
Alternate Method:
Place the chuck key into the opening on the side of the
chuck. Open the drill press cover and hold the spindle pul-
ley stationary. Using the chuck key for leverage, rotate the
entire chuck clockwise while gently pulling downwards. Re-
move the chuck from the spindle.
RAISING AND LOWERING THE TABLE
1. Loosen the table locking handle (Fig. 8 -1) and slide the
table until it is at the desired height.
2. Tighten the table locking handle before drilling.
ROTATE THE TABLE
1. Loosen the table locking handle and turn the table around
the column to the desired position.
2. Tighten the table locking handle before drilling.
TILT THE TABLE
1. Loosen the bevel lock bolt (Fig. 9 - 1) with a 19 mm
socket or wrench (not included).
2. Tilt the table to the desired angle, using the bevel scale
(Fig. 9 - 2) as a basic guide.
3. Re-tighten the bevel lock bolt.
4. To return the table to its original horizontal position, loos-
en the bevel lock bolt.
Fig. 7
1
2
Fig. 8
Fig. 9
1
2
5. Realign the table to the 0° setting on the bevel scale.
6. Tighten the bevel lock bolt with the wrench.
