ASSEMBLY AND ADJUSTMENTS
14
FEED DEPTH ADJUSTMENT
1. Turn the Depth Scale Ring to the desired depth.
(Fig. Q)
2. Lock the Scale Ring in Place by tightening the
depth knob.
SPEED ADJUSTMENT
For a video demonstration using the WEN 8-Inch
Drill Press, visit http://bit.ly/1LGcLIb
1. To change to another one of the five available
speeds, open the belt housing and loosen the belt
tension locking knob found cirled in Fig. R.
2. Pull the motor to the front end and change the
location of the belt on the belt spindles. (Fig. R)
3. Push the motor to the rear and lock the belt tension knob.
Close the belt house.
CHANGING THE LIGHTBULB
To change the lightbulb, turn off and unplug the machine.
Turn the old bulb counter-clockwise to remove it, and screw
in the new bulb. You may then plug in and restart the ma-
chine.

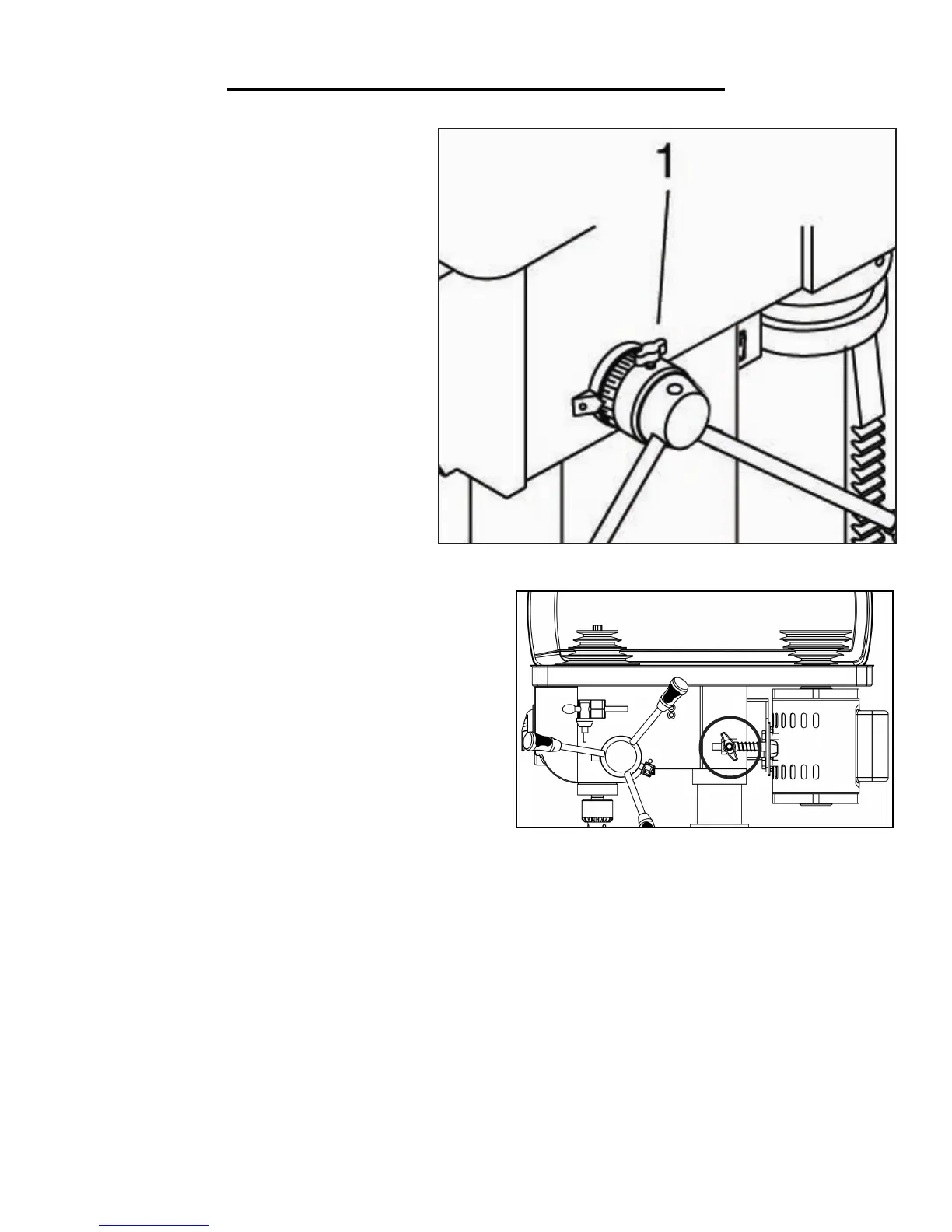

Fig. Q
