Wen 4210

13
Fig. K
WARNING: To avoid injury, make sure the chuck key is removed from the chuck before starting
any drilling operation.

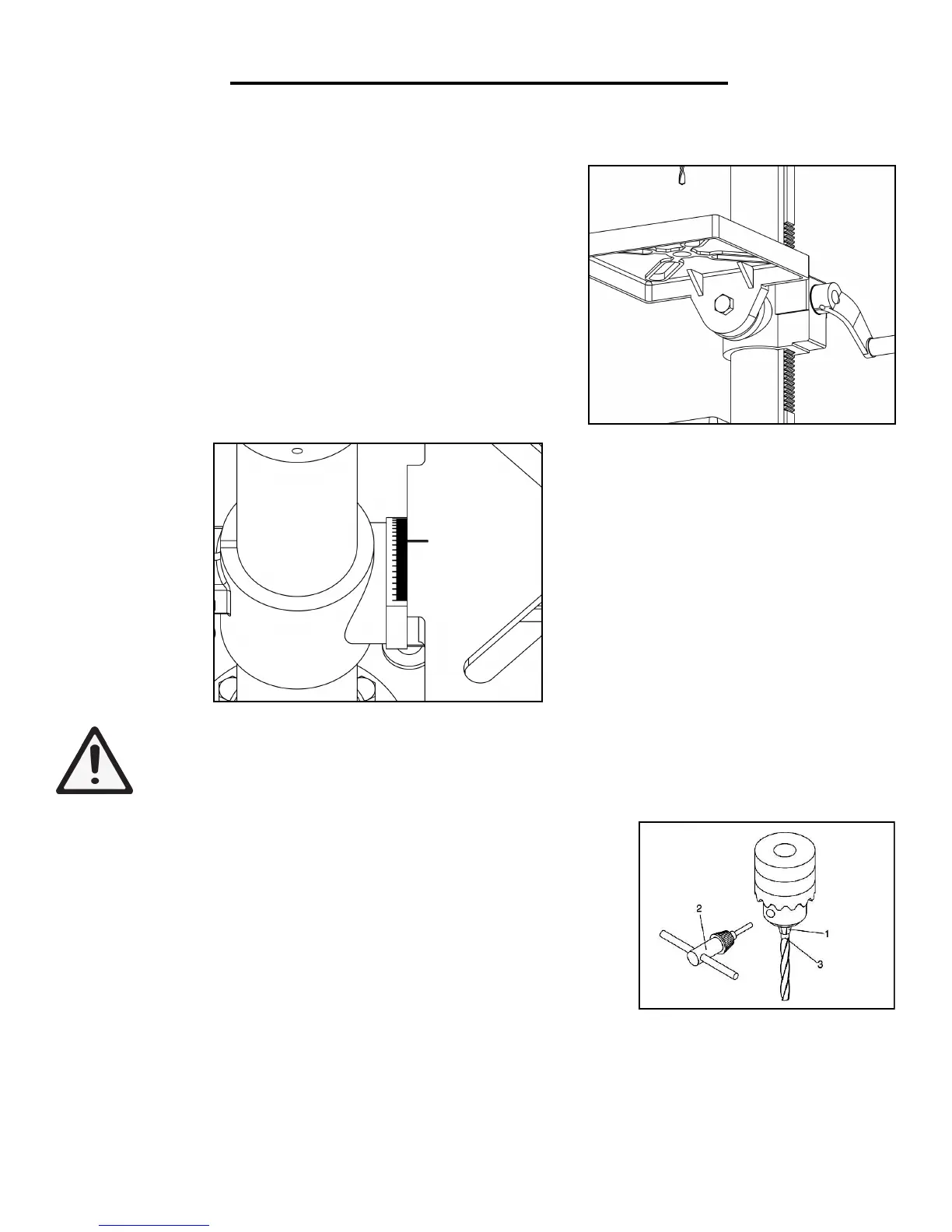

INSTALLING A DRILL BIT
1. Place the chuck key into the side keyhole of the chuck, meshing the key
with the gear teeth.
2. Turn the chuck key counterclockwise to open the chuck jaws.
3. Insert a drill bit into the chuck far enough to obtain the maximum grip of
the chuck jaws.
4. Center the drill bit in the chuck jaws before the final tightening of the chuck.
5. Tighten the chuck jaws using the chuck key to ensure that the drill bit will not slip while drilling.
6. Remove the chuck key. Store on the rubber mounted chuck key storage on the side of the drill press.
ASSEMBLY AND ADJUSTMENTS
TILT THE TABLE
1. Loosen the hex lock bolt with a suitable socket wrench (located under the table, as shown in Fig. N).
2. Tilt the table to the desired angle, using the bevel scale (Fig. O) as
a basic guide.
3. Re-tighten the bevel lock bolt.
4. To return the table to its original horizontal position, loosen the
bevel lock bolt.
5. Realign the table to the 0° setting on the bevel scale.
6. Tighten the bevel lock bolt with the wrench.

Fig. N

Fig. O

Fig. P
