ASSEMBLY AND ADJUSTMENTS
INSTALLING LASER BATTERIES (PRE-INSTALLED)
1. Turn off the drill laser.
2. Pull the tab located below the laser switch and lift up the laser switch
cover. (Fig. K)
3. Install two AAA batteries into the battery slots and close the switch
cover. (Fig. L)
RAISE OR LOWER THE TABLE
1. Loosen the table locking handle and turn the crank handle until the
table is at the desired height. (Fig. M)
2. Tighten the table locking handle before drilling.
ROTATE THE TABLE
1. Loosen the support lock handle and turn the table around the column
to the desired position.
Note: The rack should rotate around the column with the table support bracket. If the rack binds and does not
rotate, slightly loosen the set screw in the rack collar.
2. Tighten the support lock before drilling.



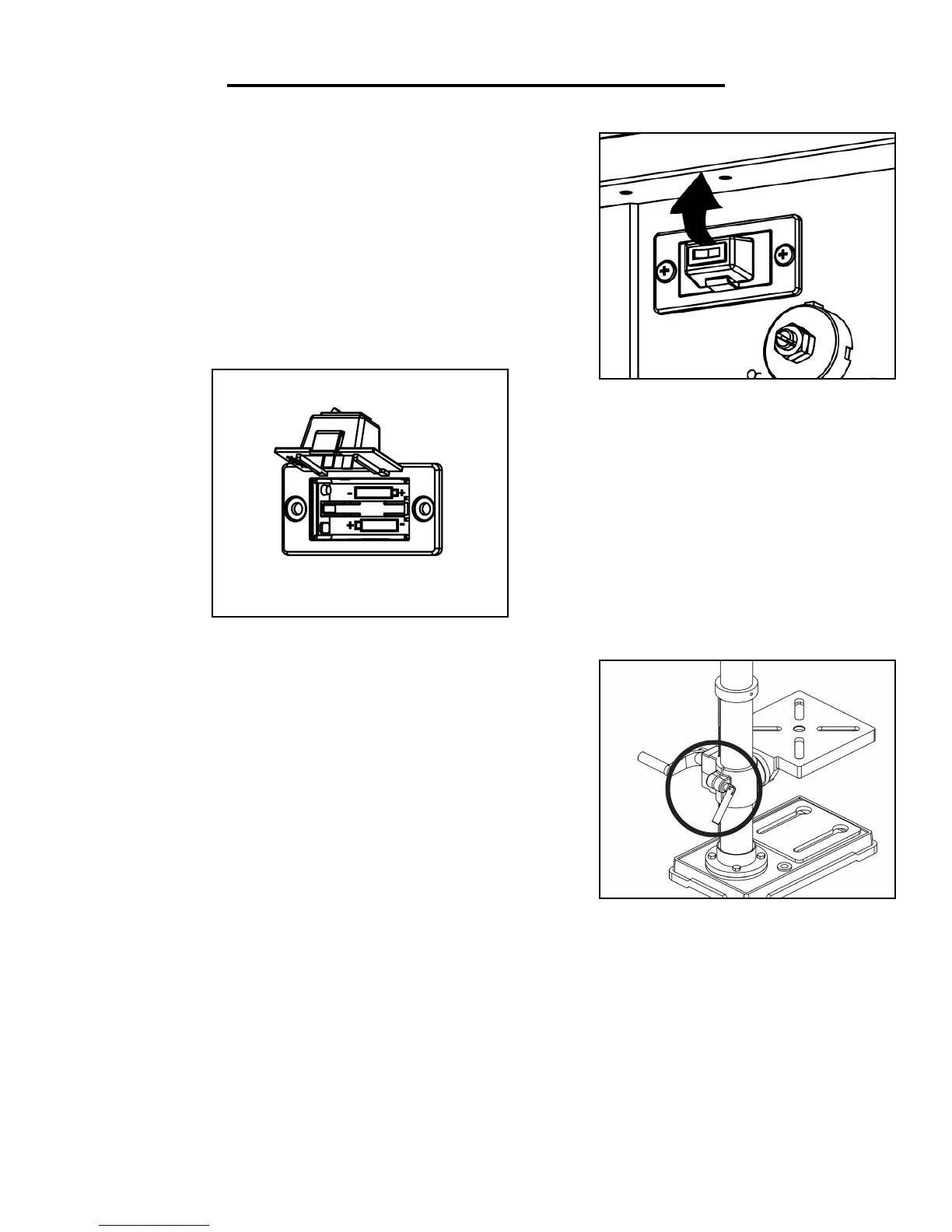

Fig. K
Fig. L

Fig. M
