Wen 4210

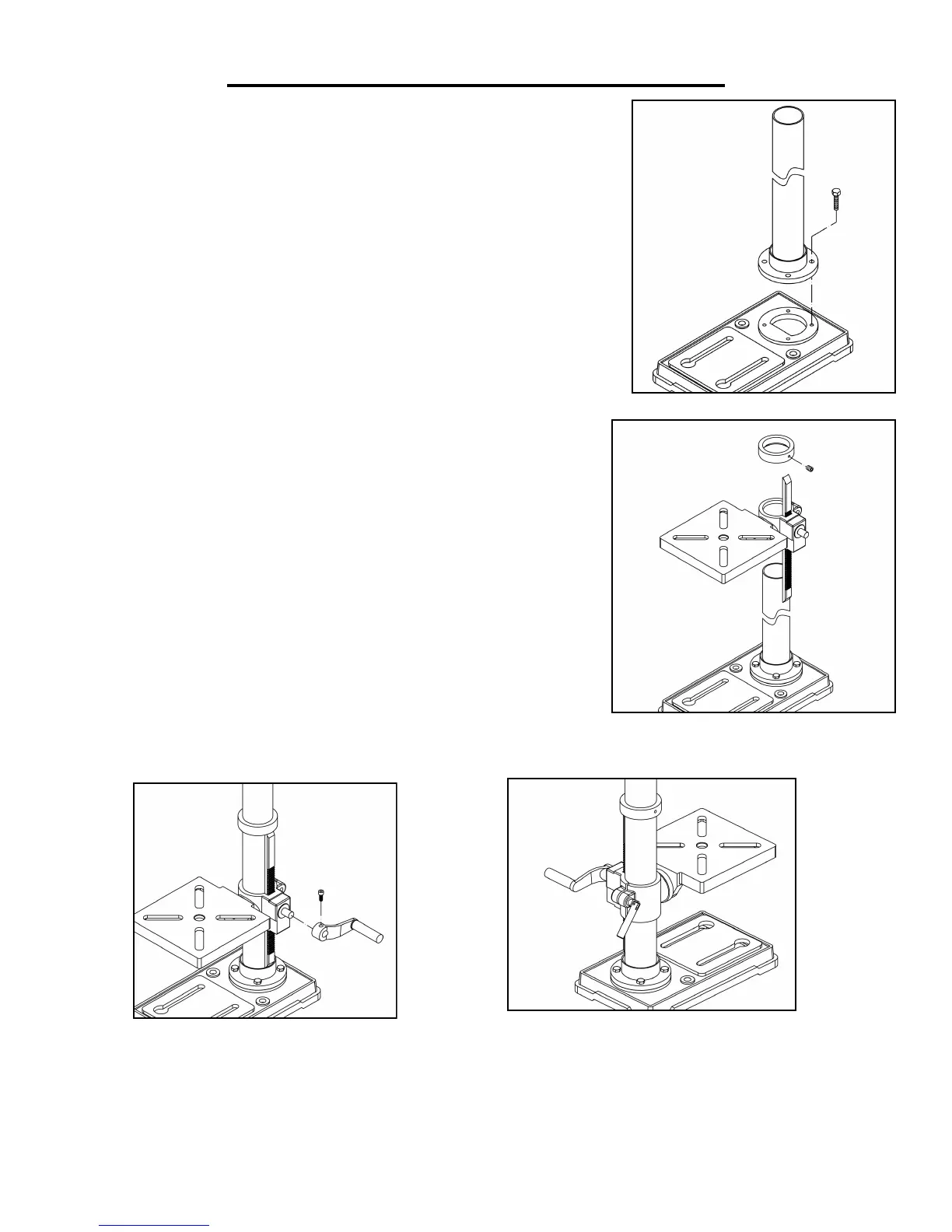

ASSEMBLY AND ADJUSTMENTS
ATTACHING COLUMN ASSEMBLY TO BASE
1. Place the column tube on the base, aligning the column support holes
to the base holes.
2. Install a hex head bolt in each column support hole and tighten bolts
using the adjustable wrench.
ATTACHING TABLE TO COLUMN
1. Loosen set screw in rack collar and remove the collar from the column.
2. Remove the rack from the column.
3. Placing the rack into the table bracket, slide the table assembly with
rack down directly onto the column (Fig. B). The longer edge of the rack
without cerations should be towards the top of the drill press.
4. Place the column collar down onto the rack and tigthen the set screw
with the smaller hex wrench to hold the rack in position.
4. Insert the table adjustment handle into its placing and install by
tightening the socket head screw using the larger hex wrench. (Fig. C)
5. Position the table directly over the base, and tighten the table locking
handle to secure table assembly. (Fig. D)




Fig. A
Fig. B
Fig. C
Fig. D
9
