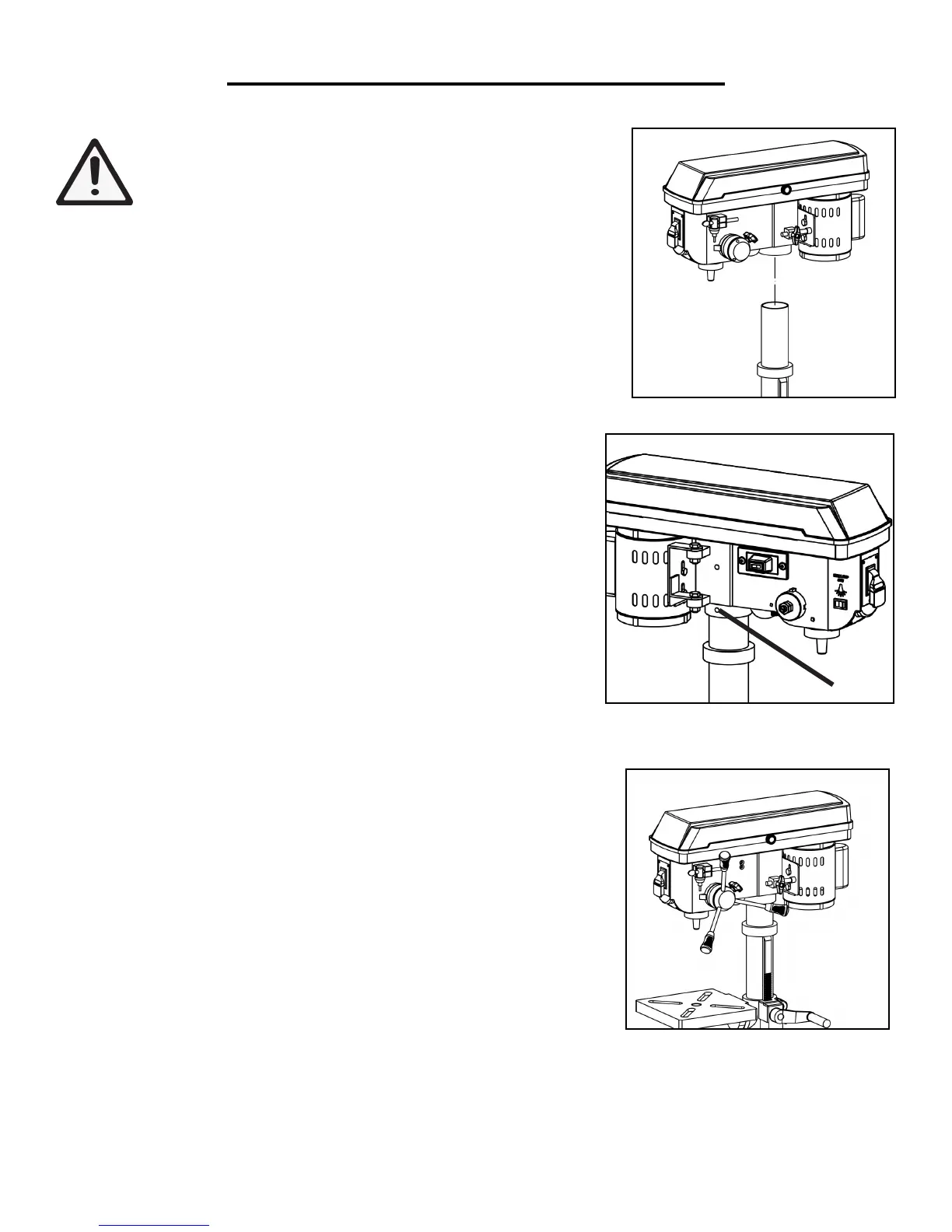

ASSEMBLY AND ADJUSTMENTS
DRILL PRESS HEAD TO COLUMN
CAUTION: The drill press head is heavy. To avoid in-
jury, two people should lift it into position.
1. Carefully lift the drill press head assembly and position it over the
column (Fig. E).
2. Place the mounting opening on the drill press head over the top of
the column. Make sure the drill press head is seated properly on the
column.
3. Align the direction of the drill press head with the direction of the
base and the table.
4. Tighten the set screws using a hex wrench (Fig. F).
FEED HANDLES (Fig. G)
1. Insert the three speed handles into the threaded openings on the
feed hub.
2. Manually tighten the handles into the openings.
Note: When using the drill press, one or two of the feed handles may
be removed if an unusually-shaped workpiece interferes with handle
rotation.



Fig. E
Fig. F
Fig. G
