Assembly and adjustments (continued)

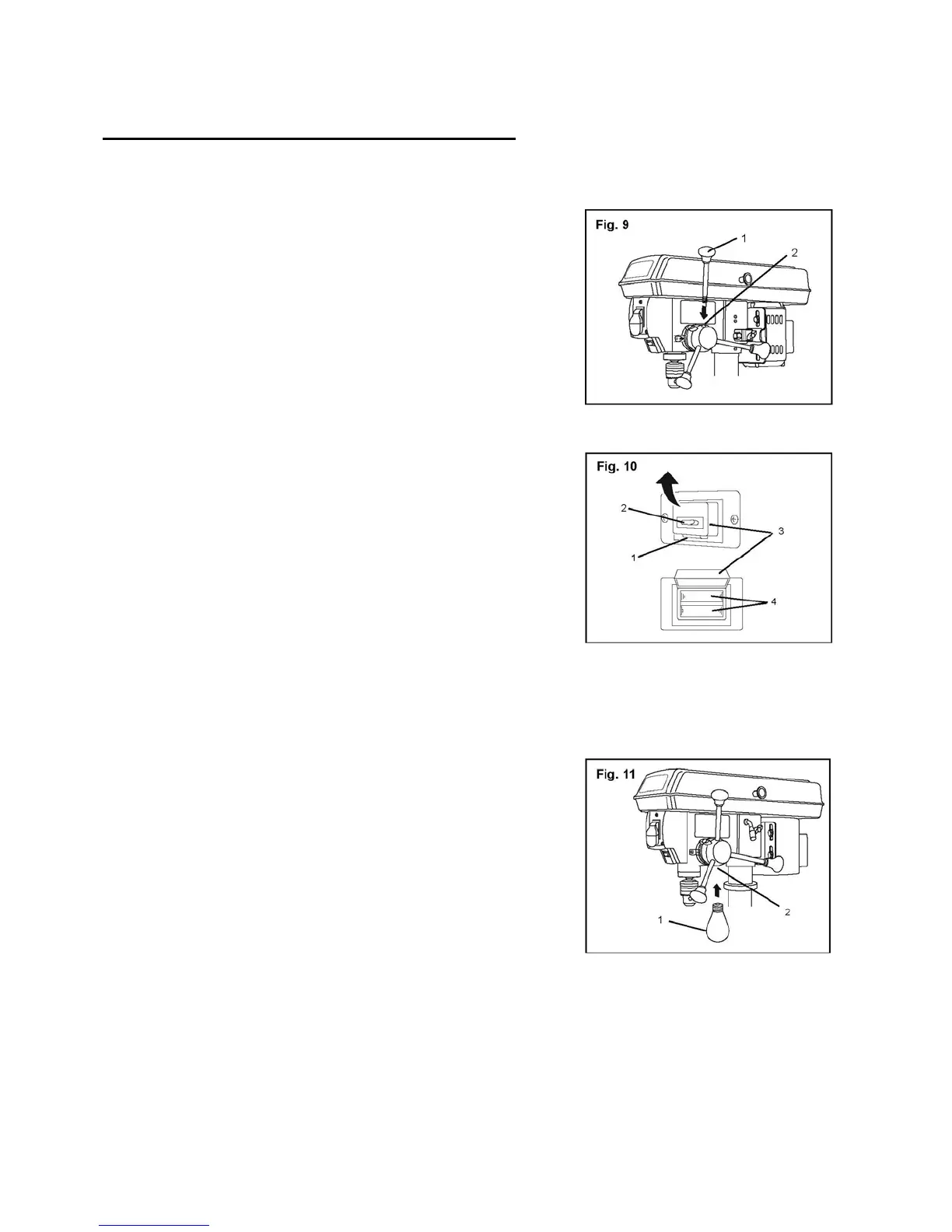

Feed handles (Fig. 9)
1. Thread the three feed handle rods (1) into the holes on the
feed hub (2).
2. Hand tighten.
Note: One or two of the feed handles may be removed if an
unusually-shaped workpiece interferes with handle rotation.
Laser batteries (Fig. 10)
1. Turn off the laser.
2. Press the tab (1) located below the laser switch (2) and lift
up the laser switch cover (3).
3. Insert 2 "AA" batteries in the laser battery compartment
(4).
4. Close the laser switch cover.
CAUTION: Remove the laser light batteries when the tool is to be stored without use for a few
days or more. If left in position, the batteries might leak and damage the laser light assembly.
Damage due to leaking batteries is not covered under the warranty.
Light bulb (Fig. 11)
Insert the light bulb (1) in the socket (2) in the motor head
assembly.
Note: The light bulb is optional. Use an appliance-sized bulb
similar to those used in a refrigerator or oven. The light bulb
is not supplied with the drill press.
