MAINTENANCE
CAUTION! Never place any type of storage cover on the plate compactor while it is still hot.
18

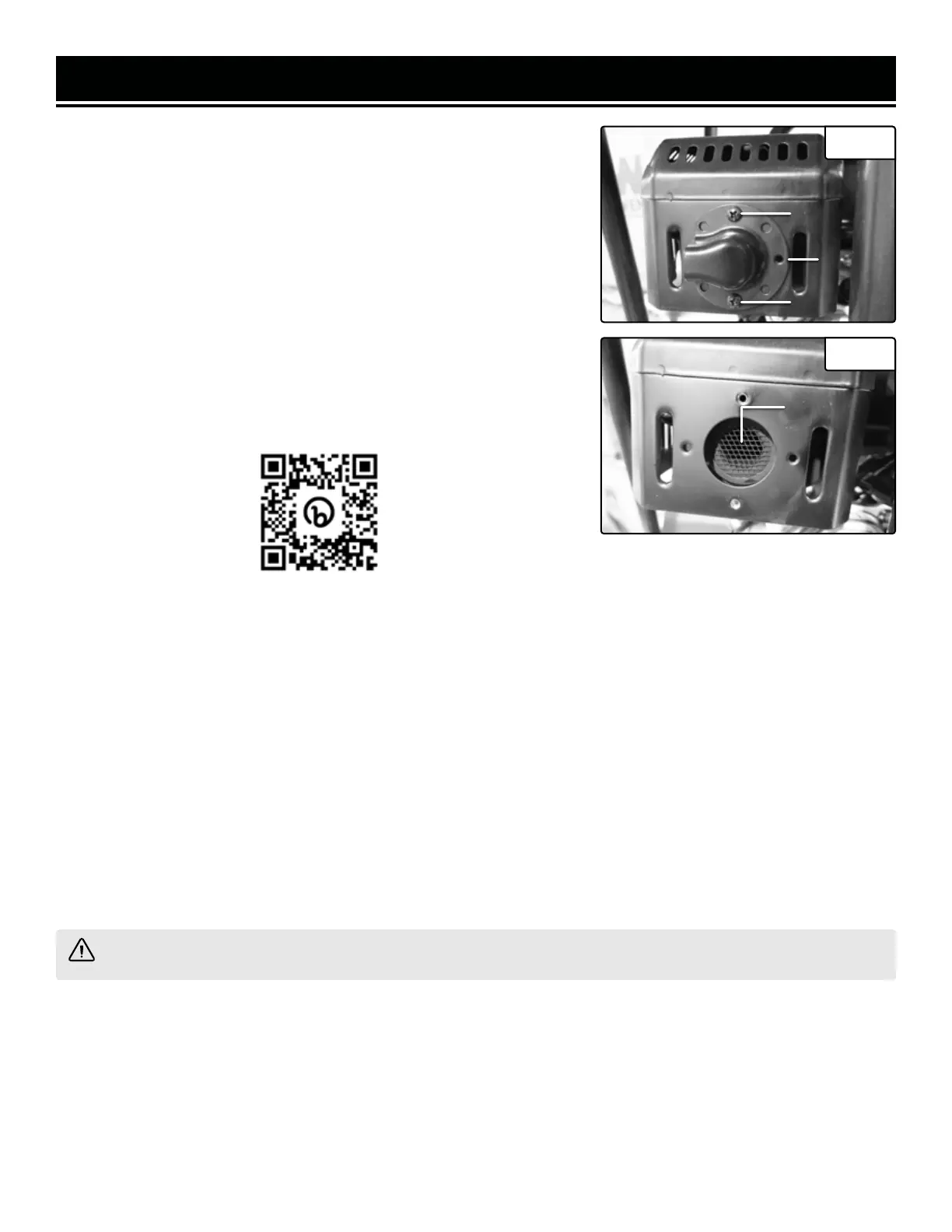

Fig. 21
CLEANING THE SPARK ARRESTOR
1. Let the engine and muffler cool completely.
2. Remove the two Philips-head screws (Fig. 21 - 1) and the deflector
cover (Fig. 21 - 2).
3. Use a wire brush to clean the spark arrestor screen (Fig. 22 - 1).
LUBRICATING THE VIBRATING ASSEMBLY BEARINGS
Check the vibrating assembly bearings every 50 hours (more often if the
plate compactor is used heavily or used in high temperatures) and add
more grease to the bearings if necessary. Use an NLGI #2 EP lithium-
based grease. For detailed instructions on how to maintain the vibrating
assembly, please visit the link below, or scan the QR code:
bit.ly/3J7jiAN
Fig. 22
STORING THE PLATE COMPACTOR
If the unit is being stored for short periods of time (30 to 60 days), then when taking the unit out of storage, add
gasoline and fuel stabilizer in the proper ratio to the tank until the tank is full.
NOTE: Filling the tank reduces the amount of air in the tank and helps reduce deterioration of fuel. Run the engine
for 5 – 10 minutes allowing stabilized fuel mixture to circulate through the carburetor.
When storing the plate compactor for extended periods of time:
• Drain the fuel tank and the carburetor.
• Change oil.
• Do not obstruct any ventilation openings.
• Keep the plate compactor in a cool dry area.
When transporting plate compactor:
• Tighten fuel cap. Drain the fuel tank if possible.
• Keep the plate compactor upright. Never place plate compactor side down. Doing so will make it difficult to start.
1
1
2
1
