Wen 56035T Instruction Manual

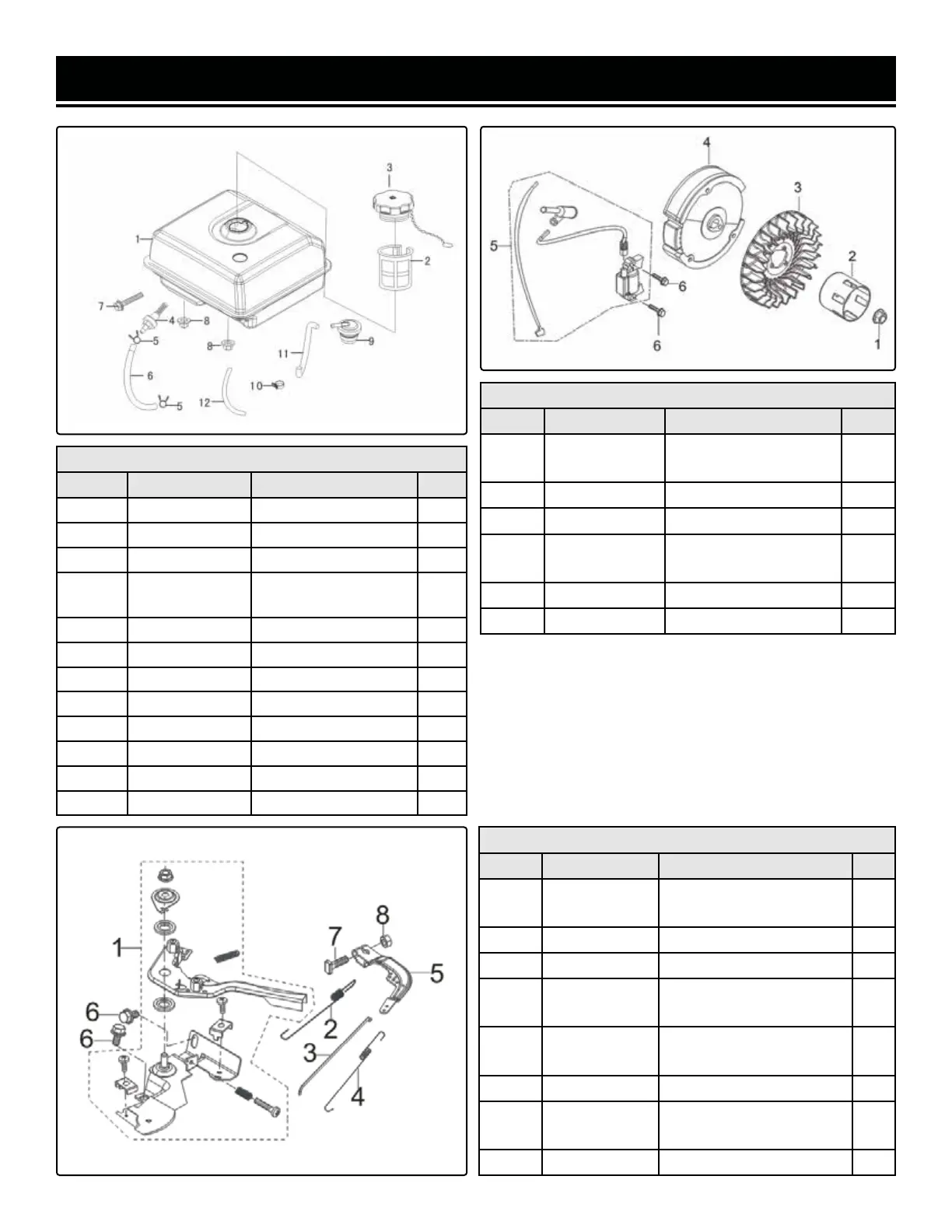

EXPLODED VIEW & PARTS LIST
Fig. 12 - Gas Tank
No. Part No. Description Qty.
12 - 1 56035-E-078 Fuel Tank 1
12 - 2 56035-E-079 Fuel Strainer 1
12 - 3 56035T-1203 Fuel Tank Cover 1
12 - 4 56035-E-081
Fuel Tank Oil
Outlet Subassembly
1
12 - 5 56035-E-082 Collar 2
12 - 6 56035-E-083 Fuel Tube 1
12 - 7 56035-E-084 Bolt, M6x30 1
12 - 8 P54179 Nut, M6 2
12 - 9 56035T-1209 Valve 1
12 - 10 56035T-1210 Clamp 1
12 - 11 56035T-1211 Rubber Hose
12 - 12 56035-E-102 Rubber Jacket 1
Fig. 13 - Flywheel / Impeller
No. Part No. Description Qty.
13 - 1 P54630
Flywheel Nut,
M14x1.5
1
13 - 2 56035-E-087 Starter Pulley 1
13 - 3 P54634 Impeller 1
13 - 4 P54636
Flywheel
Subassembly
1
13 - 5 56035-E-091 Ignition Coil 1
13 - 6 P54628 Bolt, M6x25 2
Fig. 14 - Control Assembly, Throttle
No. Part No. Description Qty.
14 - 1 56035-E-092
Throttle Control
Assembly
1
14 - 2 56035-E-094 Governor Spring 1
14 - 3 P54620 Governor Rod 1
14 - 4 P54618
Throttle Valve Returning
Spring
1
14 - 5 P54624
Governor Support
Subassembly
1
14 - 6 P54040 Bolt, M6x10 2
14 - 7 P54622
Governor Support Bolt,
35_6x1x21
1
14 - 8 P54179 Nut, M6 1
NOTE: Not all parts may be available for purchase. Parts
and accessories that wear down over the course of nor-
mal use are not covered under the warranty.
