Wen 56035T Instruction Manual

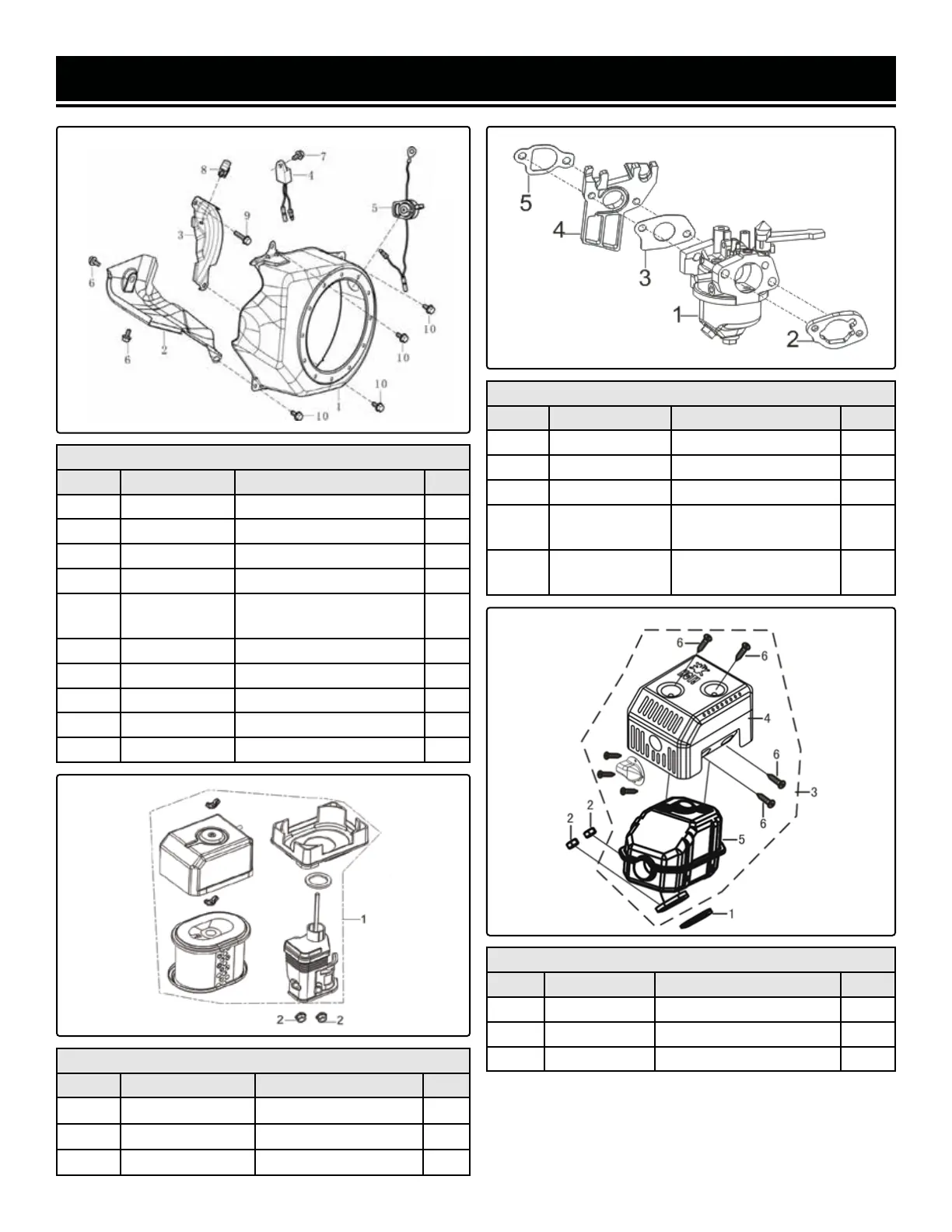

EXPLODED VIEW & PARTS LIST
Fig. 8 - Shroud
No. Part No. Description Qty.
8 - 1 P54668 Shroud 1
8 - 2 56035-E-058 Cylinder Body Shroud 1
8 - 3 56035-E-059 Lower Shield 1
8 - 4 P54612 Oil Protector 1
8 - 5 56035-E-061
Stop Engine Switch
Subassembly
1
8 - 6 P54040 Bolt, M6x10 2
8 - 7 P54040 Bolt, M6x12 1
8 - 8 P54596-1 Collar 1
8 - 9 P54186 Bolt, M6x16 1
8 - 10 P54040 Bolt, M6x12 4
Fig. 9 - Carburetor Assembly
No. Part No. Description Qty.
9 - 1 56035-E-067 Carburetor Assembly 1
9 - 2 56035-E-068 Air Cleaner Gasket 1
9 - 3 P54166 Carburetor Gasket 1
9 - 4 P54164
Carburetor Insulator
Plate
1
9 - 5 P54162
Carburetor Insulator
Gasket
1
Fig. 10 - Air Cleaner
No. Part No. Description Qty.
10 - 1 56035-E-073 Air Cleaner 1
10 - 2 P54179 Nut, M6 2
10 - 3 56035-E-073-1 Air Cleaner Element 1
Fig. 11 - Muffler Assembly
No. Part No. Description Qty.
11 - 1 P54426 Exhaust Outlet Gasket 1
11 - 2 56035-E-076 Nut, M8 2
11 - 3 56035-E-077 Muffler Assembly 1
25
