Wen 56035T Instruction Manual

Fig. 6 - Valve / Camshaft
No. Part No. Description Qty.
6 - 1 P54146 Camshaft Assembly 1
6 - 3 P54150 Valve 1
6 - 5 56035-E-043 Valve Spring Seat 2
6 - 6 P54160 Valve Lock Clamp 4
6 - 7 P54154 Valve Spring 2
6 - 8 P54161 Seal Guide 1
6 - 9 P54142 Valve Tappet 2
6 - 10 P54140 Valve Lifter 2
6 - 11 P54138
Stopper Plate
Subassembly
1
6 - 12 P54134
Valve Adjusting Bolt,
M6/M12 x 52
2
6 - 13 P54132 Valve Rocker 2
6 - 14 P54130 Valve Adjusting Nut, M6 2
6 - 15 P54128 Valve Lock Nut, M6 2

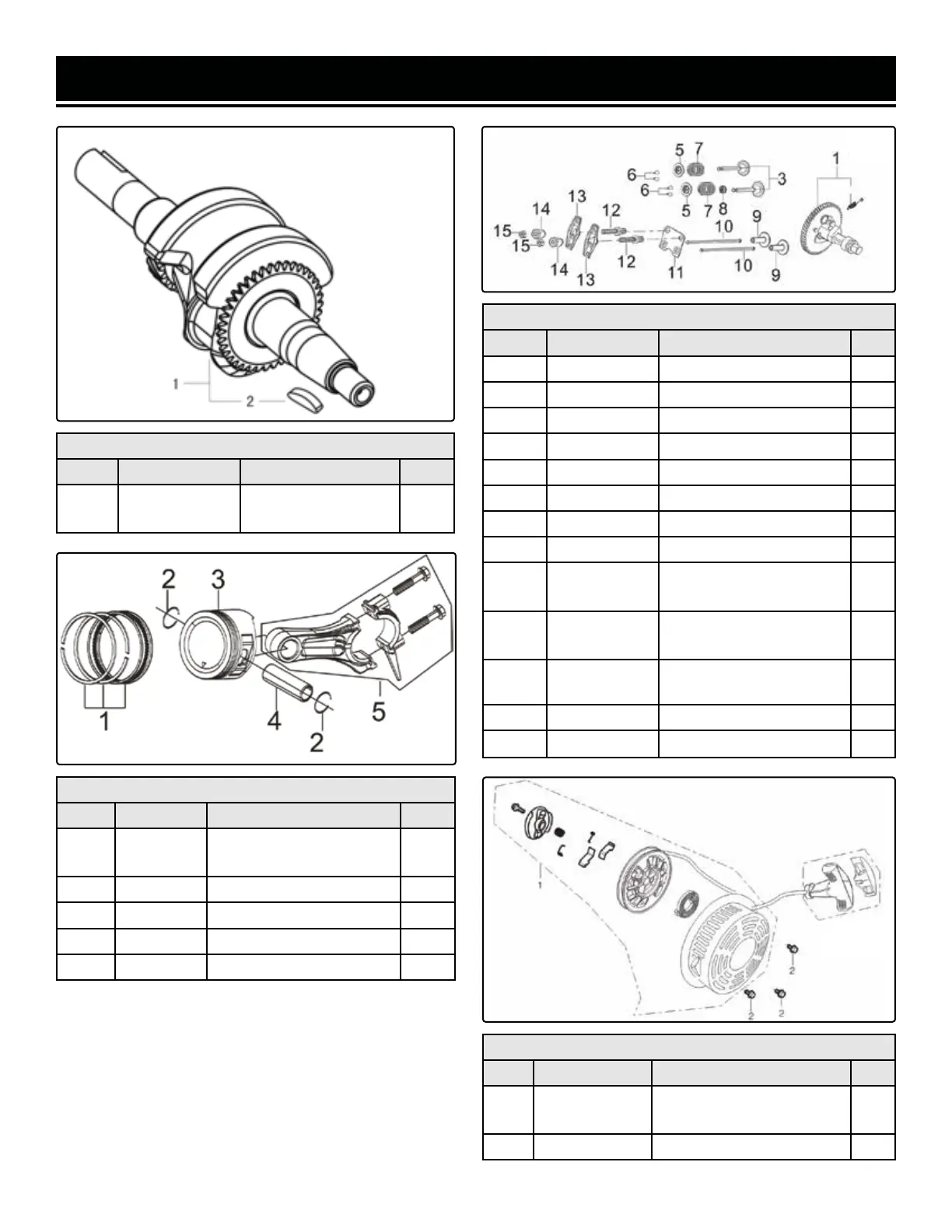

EXPLODED VIEW & PARTS LIST
Fig. 4 - Crankshaft
No. Part No. Description Qty.
4 - 1 56035-E-031
Crankshaft
Assembly
1
Fig. 5. Piston Ring / Connecting Rod
No. Part No. Description Qty.
5 - 1 P54105
Piston Ring
Assembly
1
5 - 2 P54106 Piston Ring Clip 2
5 - 3 P54109 Piston 1
5 - 4 P54112 Piston Pin 1
5 - 5 P54121 Connecting Rod 1
Fig. 7 - Recoil Starter
No. Part No. Description Qty.
7 - 1 56035-E-054
Recoil Starter
Assembly
1
7 - 2 P54598 Bolt, M6x8 3
24
