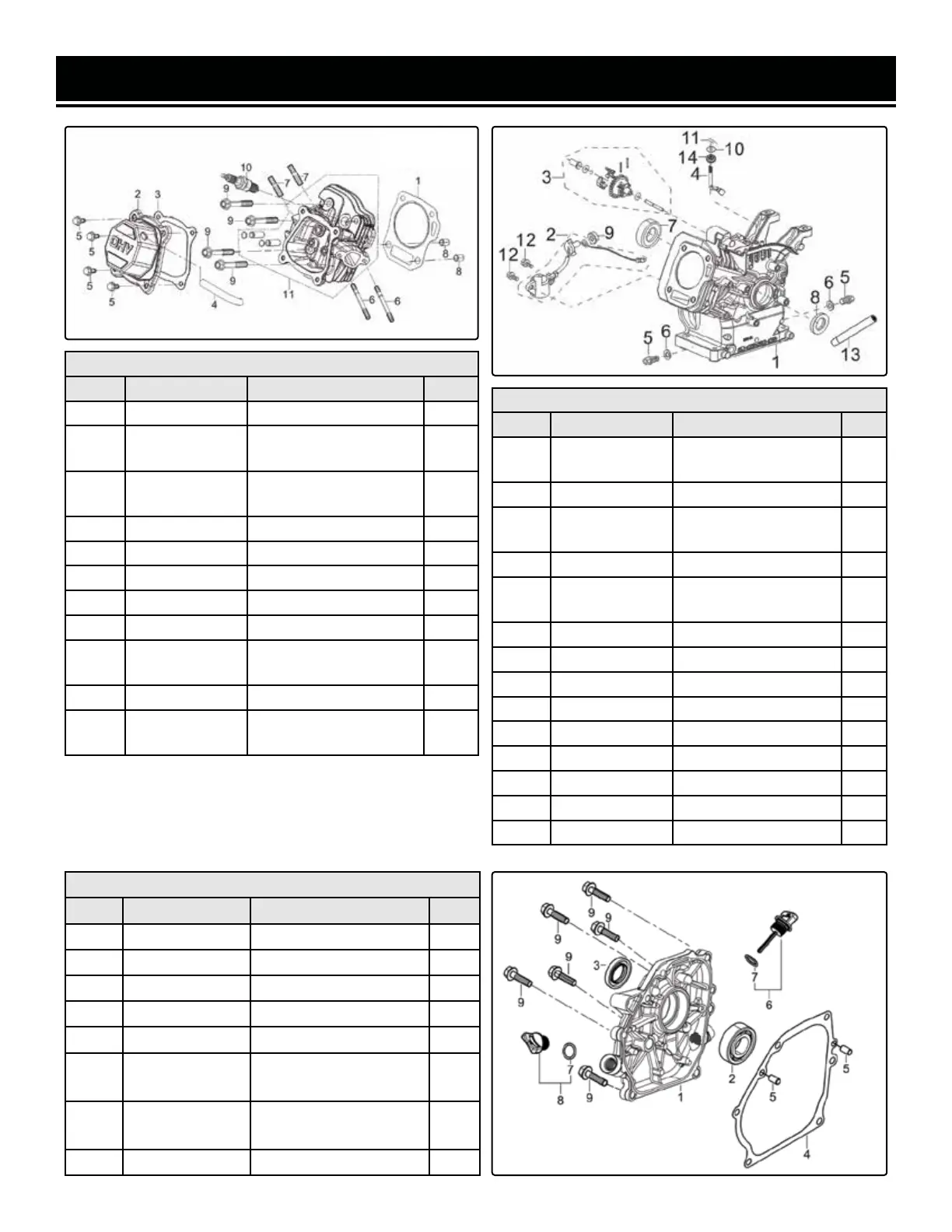

EXPLODED VIEW & PARTS LIST
Fig. 1 - Cylinder Head Assembly
No. Part No. Description Qty.
1 - 1 56035-E-001 Cylinder Head Gasket 1
1 - 2 P54066
Cylinder Head Cover
Assembly
1
1 - 3 P54064
Cylinder Head Cover
Gasket
1
1 - 4 56035-E-004 Breather Tube 1
1 - 5 P54040 Bolt, M6x12 4
1 - 6 56035-E-006 Stud, M6x113 2
1 - 7 P54058 Stud, M8x34 2
1 - 8 P54048 Pin 2
1 - 9 P54062
Cylinder Head Bolt,
M8x60
4
1 - 10 P54060 Spark Plug 1
1 - 11 P54054
Cylinder Head
Subassembly
1
NOTE: The entire engine is available as a single assem-
bly under model number 56035-E-000.
Fig. 2 - Crankcase Assembly
No. Part No. Description Qty.
2 - 1 56035-E-012
Crankcase
Subassembly
1
2 - 2 P54020 Engine Oil Sensor 1
2 - 3 P54031
Governor Gear
Assembly
1
2 - 4 P54014 Governor Arm 1
2 - 5 56035-E-016
Drain Plug Bolt,
M10x1.25x15
2
2 - 6 P54002 Washer 2
2 - 7 56035-E-018 Bearing, 6205 1
2 - 8 P54008 Oil Seal 1
2 - 9 P54003 Nut, M10 1
2 - 10 56035-E-020 Washer 1
2 - 11 56035-E-021 Pin 1
2 - 12 56035-E-022 Bolt, M6x14 2
2 - 13 56035-E-100 Oil Drain Tube 1
2 - 14 56035-E-101 Seal Guide 1
Fig. 3 - Crankcase Cover Assembly
No. Part No. Description Qty.
3 - 1 56035-E-023 Crankcase Cover 1
3 - 2 56035-E-018 Bearing, 6205 1
3 - 3 P54008 Oil Seal 1
3 - 4 P54080 Crankcase Gasket 1
3 - 5 P54082 Pin 2
3 - 6 P54086
Oil Dipstick
Subassembly
1
3 - 8 56035-E-029
Engine Oil Plug
Subassembly
1
3 - 9 P54092 Bolt, M8x32 6
