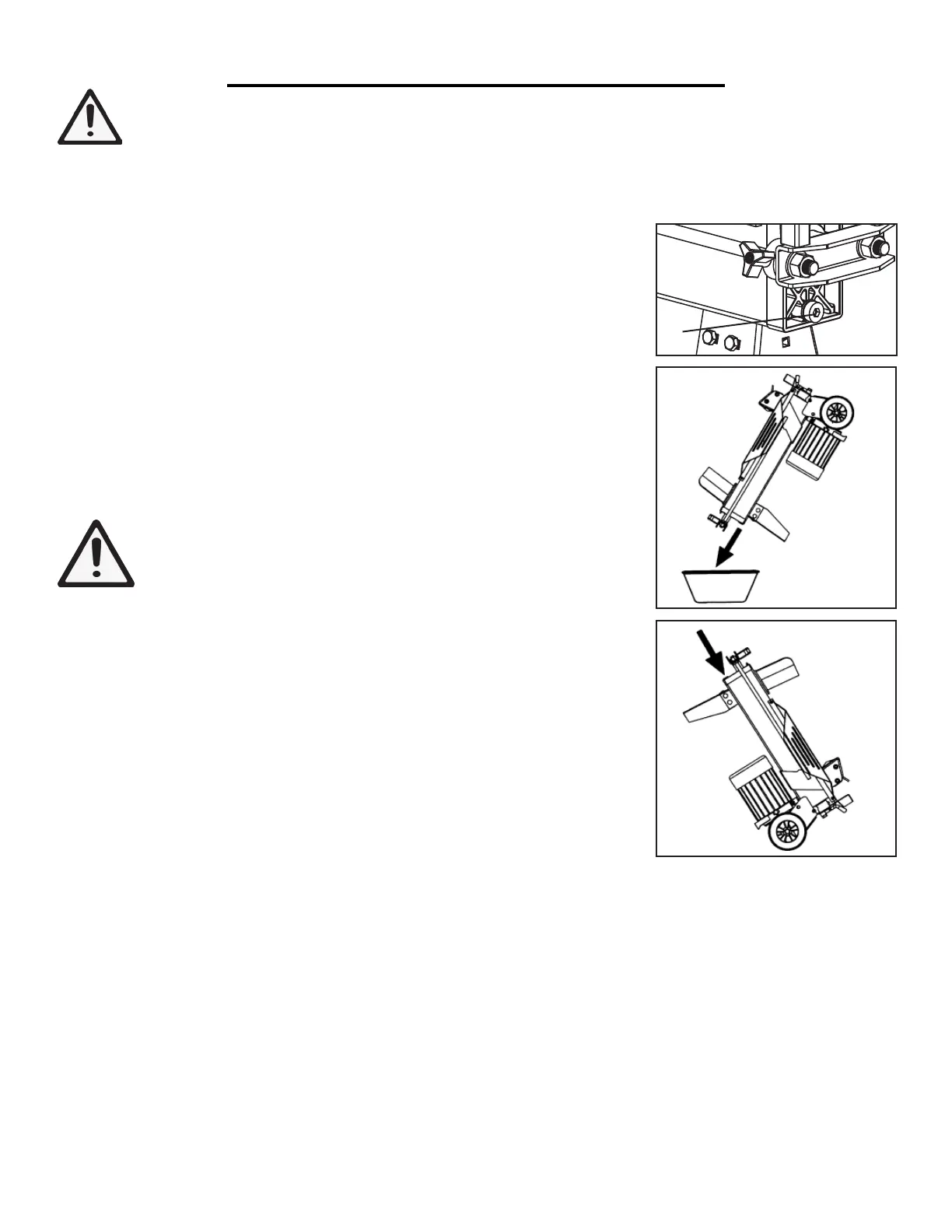

TO REPLACE THE HYDRAULIC FLUID
The hydraulic fluid should be replaced after 150 hours of use or every six
months.
1. Place a one gallon (or larger) pan under the splitting wedge end of the log
splitter.
2. Loosen the fluid drain knob (Fig. 9 - 1) and remove it. Be prepared for hy-
draulic fluid to flow out.
3. Raise the motor end of the log splitter to allow the fluid to drain into the pan
(Fig. 10). Return the log splitter to horizontal position when the fluid is empty.
NOTE: Responsibly dispose of the collected fluid at a public collection facility.
4. Raise the splitting edge end of the log splitter and make sure it is secure be-
fore refilling the hydraulic fluid (Fig 11).
5. Pour approximately 3.7 quarts (0.9 gallons) of approved hydraulic fluid
(AW32 hydraulic fluid for operation over 40°F or Dexron automatic transmis-
sion fluid for operation below 40°F) into the tank.
6. Check the fluid level with the dipstick. Make sure the level of the refilled fluid
is between the bottom two rings grooved into the base of the dipstick. Add more
fluid as necessary.
WARNING: Lifting the log splitter is a two person operation.
Once raised, make sure the log splitter is stable before performing
any maintenance.
MAINTENANCE
WARNING: Make sure the log splitter is disconnected from the power source before performing any
repair or maintenance.
Repair and maintenance work on the electrical system may only be carried out by a qualified electrician. All pro-
tective safety devices must be reattached immediately after repair and maintenance work have been completed.
Fig.10
Fig. 11
7. Replace the fluid drain knob (Fig. 9 - 1) and tighten securely. Return the log splitter to horizontal position.
8. Periodically check fluid level and refill as needed.
SPLITTING WEDGE
The splitting wedge is a wearing part that may need to be sharpened or replaced after prolonged use. Keep the
splitting wedge clean of dirt, wood shavings, bark, etc. Use a fine-toothed file or rasp to remove burrs or refresh
crushed areas to ensure optimal operation
LUBRICATION
Make sure all moving parts run smoothly. Lubricate with a few drops of oil when necessary. Lubricate the slide
rails with grease.
Fig. 9
