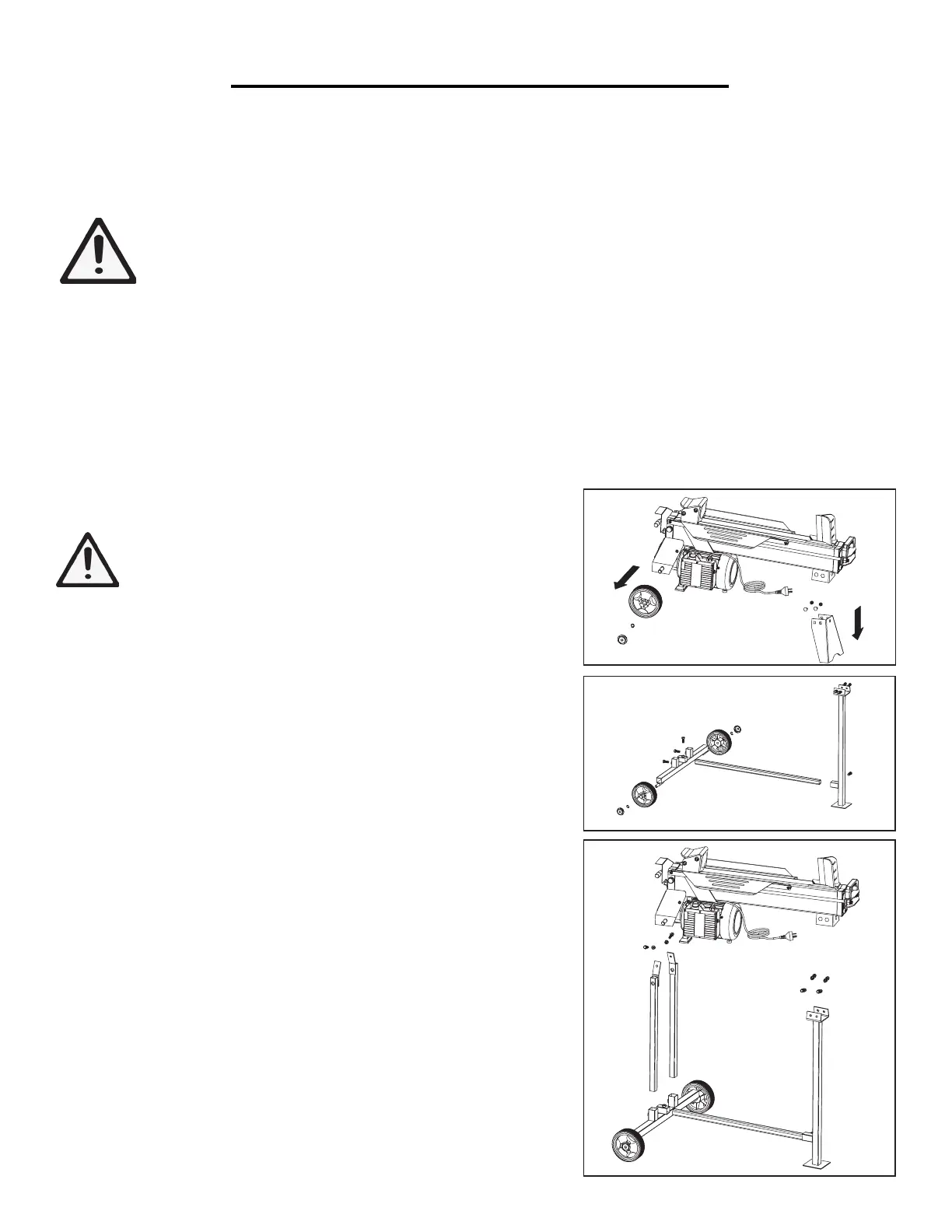

INSTALLING THE STAND
WARNING: Installing the stand requires two people. Do
not attempt alone.
1. Two people are required for this job. Convince a good friend or
even a trustworthy foe to help before starting.
2. Place the log splitter horizontally on the floor. Prepare a piece of
padding for underneath the splitter.
3. Disassemble the wheels and support leg. Remove the hub cap,
and take off the wheels and support leg from the machine’s body by
removing the cotter pins (Fig. 1).
4. Assemble the stand. Using the cotter pins, attach the wheels onto
the wheel axis of the stand. Connect and secure the stand together
using M10x 25 bolts (Fig. 2).
5. Install the log splitter onto the stand with M8 x 25 bolts, nuts and
washers (Fig. 3).
NOTE : Alternatively, you can carefully flip the unit over and install
the stand upside down. Make sure the bleed valve and all seals are
tight before you flip the log splitter. This will help you insert the bolt
for the rear legs as the space is very tight.
PREPARATION AND ASSEMBLY
NOTE: Do not discard the box or any packing material until all parts are examined and accounted for. Inspect
the unit for shipping damage.
If any part of the log splitter is missing or damaged, do not plug in or operate the unit until the damaged part is
repaired or replaced. Please call 1-800-232-1195 for assistance.
PREPARATION
1. Prepare the workplace where the machine will be located. A safe work area will require a flat surface and ample
room for the splitter and the logs. Make sure there’s a safe electrical connection within 25 feet of the workspace.
2. Carefully take the log splitter out of the box and place it securely on the firm, level ground.
3. The log splitter comes assembled with the support leg and handle. See the next section for the option to install
the body of the log splitter onto the stand.
WARNING: Lifting the log splitter is a two person operation. Once raised, make sure the log splitter
is stable before performing any assembly or maintenance.
Woodster GmbH - D-89335 Ichenhausen - Tel. 08223/4002 0 - Fax 08223/4002 20
1
2
3
4
390 5202 003
Fig. 1
Woodster GmbH - D-89335 Ichenhausen - Tel. 08223/4002 0 - Fax 08223/4002 20
1
2
3
4
390 5202 003
Fig. 3
9
Woodster GmbH - D-89335 Ichenhausen - Tel. 08223/4002 0 - Fax 08223/4002 20
1
2
3
4
390 5202 003
Fig. 2
