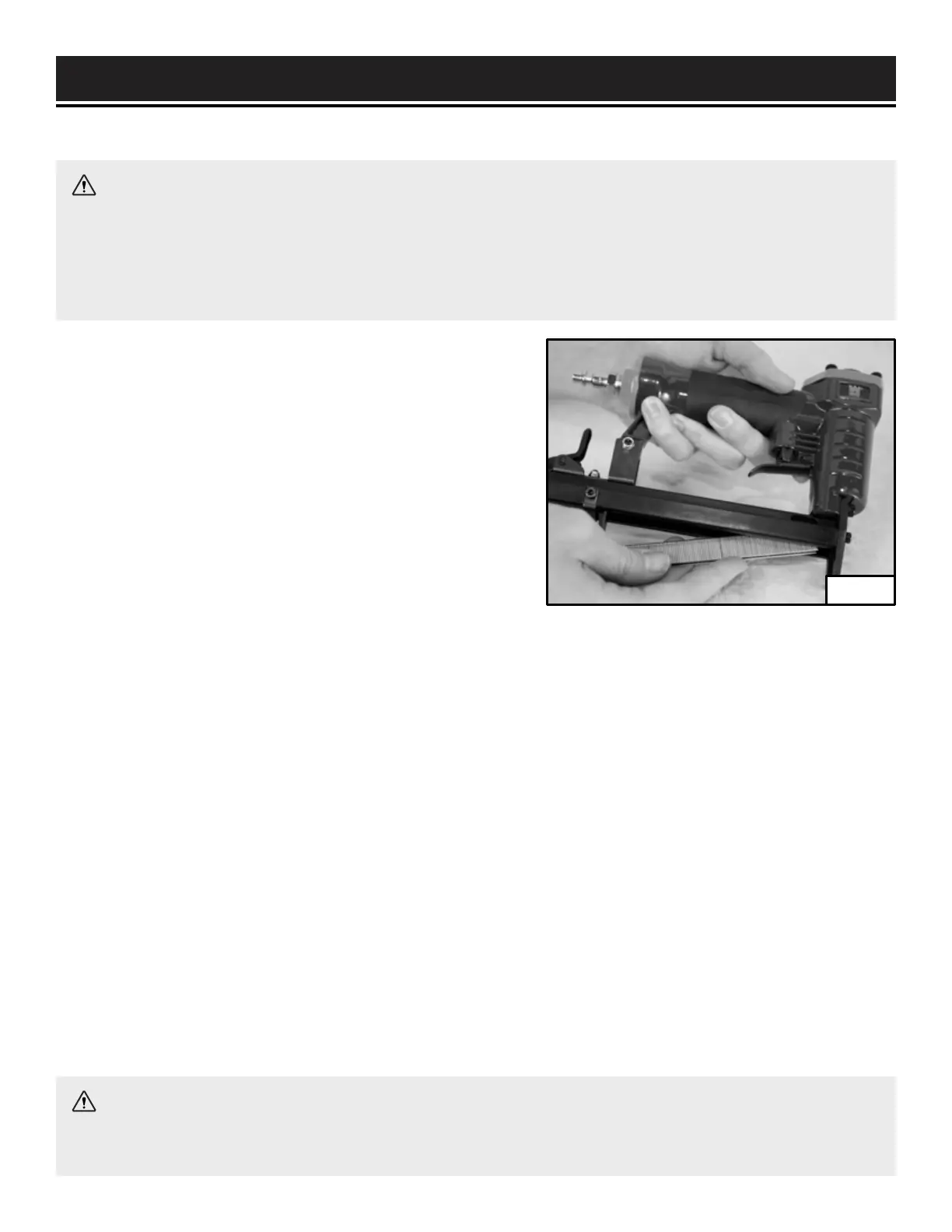

LOADING THE STAPLER (FIG. 3)
OPERATION
WARNING: TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION, BEFORE LOADING:
• You and other people in the work area must wear ANSI-approved safety goggles with side shields.
• Release the trigger.
• Connect the tool to a compressed air source.
• Attempt to fire the tool into a piece of scrap wood to ensure that it is incapable of firing any fasteners.
1. Only use the proper size and type of staple with this
stapler. Refer to the specifications table on p. 2 for the
correct staple dimensions.
2. Press the magazine lock to release it, then pull the
movable magazine downwards to open it.
3. Turn the stapler upside down. Place a full clip of
staples inside the magazine so the pointed ends of the
staples are directed away from the stapler.
4. Keep fingers clear while sliding the movable
magazine unit closed until it clicks shut.
5. Rotate the exhaust deflector to redirect exhaust air away from you.
GENERAL OPERATING INSTRUCTIONS
1. Always test the tool before each use.
2. If an automatic oiler is not used, add a few drops of 30W non-detergent air tool oil to the airline
connection before use. Add a few drops more after each hour of continual use.
3. Place the head of the stapler against the surface you wish to staple. Be sure to keep your hands,
fingers and other body parts away from the nozzle.
4. Press the trigger to activate the stapler.
5. If the tool requires more force to accomplish the task, verify that the tool receives sufficient,
unobstructed airflow (CFM) and increase the pressure (PSI) output of the regulator up to the
maximum air pressure rating of this tool.
CAUTION: TO PREVENT TOOL AND ACCESSORY FAILURE, RESULTING IN INJURY: Do not exceed
the tool’s maximum air pressure rating of 100 PSI. If the tool still does not have sufficient force at
maximum pressure and sufficient airflow, then a larger tool may be required.
10
Fig. 3
