WARNING: To avoid injury from accidental startups, switch off the tool and unplug the power cord
before adjusting, replacing accessories, cleaning or maintenance.

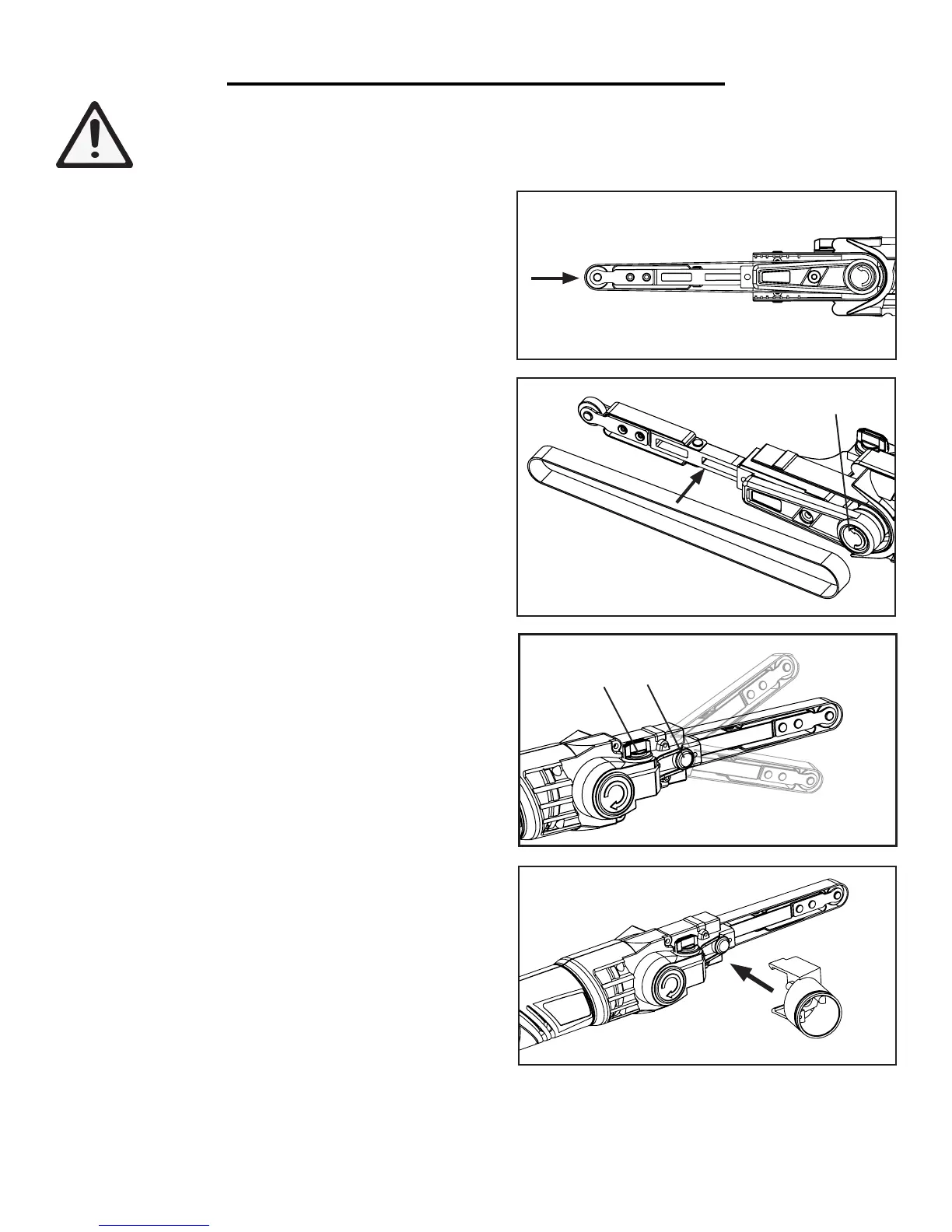

ASSEMBLY AND ADJUSTMENTS
ADJUSTING THE ARM ANGLE
1. Loosen the angle locking screw (Fig. 3 - 2) by turning it
counterclockwise.
2. Move the arm to the required angle.
3. Tighten the screw (clockwise) to the lock the arm in place.
USING DUST EXTRACTION
We recommend that you always use a dust extractor and an
approved face mask during sanding operations.
1. Match the groove on the dust extractor port with that on
the sander and attach the dust extractor port on the tool (Fig.
4). Check that it is securely installed.
2. Connect a dust extractor hose or dust bag with an inner
diameter of 1-1/4 inches (32 mm) to the dust extractor port.
8
1
2
1
INSTALLING THE SANDING BELT
1. Press the tip of the sander against a hard object to retract
the front roller (Fig. 1).
2. Insert the sanding belt on the rollers. Check that the arrow
on the inside of the sanding belt points in the same direction
as the arrow indicated on the tool (Fig. 2 - 1).
3. Press the belt tensioning lever (Fig. 3 - 1) to tension the
sanding belt.
WARNING: Do not use worn, damaged or clogged sanding
belts. Do not use the same sanding belt for metal and wood.
Metal particles embedded in the sanding belt will damage the
surface of the wood.
Fig. 1
Fig. 2
Fig. 3
Fig. 4
