Assembly and adjustments (continued)
Mounting table for use as belt sander
NOTE: The Table (69) may be used for both horizontal and vertical operations.
1. Remove Table from Machine Body using reverse procedures in step 1 of “Mounting table for
use as disc sander” section above.
2. Set Belt/Disc Sander in vertical position by loosening both Nuts (22). Raise the Belt Support
Housing (52). When it is vertical, tighten both Nuts (22) very tight to prevent the Belt Support

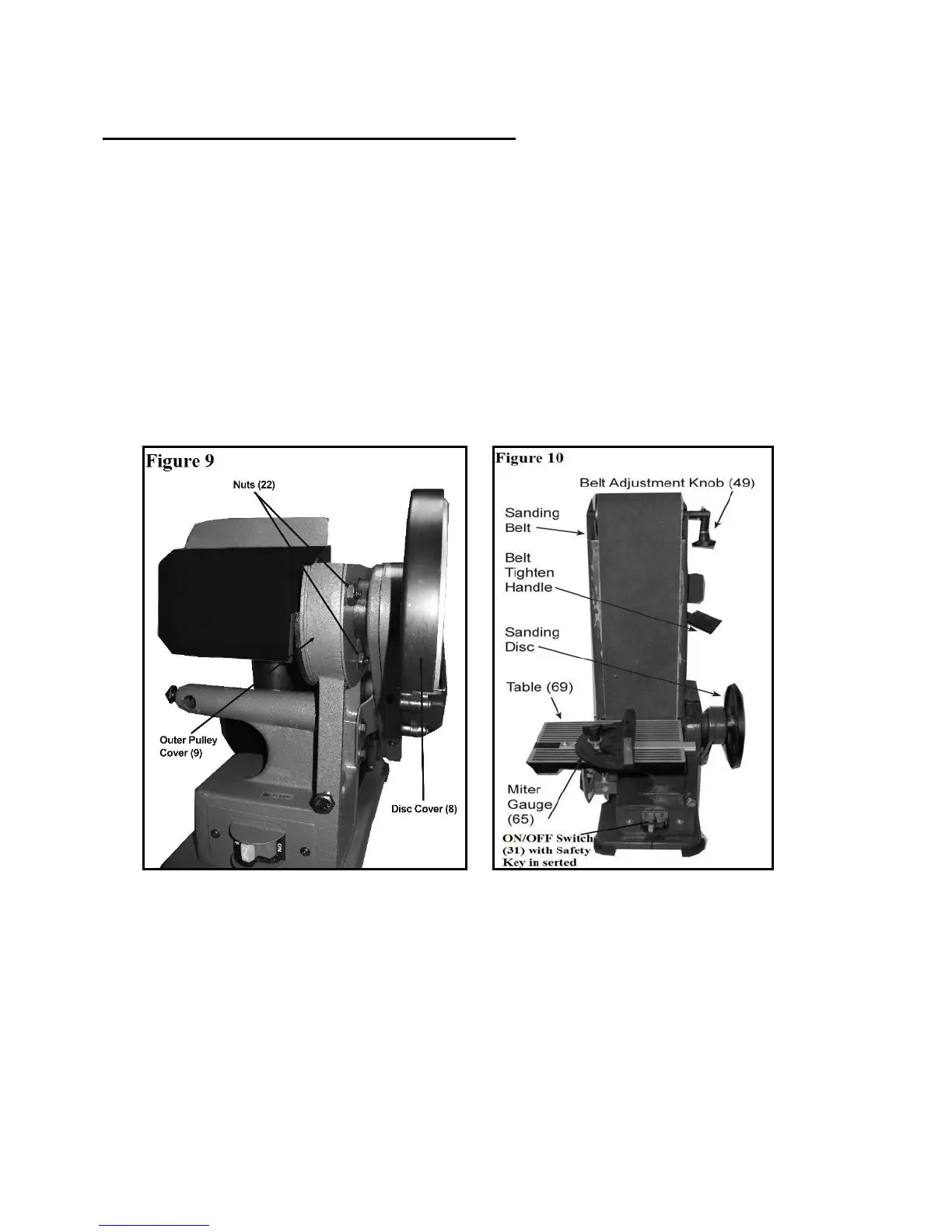

Housing (52) from slipping. (See Figures 9 & 10)
3. Insert Support Shaft (76) into the hole facing the belts and tighten Bolt (32) against flat side of
Support Shaft (76). (See Figures (9 & 10)
