Wen DF1100X User Manual

KNOW YOUR GENERATOR

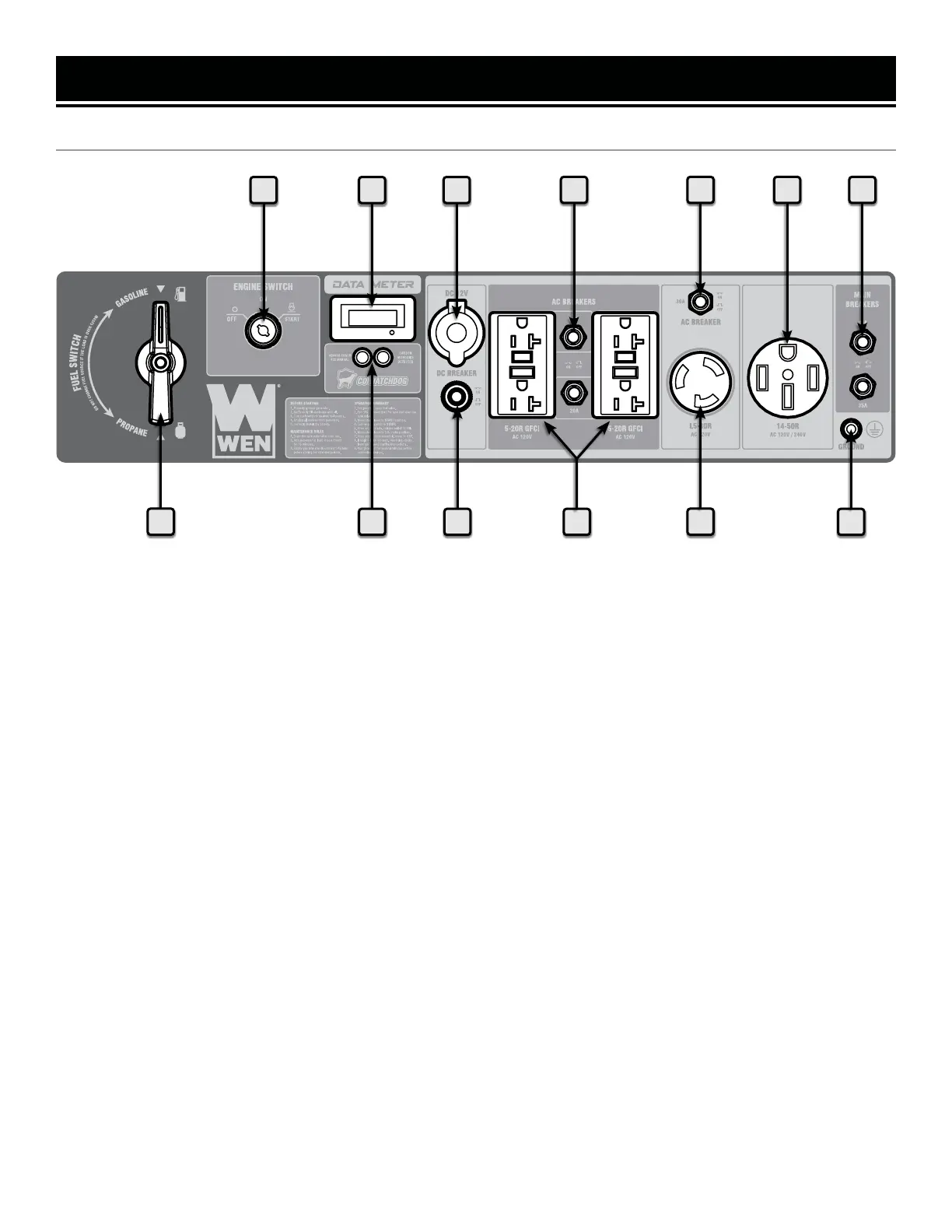

CONTROL PANEL
1 2
7
8
1. Engine Key Switch
Start and shut down the engine.
2. Data Meter
Displays voltage, frequency, total runtime (HHHH), and ses-
sion runtime (HH:MM). Press the MODE button to switch
between displays.
3. DC 12V Receptacle
Cigarette lighter style receptacle, 12V DC, 8A.
4. AC 20A Circuit Breakers
Thermal protector that protects the 5-20R receptacles from
overload.
5. AC 30A Circuit Breaker
Thermal protector that protects the L5-30 receptacle from
overload.
6. NEMA L14-50R 120V/240V 50A Receptacle
Connect electrical devices that run on 120V/240V, 60 Hz,
single phase, AC current.
7. Main Circuit Breakers
Push the button to reset the circuit.
8. Grounding Nut
Connection point for grounding the generator to the
earth. See p. 19 for more information.
9. NEMA L5-30R 120V 30A Twistlock Receptacle
Connect electrical devices that run on 120V, 60 Hz,
single phase, AC current.
10. NEMA 5-20R GFCI Duplex Receptacle
Connect electrical devices that run on 120V, 60 Hz,
single phase, AC current.
11. DC Circuit Breaker
Thermal protector that protects the DC circuit from
overload.
12. CO WATCHDOG Carbon Monoxide Monitor
Measures the accumulation of poisonous CO gas
while the generator is running. If the level of CO gas
gets too high, the CO Watchdog system will automati-
cally shut down the generator. See p. 25 for more de-
tails.
13. Fuel Selector Switch
Turn the dial to easily switch between gasoline or LPG
before operation.
3
13
6
1011
4 5
12
9
11
