Wen DF250iX

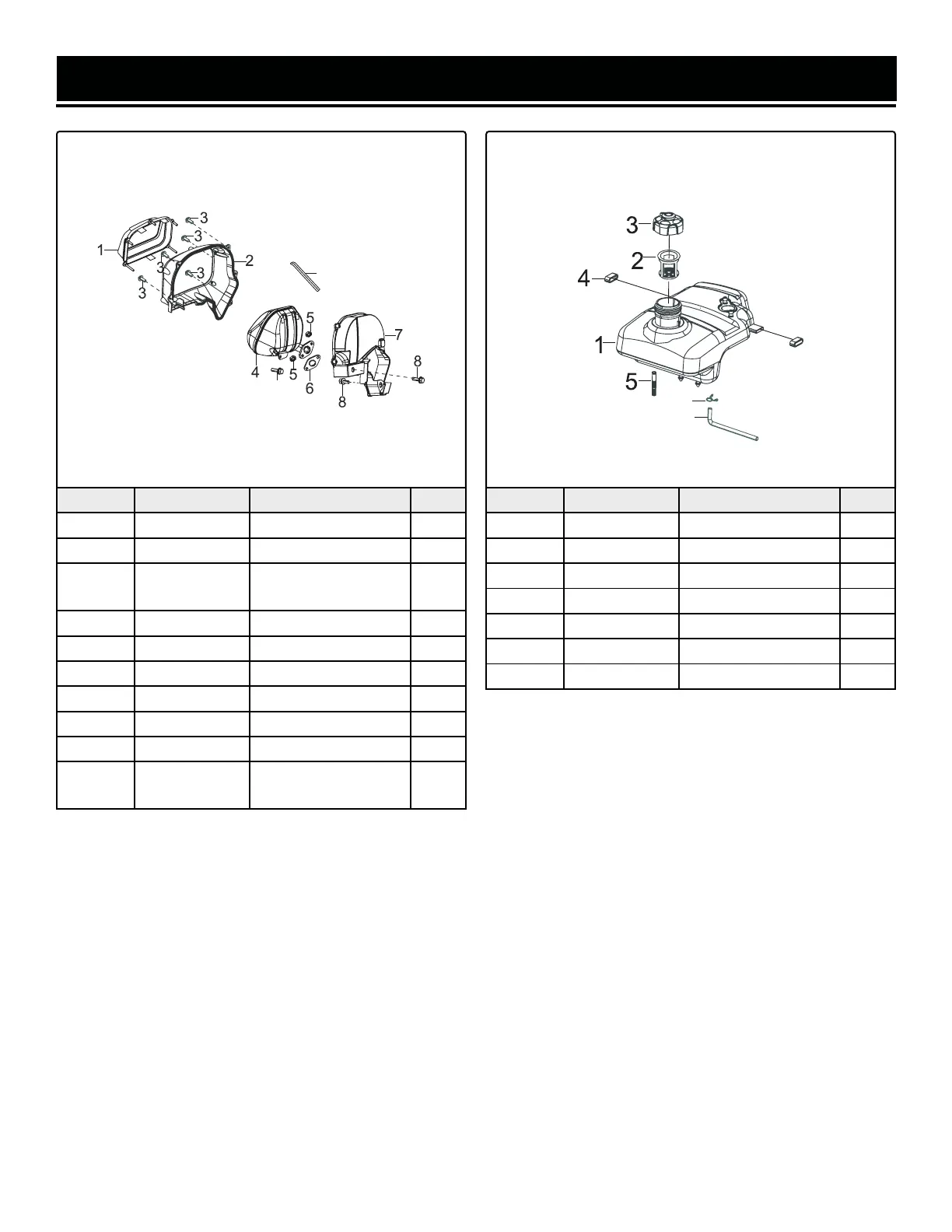

EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
9-1 56200-1501 Muffler Side Cover 1
9-2 56200-1502 Muffler Shroud 1
9-3 56200-1503
Self-Tapping Screw,
ST4.8x16
5
9-4 56200-1504 Muffler Assembly 1
9-5 56200-1505 Hex Nut, M6 2
9-6 56200-1506 Muffler Gasket 1
9-7 56200-1507 Muffler Cover 1
9-8 56200-1508B Bolt, M6x16 2
9-9 DF250i-0909 Shroud Seal 1
9-10 DF250i-0910
Flanged Hex Bolt,
M6x12
1
FIG. 9 - MUFFLER SUBASSEMBLY
No. Part No. Description Qty.
10-1 56200-0201 Fuel Tank 1
10-2 56200-0202 Fuel Filter 1
10-3 56200-0203 Fuel Tank Cap 1
10-4 56200-0206 Bushing 2
10-5 56200-0207 Strainer Element 1
10-6 56200-0208 Fuel Tube 1
10-7 56200-0210 Collar 1
FIG. 10 - FUEL TANK SUBASSEMBLY
