Wen DF250iX

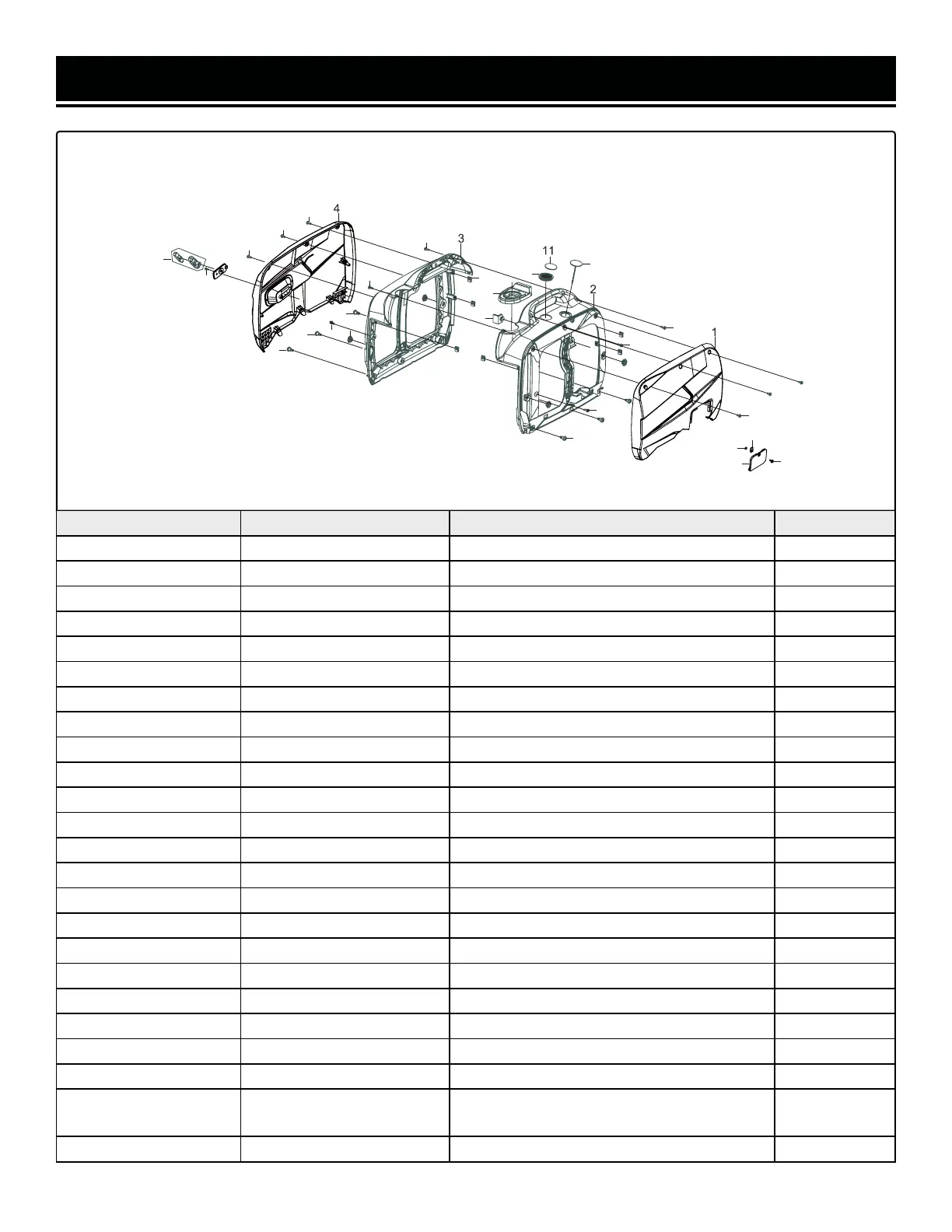

FIG. 13 - HOUSING
No. Part No. Description Qty.
13-1
DF250iX-1301 Right Side Panel 1
13-2 56200-0402 Right Shell 1
13-3 56200-0403 Left Shell 1
13-4 56200-0404B Left Side Panel 1
13-5 56200-0406 Step Bolt, M5x12 6
13-6 56200-0407 Step Bolt, M6x19 6
13-7 56200-0409 Fuel Tank Rubber Sleeve 4
13-8 56200-0410 Rubber Cushion 1
13-9 56200-0411 Gas Tank Opening Sleeve 1
13-10 56200-0412 Rubber Jacket 1
13-11 56200-0413 Gas Tank Opening 1
13-12 56200-0414 Rubber Jacket 2
13-13 56200-0416B Recoil Starter Guide 1
13-14 DF250i-1314 Countersunk Phillips Head Screw, M5x12 1
13-15 56200-0420 Recoil Starter Handle 1
13-16 DF250i-1316 Countersunk Phillips Head Screw, M4x16 1
13-17 56200-0422 Bolt, M6x12 2
13-18 56200-0423 Clip Nut 6
13-19 56200-0426B Panel Lock 1
13-20 56200-0424B Oil Access Panel 1
13-21 56200-0427B Nylon Nut, M5 1
13-22 56200-0425B Step Bolt, M5x16 1
13-23 DF250i-1323
Phillips Head Screw with Flat & Lock
Washer, M5x16
3
N.P. DF400i-1332 Primary LPG Regulator Hose Assembly 1
EXPLODED VIEW & PARTS LIST
45
5
5
5
13
15
14
6
6
6
16
7
17
12
18
9
8
10
5
23
6
17
19
20
21
22
23
23
