Wen DF250iX User Manual

EXPLODED VIEW & PARTS LIST

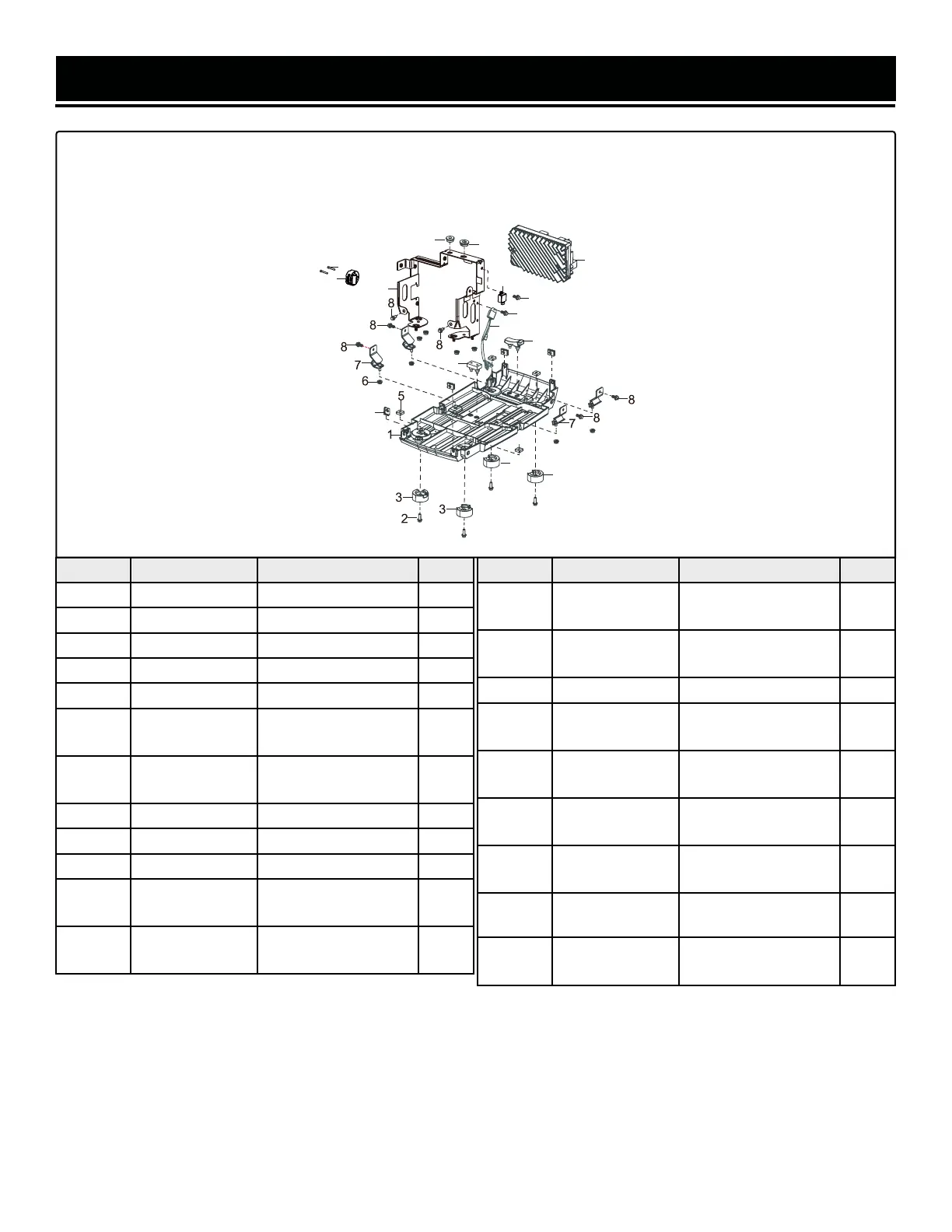

FIG. 14 - BOTTOM PLATE,
FRAME, & INVERTER
No. Part No. Description Qty.
14-1 56200-0501 Bottom Plate 1
14-2 56200-0502 Bolt, M6x14 4
14-3 56200-0503 Frame Seat 2
14-4 56200-0504 Frame Seat 2
14-5 56200-0505 Square Nut, M6 4
14-6 56200-1404
Flanged Hex Nut,
M6
8
14-7 56200-0507
Engine Frame
Cushion
4
14-8 56200-0617 Bolt, M6x12 6
14-9 DF250i-1409 Inverter 1
14-10 56225i-0519 Voltage Regulator 1
14-11 56200-0510
Cushioning Rubber
Bracket
1
14-12 56200-0509
Cushioning Rubber
Bracket
1
No. Part No. Description Qty.
14-13 56200-0409
Fuel Tank Rubber
Sleeve
1
14-14 56200-0516
Fuel Tank Rubber
Sleeve
1
14-15 56200-1210 Clip Nut 4
14-16 DF250iX-1416
Inverter Mounting
Bracket
1
14-17 56200-0629
Flanged Hex Bolt,
M6x14
1
14-18 DF250iX-1418
Flanged Hex Bolt,
M6x16
1
14-19 DF250iX-1419
CO Sensor Engine
Control Module
1
14-20 DF1200X-1620 CO Sensor Module 1
14-21 DF250iX-1421
Security Torx Head
Screw, M4
2
46
14
13
15
4
4
9
10
11
12
16
17
18
19
20
21
