EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
3-1 56310i-1701 Bolt, M6x20 4
3-2 56380i-0302
Cylinder Head Cover
Subassembly
1
3-3 56380i-0303
Gasket, Cylinder
Head Cover
1
3-4 56310i-0104
Spark Plug (Torch
F6RTC, NGK
BPR6ES)
1
3-5 56310i-0106
Cylinder Head Bolt,
M8x60
4
3-6 56380i-0306 Breather Tube 1
3-7 56380i-0307
Cylinder Head Subas-
sembly
1
No. Part No. Description Qty.
3-8 56310i-0109 Bolt, M8x34 2
3-9 56380i-0309 Stud Bolt, M6x105 2
3-10 56380i-0310
Gasket, Cylinder
Head
1
3-11 56380i-0311 Pin 2
3-12 56380i-0312 Limiter 1
3-13 56200-1202 Bolt, M6x12 2
3-14 56380i-0314 Gasket, Breather 1
3-15 56380i-0315 Breather Plate 1
No. Part No. Description Qty.
4-1 56380i-0401
Crankshaft
Assembly
1

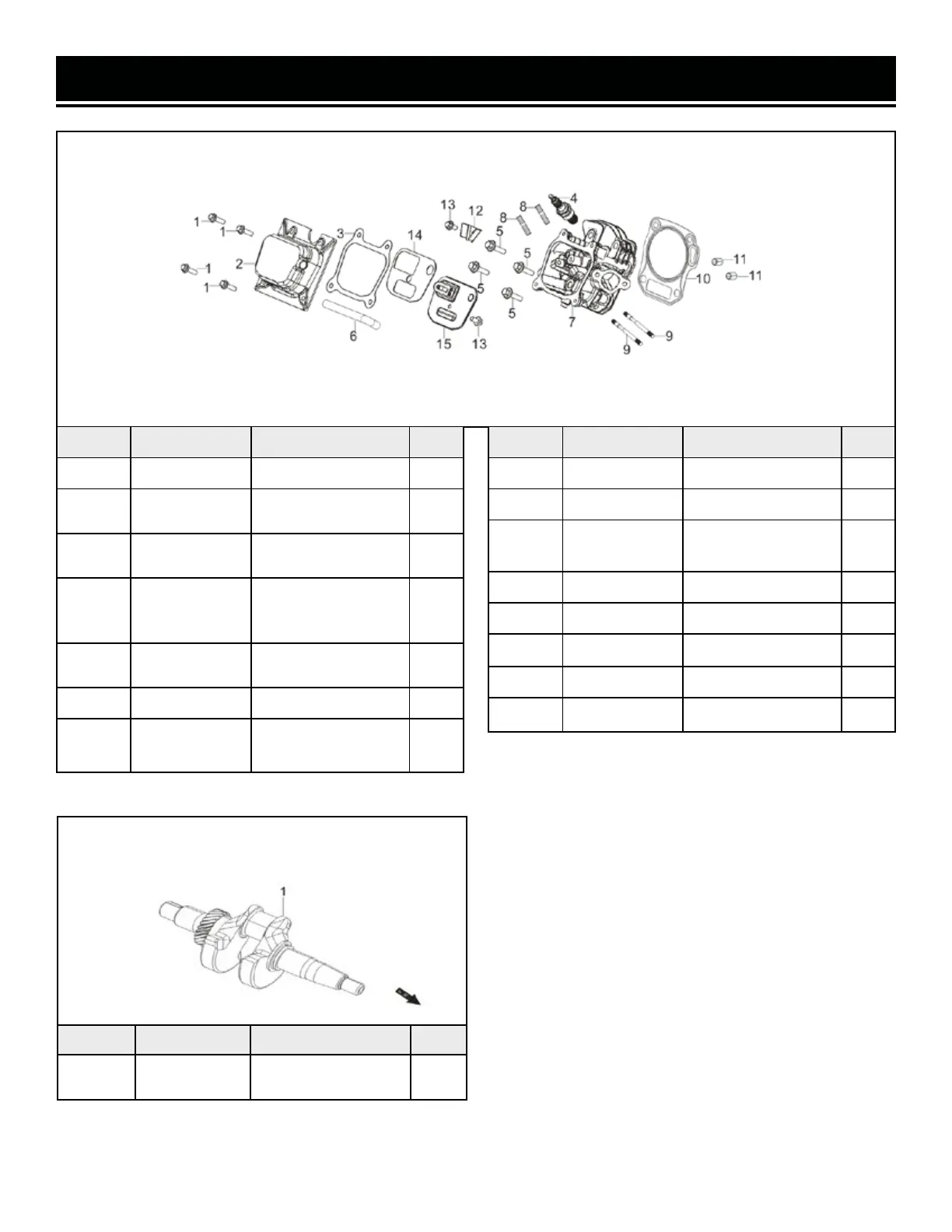

FIG. 3. CYLINDER HEAD ASSEMBLY
FIG. 4. CRANKSHAFT ASSEMBLY
43
