NOTE: Replacement parts can be purchased from wenproducts.com, or by calling our customer service at 1-(800)
232-1195, M-F 8-5 CST. Parts and accessories that wear down over the course of normal use are not covered by
the three-year warranty. Not all parts may be available for purchase.
No. Part No. Description Qty.
17-1 56380i-1701 Baseplate 1
17-2 56380i-1702
Engine Frame Damper
Seat
4
17-3 56310i-1201 Bolt, M6x16 4
17-4 56200-0408 Nut, M6 4
17-5 56380i-1705 Reinforcement Plate 1
17-6 56200-1202 Bolt, M6x12 2
17-7 56310i-1407 Cover Plug 1
17-8 56380i-1619 Nut, M5 4
17-9 56380i-1709 Cushion 1
17-10 56380I-1710 Left Support 1
17-11 56380I-1711 Right Support 1
17-12 56310i-1409
Left Engine Frame
Damper
2
17-13 56310i-1411
Right Engine Frame
Damper
2
17-14 56310i-1412 Bolt, M8x40 4
17-15 56310i-1404 Nut, M8 10
17-16 56380i-1716
Crankcase Airflow
Manifold
1
17-17 56380i-1717 Air Filter Support 1
17-18 56200-1202 Bolt, M6x12 2
17-19 56380i-1719 Shipping Bracket 4
17-20 56200-0506 Nut, M6 4
No. Part No. Description Qty.
18-1 56380i-1801 Outer Muffler Cover 1
18-2 56380i-1409 Bolt, M5x16 6
18-3 56380i-1803 Heat Insulator 1
18-4 56380i-1804 Inner Muffler Cover 1
18-5 56200-0406 Bolt, M5x12 6

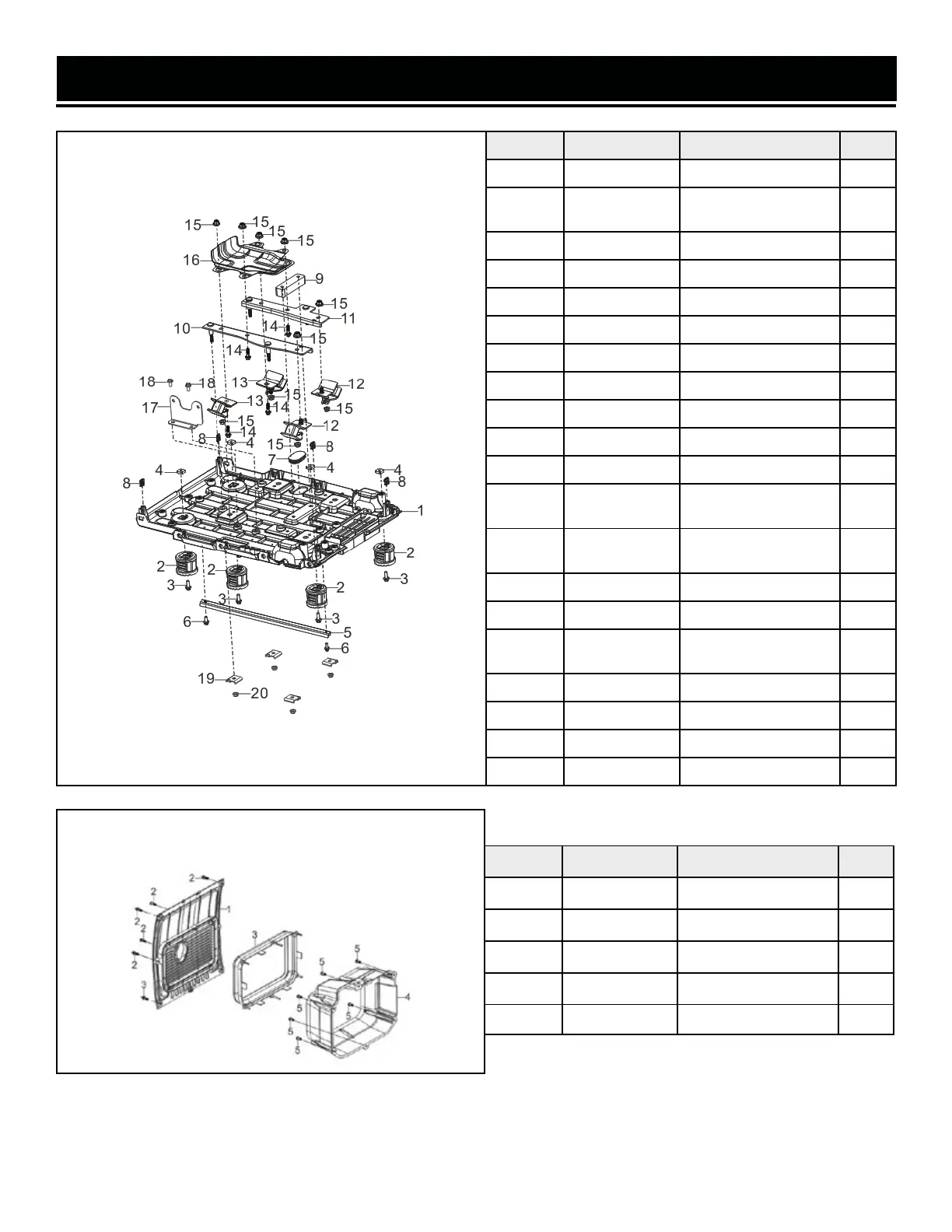

EXPLODED VIEW & PARTS LIST
FIG. 17. BASE PLATE
FIG. 18. MUFFLER COVER
52
To Next Page
