Wen DF500iX - Page 42

42

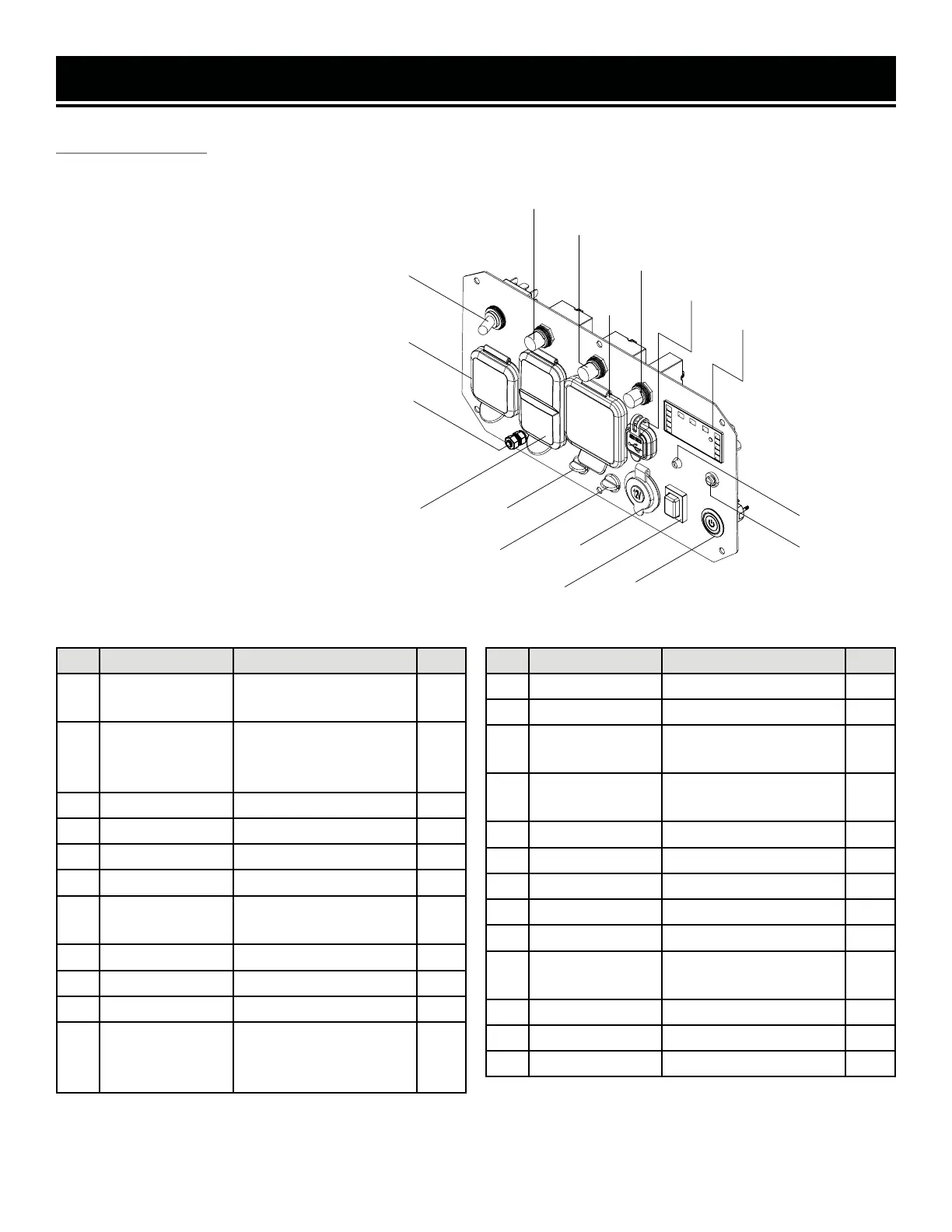

EXPLODED VIEW & PARTS LIST
CONTROL PANEL
NO. PART NO. DESCRIPTION QTY.
1 56500-207
Voltage Selector
Switch
1
2 DF500iX-302
NEMA L14-30R
120V/240V 30A AC
Receptacle
1
3 DF500iX-303 Nut, M6 1
4 56203i-005.11 Lock Washer, 6mm 1
5 56203i-005.12 Flat Washer, 6mm 1
6 56360iX-208 Grounding Stud 1
7 56360iX-209
Toothed Lock Washer,
6mm
1
8 56360iX-210 Flat Washer, 5mm 1
9 56360iX-211 Lock Washer, 5mm 1
10 56360iX-212 Nut, M5 1
11 DG4500iX-208
NEMA 5-20R 120V
20A AC Duplex
Receptacle
1
NO. PART NO. DESCRIPTION QTY.
12 56203i-005.14R Parallel Socket, Red 1
13 56203i-005.14B Parallel Socket, Black 1
14 DG4500iX-207
NEMA TT-30R 120V
30A AC Receptacle
1
15 56477i-218
12V DC Automotive
Outlet
1
16 56203i-005.4 Eco-Mode Switch 1
17 DF500iX-317 Start Button 1
18 56500-208 Breaker, AC 20A 1
19 GN9500-309 AC Breaker, 30A 1
20 56477i-217 DC Breaker, 8A 1
21 56477i-216
USB Receptacle
(2.1A / 1A)
1
22 DF500iX-322 Display Meter 1
23 56235iX-005.19 CO Sensor LED 1
24 56477i-215 Reset Button 1
NOTE: Not all parts may be available for purchase. Parts and accessories that wear
down over the course of normal use are not covered under the warranty.
1
2
3,4,5,6,7,8,9,10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
