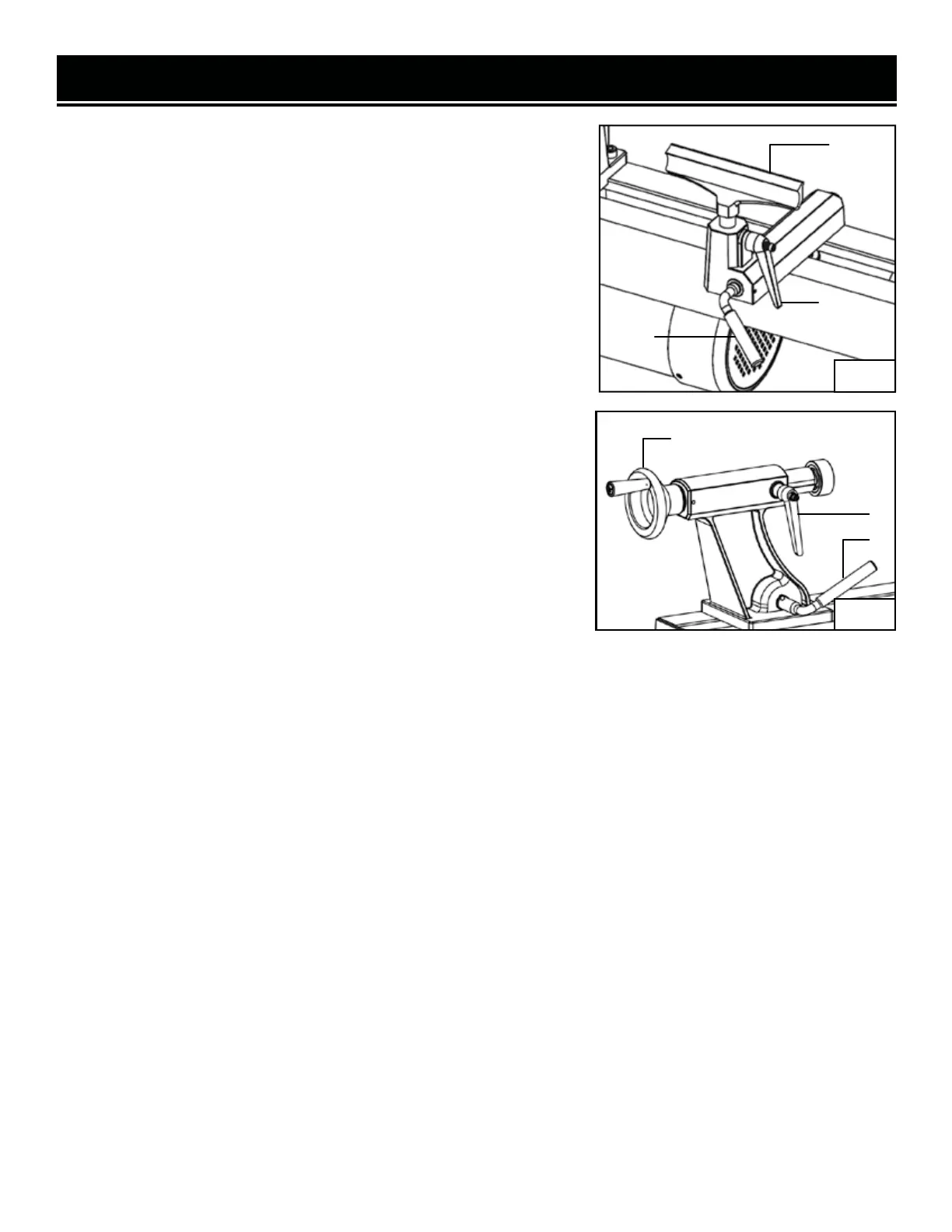

TOOL REST ADJUSTMENTS (FIG. K)
You can adjust the height, position and angle of the tool rest assembly
(Fig. K - 1) to suit your task at hand. To adjust the tool rest:
1. Loosen the small locking handle (Fig. K - 2) to raise and lower the tool
rest or to adjust its angle. Tighten the handle to secure the tool rest.
2. Loosen the locking lever (Fig. K - 3) on the tool rest base to slide the
base back and forth or to adjust its angle. Tighten the locking lever firmly
before operating the lathe.
NOTE: Adjust the height of the tool rest just below the center of the work-
piece, so that the tool will cut at the center of the workpiece.
TAILSTOCK ADJUSTMENTS (FIG. L)
1. Loosen the tailstock locking lever (Fig. L - 1) and slide the tailstock into
the desired position. Retighten the locking lever.
2. Loosen the quill locking handle (Fig. L - 2) to unlock the tailstock quill.
Use the handwheel (Fig. L - 3) to advance and retract the quill. Retighten
the quill locking handle.

ADJUSTMENTS
Fig. K
1
2
3
Fig. L
3
2
1
