Wen LA3424



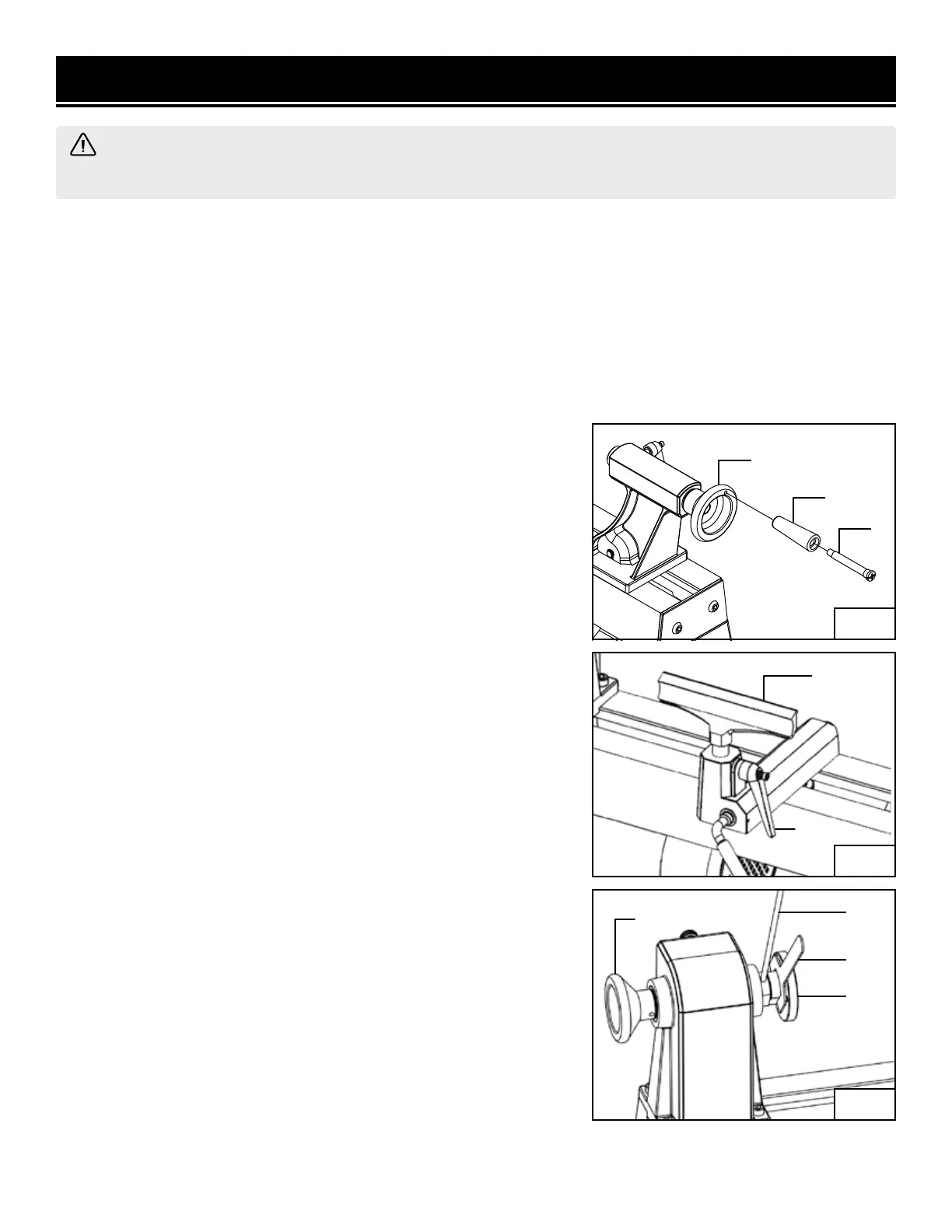

INSTALLING THE HANDLE (FIG. A)
1. Insert the handle screw (Fig. A - 1) through the handle (Fig. A - 2) and
into the hole of the handwheel (Fig. A - 3).
2. Tighten the handle screw using a flathead screwdriver (not included).
INSTALLING THE TOOL REST (FIG. B)
1. Loosen the locking handle (Fig. B - 1) and insert the tool rest (Fig.
B - 2) into the tool rest base.
2. Adjust the tool rest height up or down to the desired position and
then tighten the locking handle (Fig. B - 1).
INSTALLING/REMOVING THE FACE PLATE (FIG. C)
1. Mount the face plate (Fig. C - 1) onto the spindle by screwing it clock-
wise as far as it will go onto the spindle threads.
2. Then insert the knockout rod (Fig. C - 2) into the hole to lock the
spindle and use the wrench (Fig. C - 3) to fully tighten the face plate.
To remove the face plate, insert the knockout rod into the hole and use
the wrench to loosen the face plate.
1
ASSEMBLY
WARNING: To prevent injury from accidental operation, make sure the tool is switched OFF and un-
plugged from the power source before assembling or making any adjustments.
REMOVING THE ANTI-RUST GREASE
The lathe bed and centers have been coated with grease to prevent them from rusting.
1. Remove the excess oil and grease by wiping it off with a clean cloth.
2. Remove any residue with a rag moistened with acetone, kerosene, or other removal agent. Wear gloves to protect
your skin. Do not use gasoline, or cellulose-based solvents such as paint thinner or lacquer thinner, as these will
damage the painted surfaces.
3. Apply a light coat of good-quality paste wax to the surfaces to guard against rust and corrosion.
Fig. A
Fig. B
Fig. C
1
3
2
1
2
3
2
1
9
