9

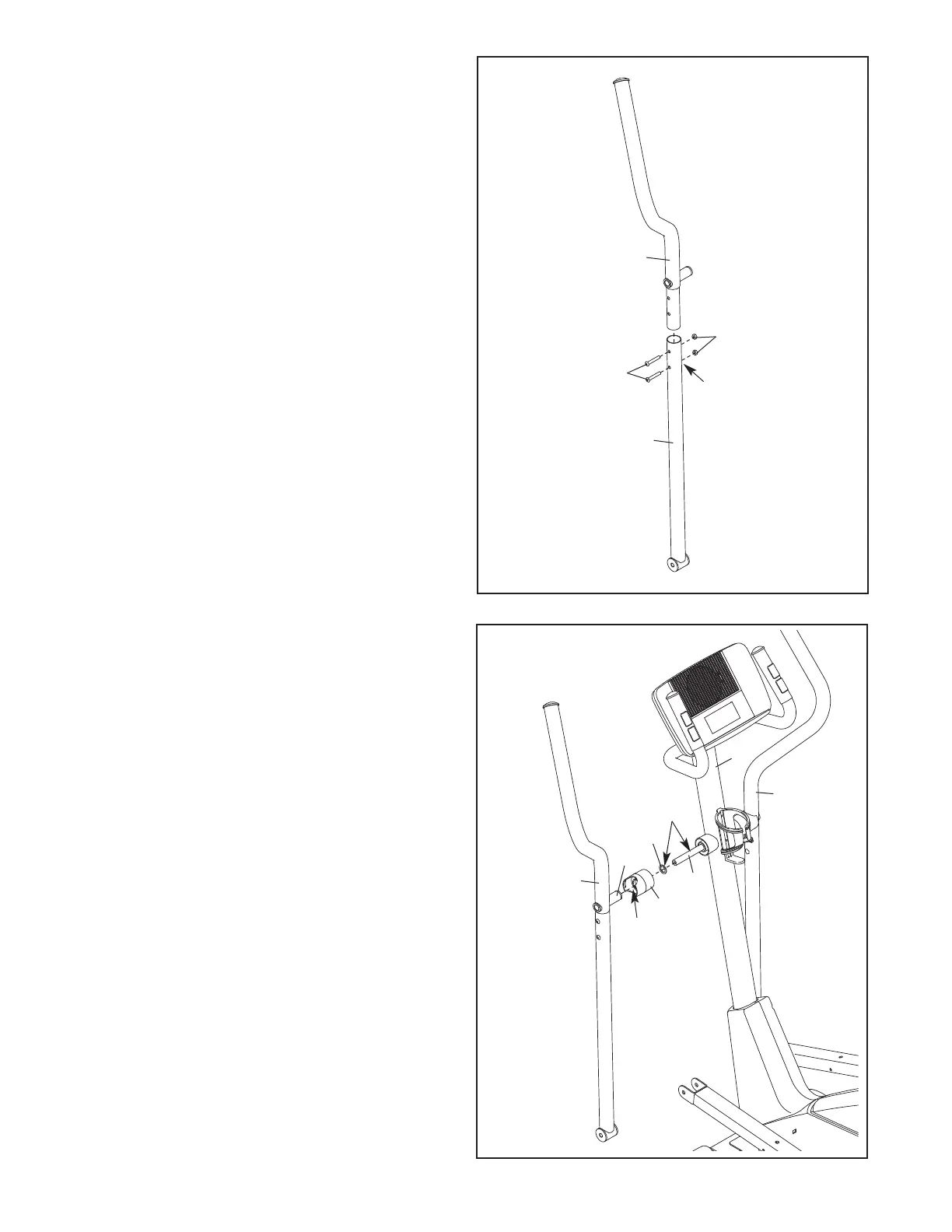

7. Identify the Left Upper Body Arm (9), which is
marked with a “Left” sticker.
I
nsert the Left Upper Body Arm (9) into an
Upper Body Leg (79). Make sure that the
h
exagonal holes are in the indicated loca-
tion.
Attach the Left Upper Body Arm (9) to the
Upper Body Leg (79) with two M8 x 45mm
Button Bolts (50) and two M8 Locknuts (46).
Make sure that the Locknuts are inside the
hexagonal holes. Do not tighten the Button
Bolts yet.
Repeat this step for the Right Upper Body
Arm (not shown) and the other Upper Body
Leg (not shown).
8. Apply a generous amount of the included
grease to the Pivot Axle (97) and to two Wave
Washers (95).
Insert the Pivot Axle (97) into the Upright (2).
Slide a Upper Body Arm Spacer (25) onto the
short tube on the Left Upper Body Arm (9), and
rotate the Upper Body Arm Spacer so that the
small arrow is pointing toward the floor.
Slide a Wave Washer (95) onto the left end of
the Pivot Axle (97). Then, slide the Left Upper
Body Arm (9) onto the left end of the Pivot Axle.
Repeat this action for the Right Upper Body
Arm (10).
7
9
50
46
Hexagonal
Holes
79
8
2
9
10
Grease
Tube
Arrow
97
25
95
