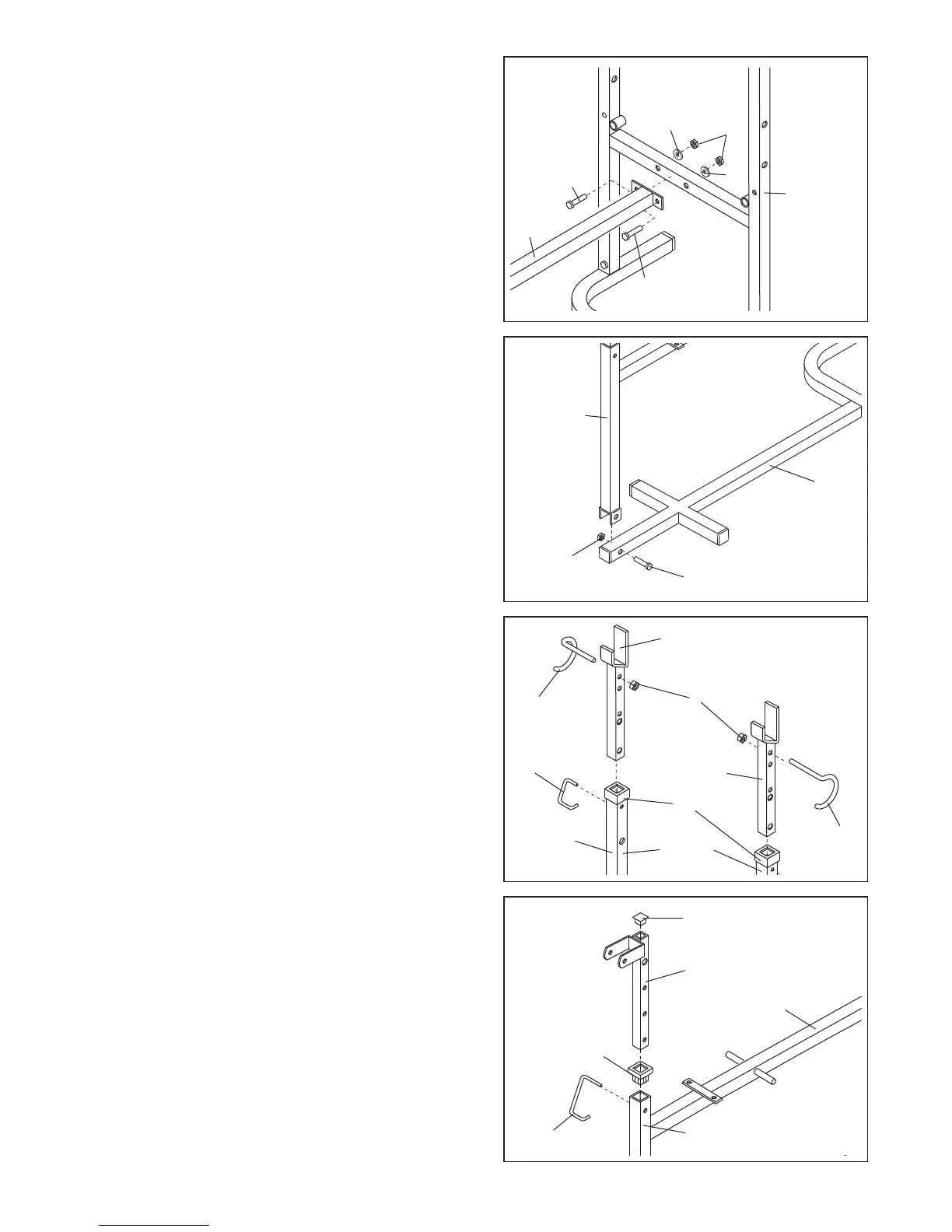

3. Attach the Bench Frame (8) to the “H”-frame (5) with
two M8 x 52mm Bolts (6), two M8 Washers (23), and
two M8 Nylon Locknuts (7).
Do not tighten the
Nylon Locknuts yet.
7
23
23
8
6
6
5
3
4. Attach the Bench Frame (8) to the Base (3) with an
M8 x 55mm Bolt (38) and an M8 Nylon Locknut (7).
Tighten the Bolts and Locknuts used in steps 1 to
4.
8
7
3
38
4
5. Attach the Right Barbell Hook (14) to a Weight Rest
(15) with an M8 Nylon Locknut (7).
Attach the Left Barbell Hook (40) to the other Weight
Rest (15) with an M8 Nylon Locknut (7).
Press two Upright Bushings (48) onto the top of the
“H”-frame (5).
Insert a Weight Rest (15) into each of the uprights on
the “H”-frame (5). Secure each Weight Rest with an
Adjustment Clip (16).
Make sure that the Weight Rests (15) are at the
same height.
5
15
16
5
Upright
40
15
7
14
6.
Insert a 25mm Square Inner Cap (17) into the top of
the Leg Lever
T
ube (18).
Press a Leg Lever Bushing (19) into the top of the
front leg on the Bench Frame (8). Insert the Leg
Lever
T
ube (18) into the front leg and secure it with
the Large Adjustment Clip (20).
6
19
8
17
18
Front Leg
20
