Weslo Bench 400 - M10 Nylon

8

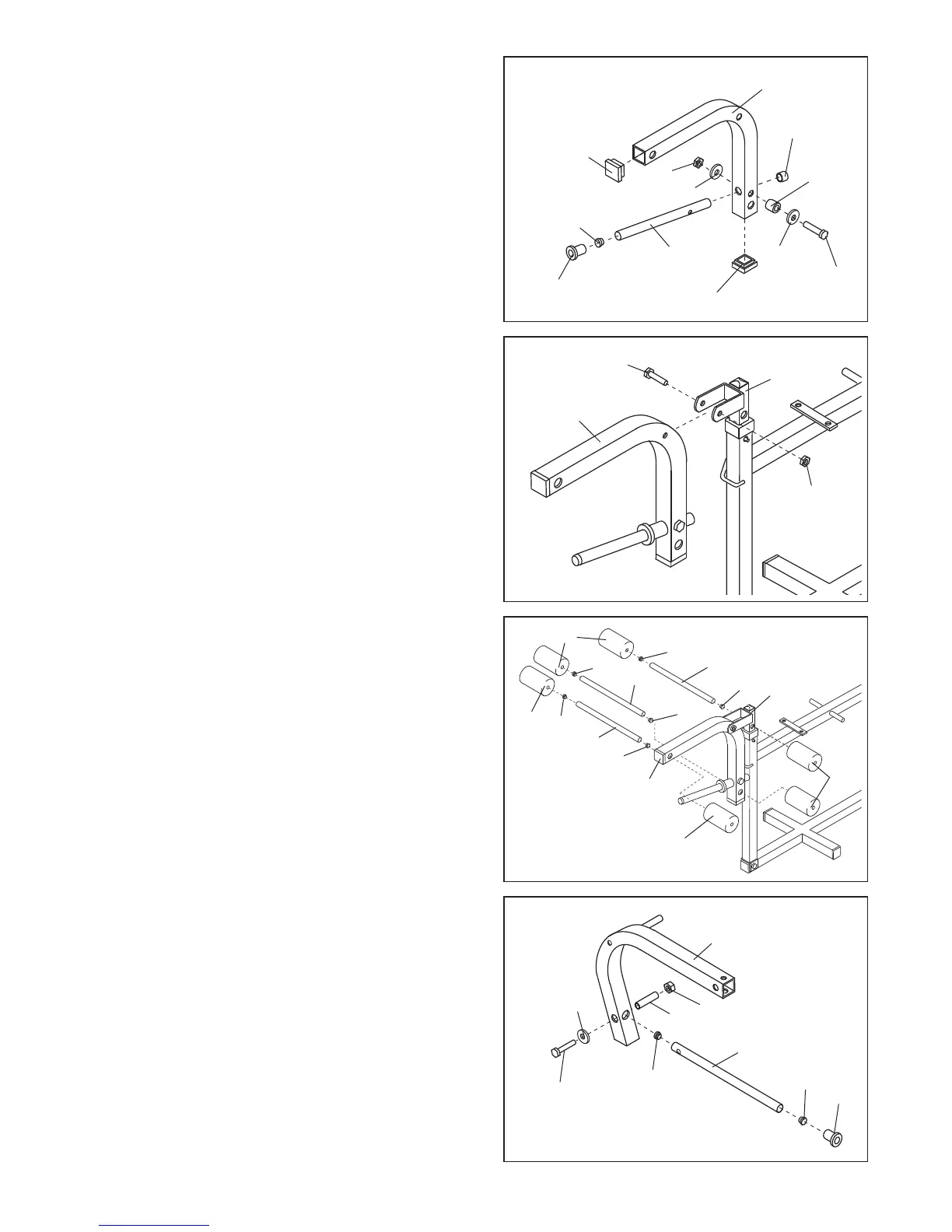

8. Lubricate the M10 x 63mm Bolt (28) with petroleum
jelly or another type of grease. Attach the Leg Lever
(27) to the bracket on the Leg Lever Tube (18) with
the Bolt and the M10 Nylon Locknut (29).
Do not
overtighten the Nylon Locknut; the Leg Lever
must be able to pivot easily.
8
29
28
18
27
10.
Press a 25mm Round Inner Cap (24) into each end of
a Butterfly W
eight
T
ube (35).
Attach the Butterfly Weight Tube (35) to the Left
Butterfly
Arm (36) with an M8 x 1
16mm Bolt (34), an
M8 W
asher (23), a 14.5mm x 72mm Plastic Spacer
(33), and an M8 Nylon Locknut (7).
Slide a W
eight Stop (26) onto the Butterfly W
eight
Tube (35).
10
34
23
24
24
36
35
26
7
33
9. Press a 19mm Round Inner Cap (44) into each end of
the two Short Pad Tubes (30) and the Long Pad Tube
(32).
Insert the two Short Pad Tubes (30) into the holes in
the Leg Lever (27). Slide two Large Foam Pads (31)
onto each Short Pad T
ube.
Insert the Long Pad
Tube (32) into the hole in the Leg
Lever Tube (18) as shown. Slide two Large Foam
Pads (31) onto the Long Pad Tube.
9
31
30
31
27
32
18
31
30
44
44
44
44
44
44
31
7. Attach the Weight Tube (21) to the Leg Lever (27) with
an M8 x 52mm Bolt (6), a 13mm x 7mm Spacer (22),
two M8 W
ashers (23), and an M8 Nylon Locknut (7).
Press a 25mm Round Inner Cap (24) into the indicat
-
ed end of the Weight Tube (21). Press a 25mm
Round Angle Cap (25) onto the other end of the
Weight Tube. Slide a Weight Stop (26) onto the
Weight Tube.
Press a 38mm Square Inner Cap (4) into each end of
the Leg Lever (27).
7
4
24
21
27
22
25
26
6
4
23
7
23
