9

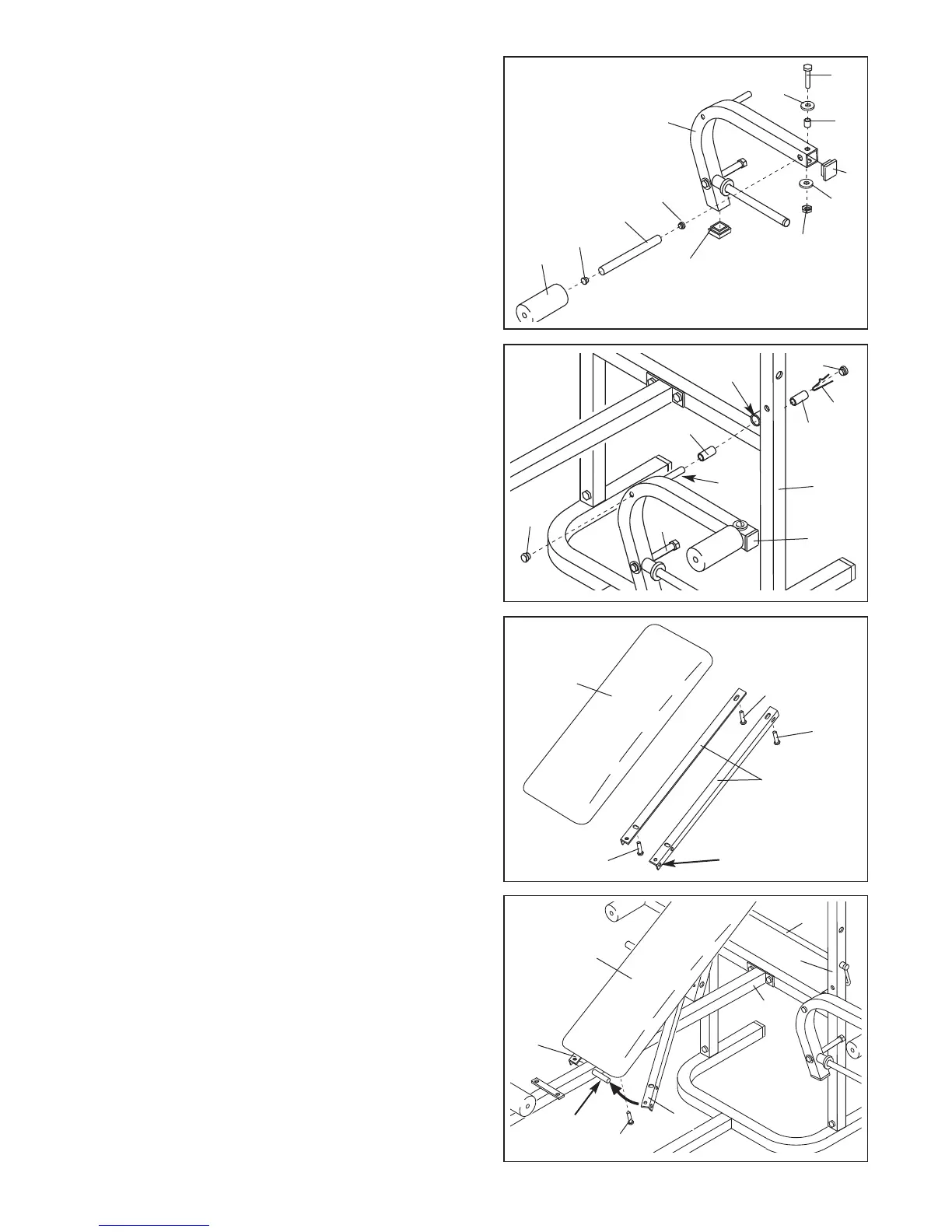

12. Press two 29mm Bushings (42) into the indicated
welded tube on the “H”-frame (5). Slide the tube on
the Left Butterfly Arm (36) into the Bushings.
Note: Make sure the Plastic Spacer (33) is outside
the “H”-frame (5).
Use a standard screwdriver to insert a Spring Clip
(43) into the end of the tube on the Left Butterfly Arm
(36), so that the button on the Spring Clip snaps into
the hole in the tube.
Press a 22mm Round Inner Cap (41) into each end of
the tube on the Left Butterfly Arm (36).
Repeat steps 10 through 12 for the Right Butterfly
Arm (45, not shown).
12
49
43
Tube
49
36
42
5
33
Tube
13. Attach the Backrest Brackets (11) to the Backrest (10)
with three M6 x 16mm Screws (9). Do not tighten
the Screws yet.
Make sure that the Backrest Brackets (1
1) are ori-
ented exactly as shown in the drawing. Note that
the threaded nuts in the Backrest (10) are closer
to one end of the Backrest. The round holes in
the Backrest Brackets must be pointed towards
this end of the Backrest, so that they extend
beyond the Backrest.
13
9
10
1
1
9
9
14.
Insert the
Adjustment
T
ube (12) into the centre set of
adjustment holes in the “H”-frame (5). Rotate the
Adjustment
T
ube to the locked position, with the lock
-
ing pin wrapped around the “H”-frame.
Rest one end of the Backrest (10) on the
Adjustment
T
ube (12). Slide the Backrest Bracket (1
1) that is
attached with two screws onto the welded pin on the
Bench Frame (8). Then, pivot the other Backrest
Bracket over the welded pin. Fasten the Backrest
Bracket to the Backrest with the remaining M6 x 16mm
Screw (9).
Tighten all four Screws in the Backrest
Brackets.
14
Round Holes
Pin
11
9
11
8
10
5
12
11. Press a 19mm Round Inner Cap (44) into each end of
the Butterfly Pad Tube (37).
Slide the Butterfly Pad Tube (37) into the indicated
hole in the Left Butterfly Arm (36). Secure the Pad
Tube with an M8 x 52mm Bolt (6), a 13mm x 10mm
Spacer (39), two M8 W
ashers (23), and an M8 Nylon
Locknut (7).
Wet then end of the Butterfly Pad Tube (37) with
soapy water. Slide a Small Foam Pad (46) onto the
Butterfly Pad Tube.
Press a 38mm Square Inner Cap (4) into each end of
the Left Butterfly Arm (36).
1
1
36
23
4
6
23
39
4
7
37
44
44
46
42
