6
ASSEMBLY
A
ssembly requires two persons.
S
et the treadmill in a cleared area and remove all packing materials.
D
o not
remove the long wire inside of the right handrail yet. In addition, do not dispose of the packing materials
until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance
lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the
shipping carton. This does not affect treadmill performance. If there is lubricant on top of the walking belt, simply
wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.

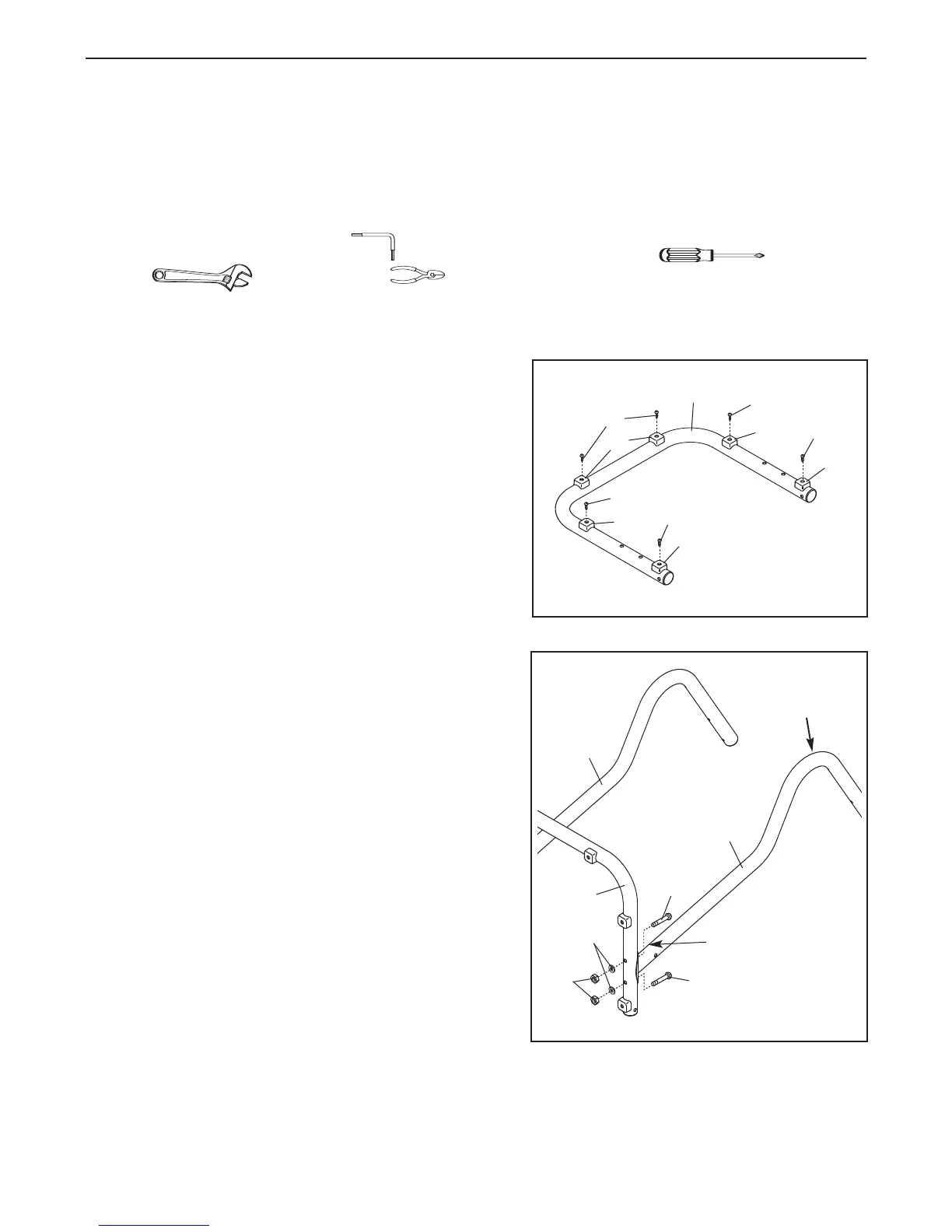

Assembly requires the included hex key and your own phillips screwdriver , adjustable
spanner , and wire cutters .
Note: To identify small parts used during assembly, see the PART IDENTIFICATION CHART in the center of
this manual. Some parts may be preassembled.
1. Attach the six Base Pads (19) to the bottom of the Base
(71) with six Base Pad Screws (42).
2. Have a second person hold the Base (71) in the position
shown.
Identify the Right Handrail (6), which has a large hole near
the lower end.
Hold the Right Handrail so the bend is in
the position shown.
Attach the Right Handrail to the
Base (71) with two Handrail Bolts (12), Handrail Washers
(30), and Nuts (17). Do not tighten the Handrail Bolts
yet.
Attach the Left Handrail (7) to the Base (71) in the same
way.
71
42
42
19
19
1
2
42
42
19
42
19
19
6
17
Large
Hole
71
12
12
30
7
Bend
To Next Page
