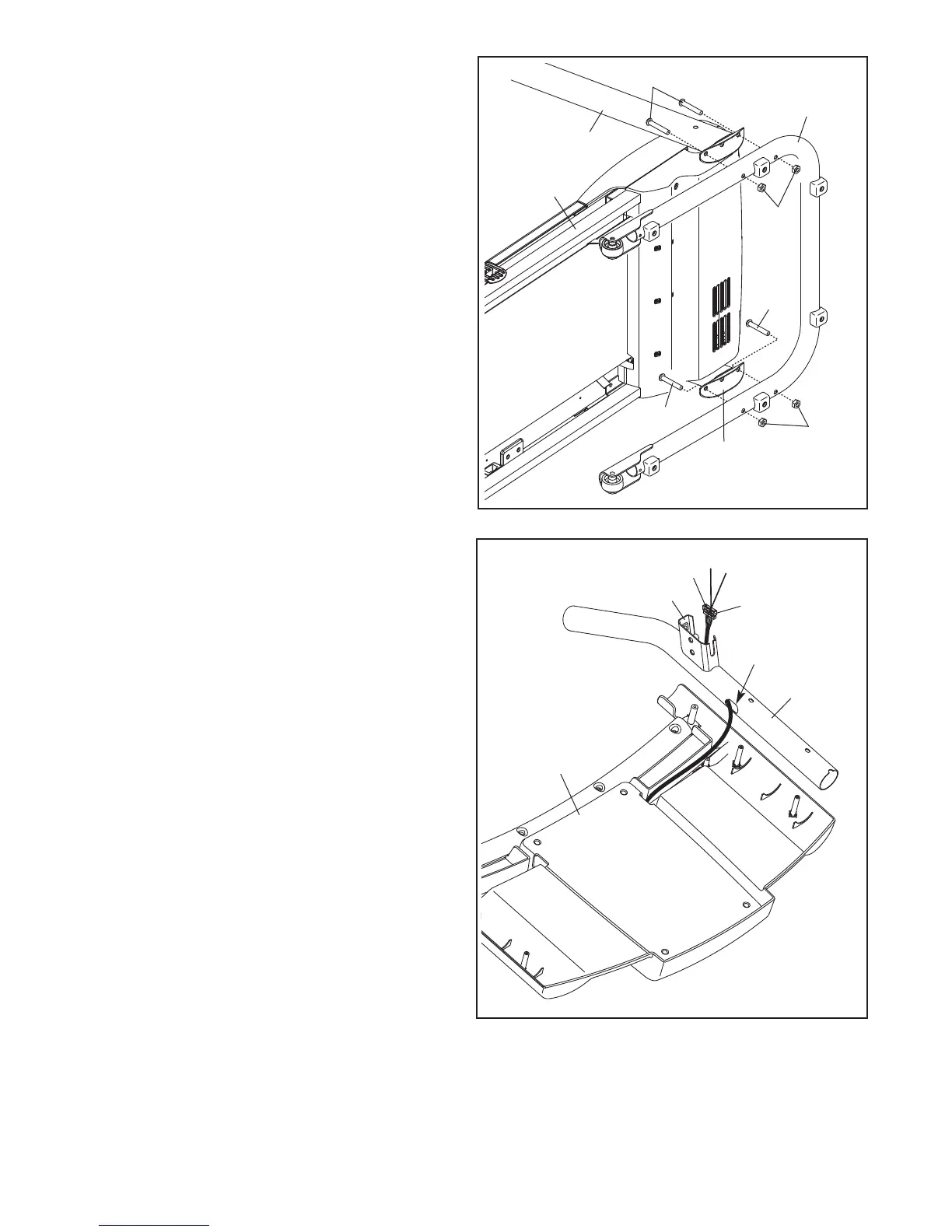

1. With the help of a second person, carefully tip
the treadmill onto its side. Unfold the Frame (51)
away from the Uprights (53, 54).
Orient the Base (52) as shown. Attach the Base
t
o the Left Upright (53) and the Right Upright
(54) with four M10 x 58mm Bolts (2) and four
M10 Nuts (73). Start all four Nuts, and then
tighten them.
With the help of a second person, carefully tip
the treadmill so that the Base (52) is flat on the
floor.
73
52
73
2
2
2
53
2. Set the console assembly face down on a soft
surface to avoid scratching it.
Identify the Right Handrail (33), which has a
large hole in the location shown. Hold the Right
Handrail near the console assembly.
Next, insert the console wire into the large hole
in the side of the Right Handrail (33). Using
needlenose pliers, carefully grasp the connector
and pull the console wire out of the hole near
the bracket on the Right Handrail.
2
Console Wire
Console
Assembly
Connector
Large
Hole
33
Bracket
54
51
1
To Next Page
