10

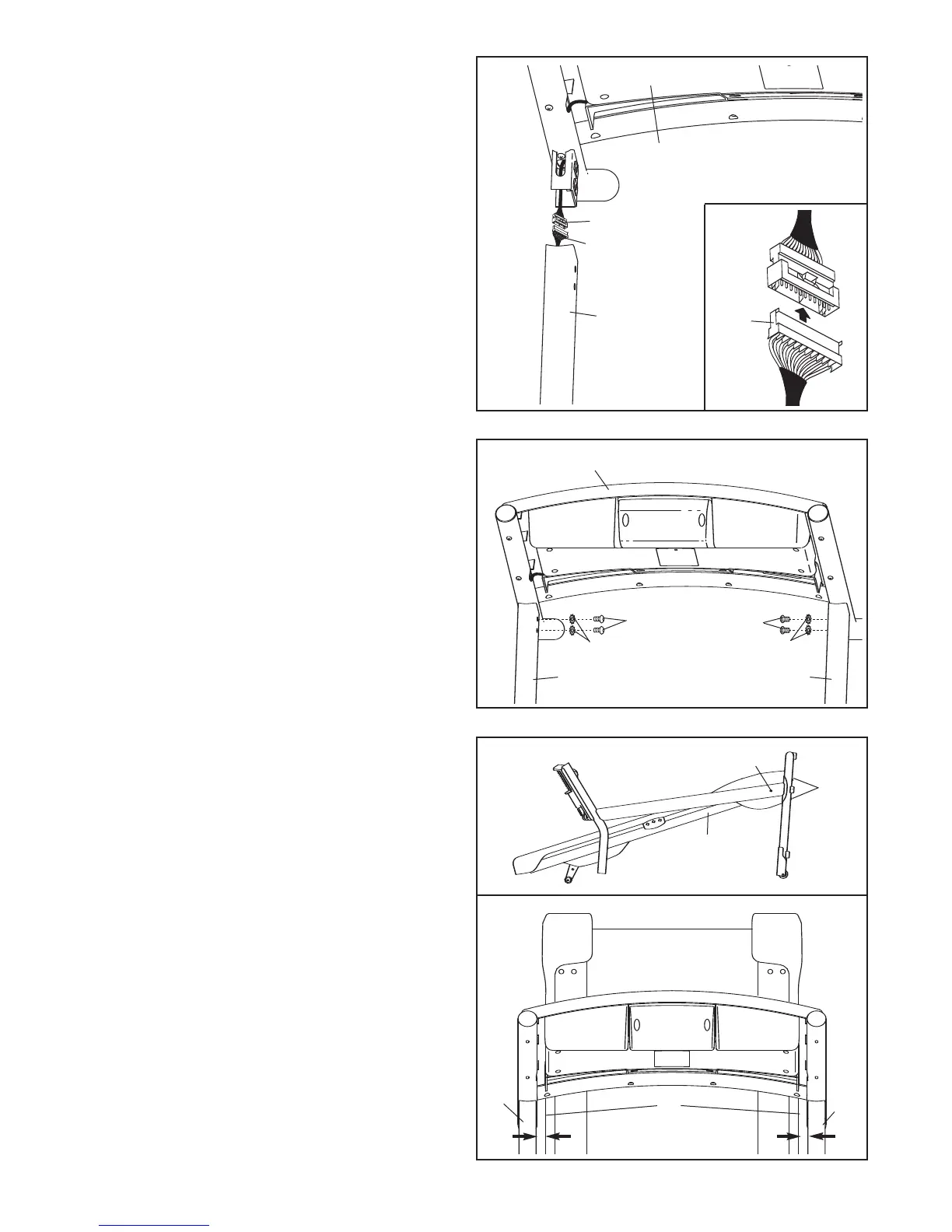

9. Set the Console (91) on the Uprights (53, 54).
Make sure that no wires are pinched. Start
four Handrail Bolts (8) with four Handrail Star
Washers (5) into the Uprights as shown.
With the help of a second person, carefully
lower the Uprights (53, 54) to the floor.
9
8
8
5
5
91
54
53
8
. With the help of a second person, hold the Console
(91) near the Right Upright (54).
Remove the wire tie from the Wire Harness (98).
C
onnect the Wire Harness to the console wire.
Make sure to connect the connectors prop-
erly (see drawing 8a). The connectors should
slide together easily and snap into place. If
they do not, turn one connector and try again. IF
THE CONNECTORS ARE NOT CONNECTED
PROPERLY, THE CONSOLE MAY BE DAM-
AGED WHEN THE POWER IS TURNED ON.
Insert the connectors and the excess wire down-
ward into the Right Upright (54).
8
91
54
98
C
onsole Wire
98
8a
10.
See the lower drawing. Position the Uprights
(53, 54) so that the treadmill Frame (51) is cen-
tered between the Uprights.
Firmly tighten the two Frame Bolts (1) and the
four Upright Bolts (2).
Be careful not to over
-
tighten the Frame Bolts.
10
2
51
1
53
51
54
Top View
To Next Page
