6
,

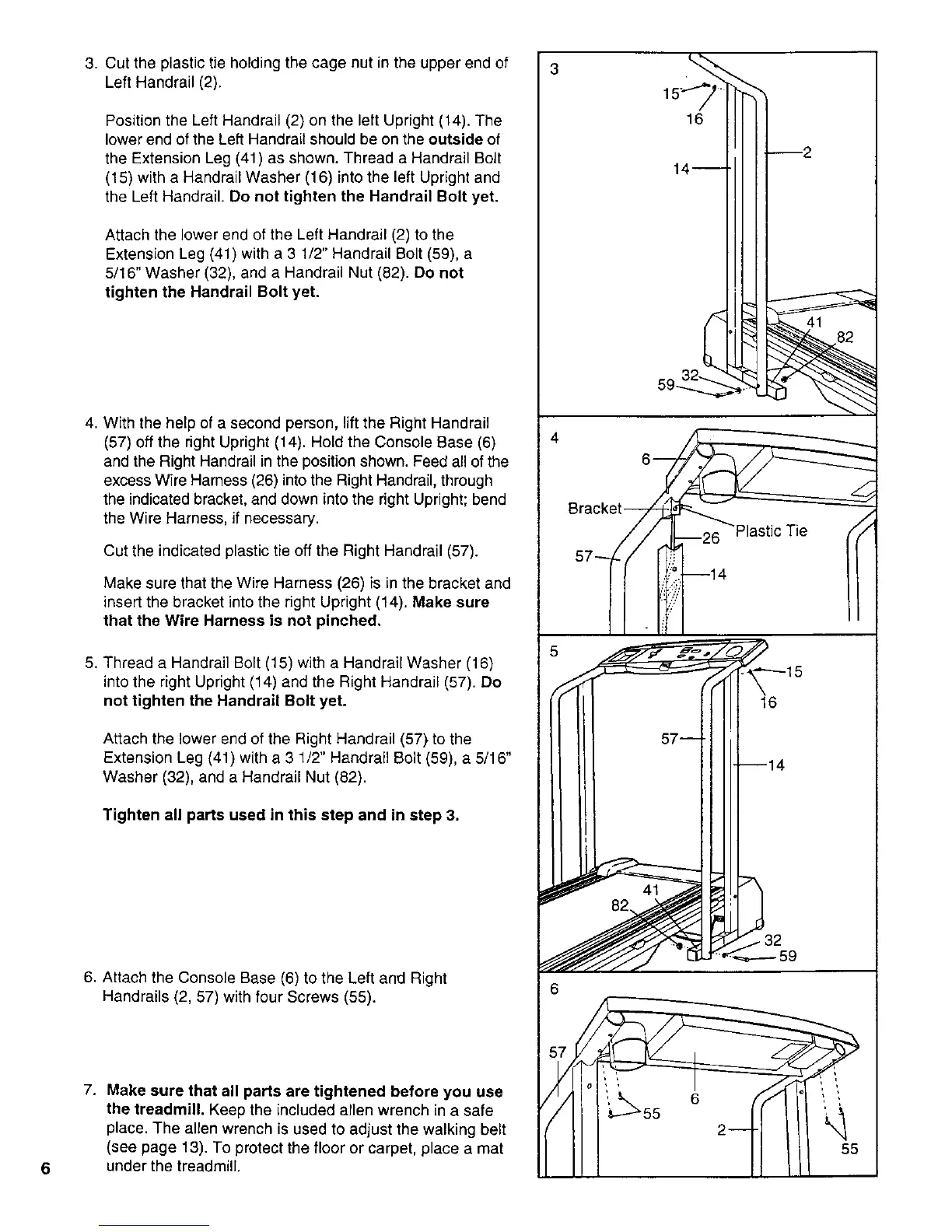

Cut the plastic tie holding the cage nut in the upper end of
Left Handrail (2).
Position the Left Handrail (2) on the left Upright (14). The
lower end of the Left Handrail should be on the outside of
the Extension Leg (41) as shown. Thread a Handrail Bolt
(15) with a Handrail Washer (16) into the left Upright and
the Left Handrail. Do not tighten the Handrail Bolt yet.
Attach the lower end of the Left Handrail (2) to the
Extension Leg (41) with a 3 1/2" Handrail Bolt (59), a
5/16" Washer (32), and a Handrail Nut (82). Do not
tighten the Handrail Bolt yet.
4,
5.
With the help of a second person, lift the Right Handrail
(57) off the right Upright (14). Hold the Console Base (6)
and the Right Handrail in the position shown. Feed all of the
excess Wire Harness (26) into the Right Handrail, through
the indicated bracket, and down into the right Upright; bend
the Wire Harness, if necessary.
Cut the indicated plastic tie off the Right Handrail (57).
Make sure that the Wire Harness (26) is in the bracket and
insert the bracket into the right Upright (14). Make sure
that the Wire Harness is not pinched.
Thread a Handrail Bolt (15) with a Handrail Washer (16)
into the right Upright (14) and the Right Handrail (57). Do
not tighten the Handrail Bolt yet.
Attach the lower end of the Right Handrail (57)-to the
Extension Leg (41) with a 3 1/2" Handrail Bolt (59), a 5/16"
Washer (32), and a Handrail Nut (62).
Tighten all parts used in this step and in step 3.
6. Attach the Console Base (6) to the Left and Right
Handrails (2, 57) with four Screws (55).
7. Make sure that all parts are tightened before you use
the treadmill. Keep the included allen wrench in a safe
place. The allen wrench is used to adjust the walking belt
(see page 13). To protect the floor or carpet, place a mat
under the treadmill.
